ICP DAS USA NSM-208PSE-M12 Quick Start Manual

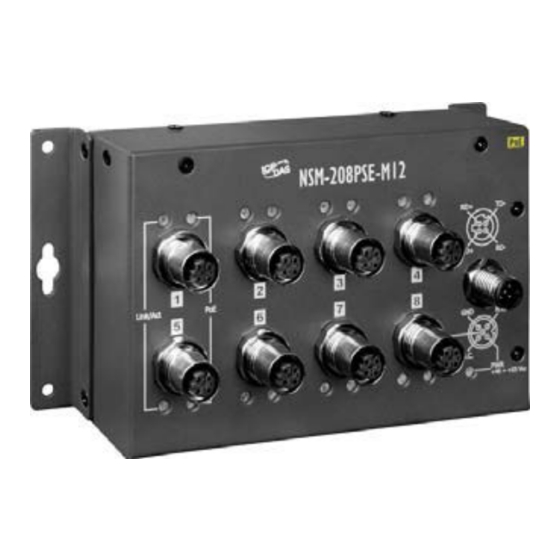

NSM-208PSE-M12
EN50155 8-port M12 Unmanaged PoE Ethernet
Switch
Quick Start Guide
Product Website:
http://www.icpdas-usa.com/nsm_208_m12.html

1. Introduction

The NSM-208PSE-M12 is designed for industrial applications in harsh
environments. The M12 connectors ensure tight, robust connections, and
guarantee reliable operation, even for applications that are subject to high
vibration and shock.
The NSM-208PSE-M12 PoE switch provides 8 fast Ethernet M12 ports with
8 IEEE 802.3af compliant PoE ports. The switch is classified as power
source equipment (PSE) and provides up to 15.4 W of power per port. The
Ethernet switch supports IEEE 802.3/802.3u/802/3x with 10/100M, full/half-
duplex, MDI/MDI-X auto-sensing, and provides an economical solution for
your industrial Ethernet network.
NSM-208PSE-M12 8-port M12 Unmanaged PoE Ethernet Switch - QuickStart (Jun/2018)
ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1
