NS-205
5-Port Industrial 10/100 Mbps Ethernet Switch
Quick Start Guide
Product Website:
http://www.icpdas-usa.com/ns_205_ethernet_switch.html
1. Introduction
The NS-205 has 5 Ethernet Switching ports that support 10/100Base-T(X),
with a 10/100M auto-negotiation feature and auto MDI/MDI-X function. It
can connect 5 workstations and automatically switches the transmission
speed (10 Mbps or 100 Mbps) for corresponding connections. The flow
control mechanism is also negotiated. LEDs embedded in RJ-45 jacks
make for easy monitoring. Port connectors are shielded RJ-45. A power
source for +10 ~ +30VDC is required.

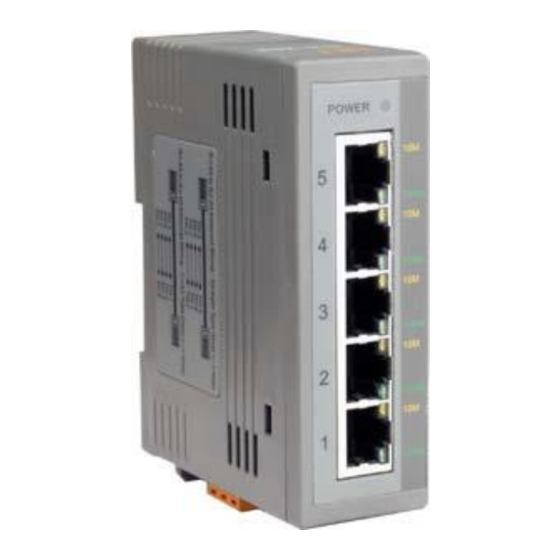

Figure 1-1 NS-205
5-Port Switch
NS-205
- QuickStart (Feb/2016)
ICP DAS USA, Inc. |
www.icpdas-usa.com
| 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ICP DAS USA NS-205
Summary of Contents for ICP DAS USA NS-205
- Page 1 Product Website: http://www.icpdas-usa.com/ns_205_ethernet_switch.html 1. Introduction The NS-205 has 5 Ethernet Switching ports that support 10/100Base-T(X), with a 10/100M auto-negotiation feature and auto MDI/MDI-X function. It can connect 5 workstations and automatically switches the transmission speed (10 Mbps or 100 Mbps) for corresponding connections. The flow control mechanism is also negotiated.
- Page 2 Table 1 shows the LED indicator functions. The module includes an internal. 5-Port Switch NS-205 - QuickStart (Feb/2016) ICP DAS USA, Inc. | www.icpdas-usa.com | 1-310-517-9888 | 24309 Narbonne Ave. Suite 200. Lomita, CA 90717...
- Page 3 UTP and a crossover UTP cable: 4. Checking Power: Since the NS-205 consumes 2.4W, ensure that your power supply is able to meet this demand. The Input voltage range is +10~+30VDC. External power supply is connected using the removable terminal block as shown below:...
