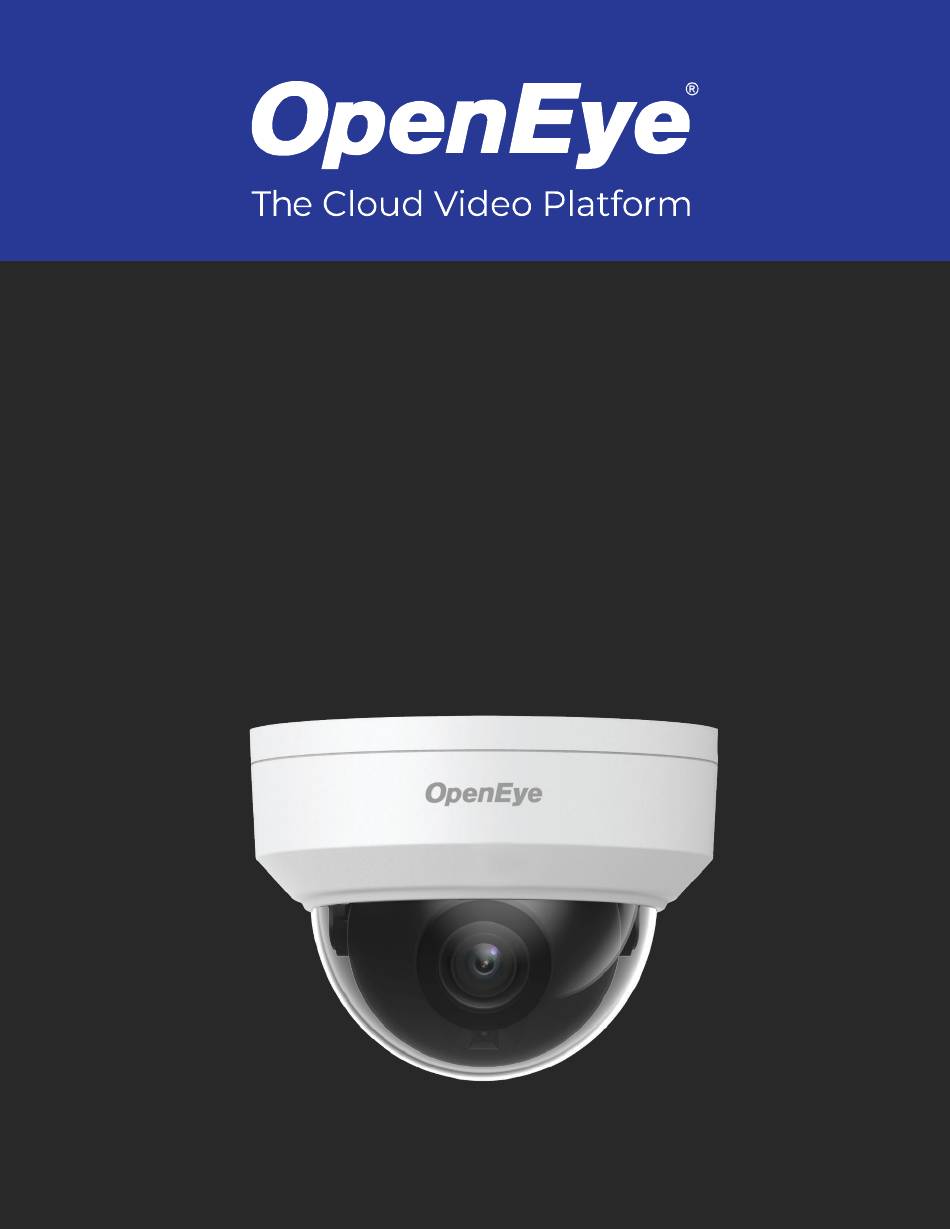

- Page 1 2MP OUTDOOR MINI DOME HARDWARE MANUAL...
- Page 2 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with recipient. In no event shall OPENEYE be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever (including without...
- Page 3 Important Safeguards Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save these instructions for future reference. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty. Installation Do not place or mount this product in or on an unstable or improperly supported location.
- Page 4 Installation and Storage Do not install the camera in areas of extreme temperatures in excess of the allowable range; install the camera in areas with temperatures within the camera’s operating temperature, including the following: -31°F ~ 140°F (-35° ~ 60 °C) Avoid installing in humid or dusty places.
- Page 5 Warning DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Caution C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
-
Page 6: Table Of Contents
Table of Contents Introduction ......................... 8 Overview ................................8 Product Features ..........................8 Getting Started ......................9 Box Contents ..............................9 Camera Overview ............................10 Camera Dimensions ........................... 10 Connections ............................11 Power Connection ............................12 Resetting the Camera ........................... 12 NETWORK CAMERA MANAGER ................. - Page 7 Maintenance ............................42 Time ..............................42 Maintenance ............................43 37588AC...
-
Page 8: Introduction

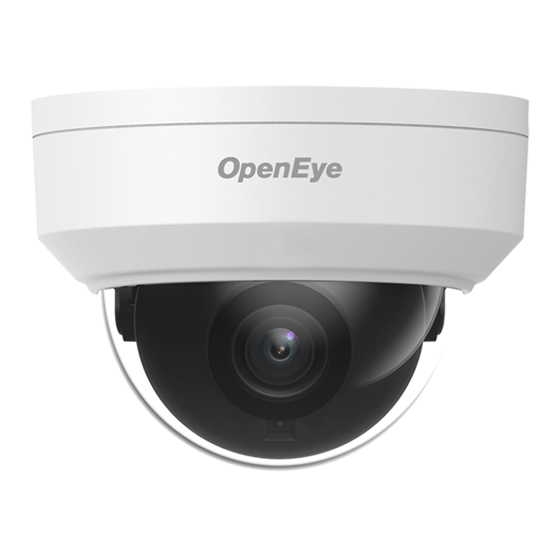

Introduction OVERVIEW The OE-C1012D2 is a compact outdoor IP mini dome with crystal clear 2MP resolution, true WDR, and smart video compression for improved streaming performance and recording retention. With a vandal resistant IK10 housing the OE-1012D2 is suitable for installation on low ceilings and in public spaces. -
Page 9: Getting Started
BOX CONTENTS Before proceeding, please confirm that the box contains the items listed here. Please contact your dealer for assistance if any item is missing or has defects. OE-C1012D2 Dome Camera Self-tapping crews and Plastic Anchors x 3 Mounting Template... -
Page 10: Camera Overview
CAMERA OVERVIEW CAMERA DIMENSIONS... -
Page 11: Connections
CONNECTIONS RJ45 For connector and PoE connections Power (12vDC)* Power connection Grey Audio Out Purple Ground Audio I/O Green Audio In Brown Ground Yellow Alarm Out + White Alarm Out - Alarm I/O Orange Alarm Input Blue Ground To restore the camera to factory defaults: 1. -
Page 12: Power Connection
Note OpenEye recommends against using more than one power source at a time. Do not use a PoE power source when providing the camera with 12vDC power. If using Power over Ethernet (PoE), make sure Power Sourcing Equipment (PSE) is in use in the network. -
Page 13: Network Camera Manager
NETWORK CAMERA MANAGER OpenEye Network Camera Manager (NCM) is a software tool that allows you to quickly and easily connect and configure your OpenEye IP Cameras. This software allows you to apply the camera password, assign IP addresses, configure video settings, and update firmware on multiple cameras at once. -
Page 14: Username And Password
The admin user password can be set using the following methods: 1. OpenEye recorders running Apex 2.1 or newer will automatically set a new unique password Connected to an M-Series recorder with a built in PoE switch. -
Page 15: Live View
Live View The camera displays a live view using the MJPEG stream for setup purposes. Proportional – Select the image ratio for the live preview image (Original, Stretch, Scale) Setup – Go to the Setup tab to access the camera menus Logout –... -
Page 16: Setup & Configuration
SETUP & CONFIGURATION BASIC CAMERA SETTINGS Basic Information The Basic Information tab displays the product model, firmware, network, and MAC address for the connected camera, along with the current camera Status. The nested Image, Video, Network, and Time tabs are shortcuts to the more advanced menu options further down the Setup list. -
Page 17: Network Settings
NETWORK SETTINGS Network The Network tab allows you to configure the connected camera network settings. DHCP IP Address The default static IP address of the camera is 192.168.51.2, and the default subnet mask is 255.255.255.0. DHCP is turned on by default. If a DHCP server is used in the network, the IP address of your camera may be assigned dynamically. -
Page 18: Port
Port HTTP Port – Configure your relevant port number. Note If the HTTP port number has been occupied already, a “Port conflicts” message will display. Ports 23, 81, 82, 85, 3260, and 49152 are occupied by default. HTTPS Port – The default HTTPS Port is 443; setting range: 1024 ~65535. RTSP Port –... -
Page 19: Ddns
DDNS 1. Enable DDNS Service. 2. Select a DDNS Type. 3. Enter Server Address, Domain Name, Username and Password. 4. Save 37588AC... -
Page 20: Ftp
Use FTP (file transfer protocol) to upload snapshots from network cameras to a specified server. To configure FTP: 1. Set the Server IP address and Port No. for the FTP server, Username and Password used to upload images to the FTP server, select Upload Images, Overwrite Storage and set Overwrite At (threshold for overwriting images). -
Page 21: Email
Email The camera can send an e-mail via Simple Mail Transfer Protocol (SMTP) when a variety of events occur. Two sets of SMTP accounts can be configured. Each set includes SMTP Server, Account Name, Password and E-mail Address settings. For SMTP server, contact your network service provider for more specific information. -
Page 22: Streaming Settings
STREAMING SETTINGS Video The video settings menu configures the camera’s video settings, including Resolution, Frame Rate, Bit Rate, and the Image Quality. To configure camera streams: Use the dropdown menus to configure the Video Compression, Resolution, Frame Rate, Bitrate Type, Smart Encoding, and GOP. -
Page 23: Stream Urls / Rtsp
Stream URLs / RTSP It is possible to connect to OpenEye IP cameras using third party software like VLC media player. To connect some types of software will need to know the stream URL. All OpenEye IP cameras can deliver two RTSP streams. -
Page 24: Snapshot
Snapshot The Snapshot tab is used to configure the settings for timed or continual snapshots. To configure Snapshots: 1. Use the dropdowns to select the desired Resolution, Snapshot Interval, and the Number of Snapshots. 2. If you desire Scheduled Snapshots, select Schedule Snapshot Mode, and designate snapshot times. -
Page 25: Audio
Audio The Audio tab allows you to configure the audio encoding settings for your camera. To configure Audio setup: 1. Configure the Audio settings as desired. 2. Save Parameter Description Audio Input No audio data will be encoded when Off is selected. Access Mode Line/Mic Two options: G.711U, G.711A. -
Page 26: Region Of Interest (Roi)
Region of Interest (ROI) When Region of Interest (ROI) is enabled, the system ensures the image quality for the ROI first if the bit rate is insufficient. To enable ROI: 1. Click on the Area box. 2. Arrange the ROI square as desired in the camera image. Click and drag to move the square and use the corner markers to expand the square. -
Page 27: Media Stream
Media Stream You can display the established media streams from a camera. You can also set the camera to transmit code streams by the UDP or TCP protocol to a specified IP address and port number. Note Changes to the media stream will take effect after the camera has been restarted. To configure media streams: 1. -
Page 28: Picture Settings
PICTURE SETTINGS Image The Image tab allows you to configure the setting for the camera image as seen in Live View. When adjusting your image settings, the changes will be saved automatically and will display in the camera image preview window. Image Enhancement Use the sliding scales to adjust the Image settings or set a numeric value in the value box. - Page 29 Parameter Description Automatic: The camera automatically adjusts exposure according to the • environment. • Custom: The user sets exposure as needed. Indoor 50Hz: Reduce stripes by limiting shutter frequency. • Exposure Mode Indoor 60Hz: Reduce stripes by limiting shutter frequency. •...
- Page 30 Enable WDR to distinguish the bright and dark areas in the same image. Note: You can set this parameter only when Exposure Mode is neither Customize nor Manual and when Image Stabilizer is disabled. After enabling the WDR function, you can improve the image by adjusting the WDR level.
- Page 31 Parameter Description Adjust the red or blue offset of the image: Auto/Auto2: The camera adjusts the red and blue offset automatically according to the light condition (the color tends to be blue). If the images are still unnaturally red or blue in Auto mode, please try Auto2.
-
Page 32: On-Screen Display
On-Screen Display Up to 4 on-screen displays (OSD) can be configured for the camera image. To add an on-screen display: 1. Select the position and content of the OSD. a. Position: Click the desired box in the Live View area. After the cursor shape is changed, click and hold the button to move the box to the desired position. -
Page 33: Privacy Mask
Privacy Mask Add a privacy mask to your camera image to hide desired areas from view. To add a privacy mask: 1. Click Add. 2. Click and drag the newly generated mask square to the desired location on the camera image. Arrange and resize the mask as needed. -
Page 34: Events Settings
EVENTS SETTINGS Alarms Motion Detection Motion detection is used to detect motion in a specified area during a period of time. The use of motion detection requires setting a detection area, detection sensitivity, object size, and history. When these requirements are met, the motion detection alarm will activate. To configure Motion Detection: 1. - Page 35 Trigger Actions Alarm Output - This setting is the alarm output interface linked to motion detection alarm. Note When an alarm is reported, the camera triggers alarm output to trigger actions by a third- party device. Record Video to SD Card - With Record Video to SD Card selected, the camera will automatically upload video to the microSD card when an alarm is triggered.
- Page 36 3. Set actions to be triggered by an input alarm and the plan. For the detailed steps, see the descriptions of triggered actions in Configuring Motion Detection Alarm. 4. Save...
- Page 37 Alarm Output After an alarm output is triggered by a motion detection alarm, audio alarm, or other third-party configured alarm, the camera can trigger an alarm output to a third-party device. To configure Alarm Output: 1. Select Alarm and the Alarm Name. 2.
-
Page 38: Storage Settings
STORAGE SETTINGS Storage OpenEye IP cameras include an integrated microSD™ card (Memory Card) slot that can be used to record video or images. The card slot is compatible with a microSD™ card up to 512GB. Note Formatting the microSD card causes the camera to restart... -
Page 39: Jpeg Download
JPEG Download Use Export Images to download snapshots taken by the camera. Refresh the list to update Photo List or Delete to delete images from the selected folder. Recording Download Recording download page allows you to search a selected date range for video and snapshots recorded to the microSD card. -
Page 40: Security Settings
SECURITY SETTINGS User There are two types of users: Administrator – referred to as “admin” in this manual. The default name of the administrator is admin, which cannot be modified. Admin has full permission and can manage all users and devices. -
Page 41: Network Security
Network Security You can use the Network Security tab to set a secure channel for data transmission. To configure Network Security: 1. Enable HTTPS by selecting On or click Browse to upload your custom SSL certificate if desired. 2. Save RTSP and HTTP Authentication Use the Authentication dropdown menus to select the appropriate mode, and then click Save. -
Page 42: Watermark
Watermark Use the Video Watermark to encrypt the camera image and protect the video from being deleted or modified. 1. Select On to enable watermark, and input Watermark Content. 2. Save MAINTENANCE Time By default, the time setting Sync Mode will be set to Sync with NTP Server. Manually Setting or Synchronizing the System Time 1. - Page 43 Synchronizing with the NTP Server 1. Set Sync Mode to Sync with NTP Server, and then set the NTP Server Address, Port and Update Interval(s). 2. Click Save. The camera will periodically synchronize time with the NTP server. Setting the DST 1.
- Page 44 All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof.
