Summary of Contents for OpenEye OE-C7624-AWR REVB
- Page 1 4MP IP Dome Camera User Manual Camera OE-C7624-AWR REVB...
- Page 2 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with recipient. In no event shall OPENEYE be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever (including without...
- Page 3 Important Safeguards 1. Read Instructions Read all of the safety and operating instructions before using the product. 2. Retain Instructions Save these instructions for future reference. 3. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty.
- Page 4 Disposal and Recycling Information When this product has reached the end of its useful life, please dispose of it according to your local environmental laws and guidelines. Installation and Storage Do not install the camera in areas of extreme temperatures in excess of the allowable range; •...
- Page 5 Warning DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. THE CAMERA IS TO BE CONNECTED ONLY TO POE NETWORKS WITHOUT ROUTING TO THE OUTSIDE PLANT. Caution Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.
-
Page 6: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ......................6 Overview ..............................6 Product Features ..........................6 GETTING STARTED ...................... 7 Box Contents ............................7 Camera Overview ............................. 8 Connections (Dongle) ........................... 9 Network Camera Manager ......................... 10 Launching Network Camera Manager ....................10 Camera Configuration ........................ -
Page 7: Introduction

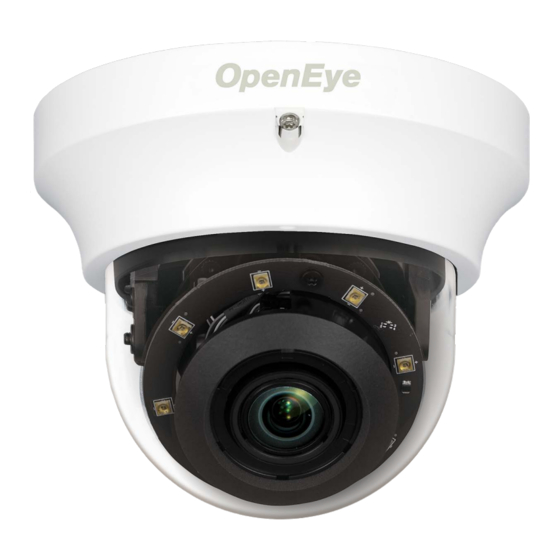

INTRODUCTION OVERVIEW The OE-C7624-AWR REVB is an IP dome camera, with a maximum resolution of 4MP. This camera uses True WDR to improve recording quality in high and low light. The OE-C7624-AWR REVB comes with a motorized 2.7-12mm digital zoom lens, with autofocus to speed up installation and improve image quality. -
Page 8: Getting Started
GETTING STARTED BOX CONTENTS Before proceeding, please check that the box contains the items listed here. Contact your dealer for assistance if any item is missing or has defects. OE-C7624-AWR REVB IP Dome 2-Pin Power Terminal Block Camera Security Torx Tool... -
Page 9: Camera Overview
CAMERA OVERVIEW Before installing or connecting the dome camera, please refer to this section and complete preparations for dome setup and all switch settings. 5.26” (133.8mm) Restore Default Settings Connection Definition To restore the camera to factory defaults: 1. Disconnect power for 30 seconds. Reset Button 2. -
Page 10: Connections (Dongle)
CONNECTIONS (DONGLE) Connection Definition RJ-45 For network and PoE connections 12vDC / 24vAC 1 Power (12vDC / Power connection 24vAC) GND / 24vAC 2 Pink Line Out Audio I/O Two-way audio transmission Green Line In For analog video output Alarm In - Alarm In + Alarm I/O (4-Pin Terminal Block) -
Page 11: Network Camera Manager
NETWORK CAMERA MANAGER OpenEye Network Camera Manager (NCM) is a software tool that allows you to quickly and easily connect and configure your OpenEye IP Cameras. This software allows you to assign IP addresses, configure video settings, and update firmware on multiple cameras at once. -
Page 12: Viewer Tabs
Enter the Username and Password for the camera. The username and password are case sensitive. Username and Password *OpenEye IP cameras ship without a default password. The admin user password can be set using the following methods: 1. Network Camera Manager 2. -
Page 13: Live
LIVE Snapshot – Click the button, and a JPEG snapshot will automatically be saved in the appointed place. The default location is: C:\ Full Screen – This will display the live feed in full screen. Microphone – PC audio to camera, enables audio through an audio out on the camera. Live Audio –... -
Page 14: Setup
SETUP The Setup menu includes System Settings, Picture Setup, and Streaming Settings. Note The Setup menu displays limited setup options. For a complete list of setup options, see the Advanced section. SYSTEM SETTING Camera Name Host Name – The Host Name is used to identify the camera on your system. If camera-based Motion Detection is enabled and is set to send alarm message by Mail/FTP, the host name entered here will display in the alarm message. -
Page 15: Ip Address
Every network device has a unique Media Access Control (MAC) address that can be used for identification. The MAC address is located on the bottom of each camera, and on the box label (OpenEye Network Camera Manager also displays the MAC address for identification). Record your camera’s MAC address for identification in the future. - Page 16 4. Click Apply to confirm the new setting. When using static IP address to log in to the IP Camera, you can access it either through OpenEye IP Finder software or type the IP address directly in the address bar of your Internet Explorer.
-
Page 17: File Location
Use the Camera Tab section to modify picture settings for the camera. The sample image will change as you modify the picture settings. Note These settings can drastically affect the camera image. OpenEye suggests that these settings are only modified by a CCTV professional, or at the instruction or a technical support representative. - Page 18 Sharpness – Increasing the sharpness level can make the image looked sharper; it especially enhances an object’s edge. The value of sharpness is adjustable from 0 ~ +10 (sharpest). Contrast– Adjust the contrast value from -6 to 19. Saturation– Adjust the color saturation from -6 to 19 (most saturation). Hue–...
- Page 19 Add Detection Area 1. Use the Motion Detection dropdown to select a motion detection preset. 2. Select the Enable brush check box under Motion Region Paint and then use the cursor on the live view pane to highlight the desired motion detection area. 3.
-
Page 20: Streaming Settings
STREAMING SETTINGS VIDEO RESOLUTION The camera allows you to configure each of the streams independently. Encoding – enable Stream 2~Stream 4 encoding. Encode Type – select the preferred encode type (H.265, H.264, MJPEG). Resolution – set the resolution of stream. Rate Control –... -
Page 21: Stream Urls / Rtsp
It is possible to connect to OpenEye IP cameras using third party software like VLC media player. To connect some types of software will need to know the stream URL. All OpenEye IP cameras are capable of delivering two RTSP streams, as well as streaming MJPEG over HTTP. -
Page 22: Advanced
ADVANCED SYSTEM SETTING NETWORK SETUP OpenEye IP cameras are set to DHCP by default. If a DHCP server is not detected after 4 minutes, the camera will default to IP address 192.168.51.2. If you are not using a DHCP server, NCM will allow you to batch configure a static IP address. -
Page 23: Network Advanced
DDNS DDNS (Dynamic Domain Name Service) is a service that allows a connection to an IP address using a hostname (URL) address instead of a numeric IP address. Most ISPs use Dynamic IP Addressing that frequently changes the public IP address of your internet connection; this means that when connecting to the camera over the internet, you need to know if your IP address has changed. -
Page 24: Alarm Application
IEEE 802.1XSEAP-TLS This is a well-supported security protocol commonly used by wireless vendors. This security method requires a valid CA certification and key. When properly configured, all communication between the client (usually a recorder) and the camera is encrypted. ALARM APPLICATION The alarms menu is where alarm connections are configured. -
Page 25: Tampering And Network Failure Detection
TAMPERING AND NETWORK FAILURE DETECTION Tampering Alarm – Turn the Tampering Alarm On, Off, or On By Schedule. Tampering Duration – Designate the amount of time (in seconds) that tampering must occur in order for a Tampering Alarm to activate. Triggered Action –... -
Page 26: Recording Schedule
RECORDING SCHEDULE The recording schedule allows you to set up scheduled recording to Network Sharing. Recording This section allows you to define recording schedules for the camera. For continuous recording: 1. Select type of Recording Storage. Network Share: save recorded data to the designated Network Share location. •... - Page 27 To set up scheduled recording: 1. Select type of Recording Storage. 2. Select Only during time frame as the type of Recording Schedule. 3. Use the appropriate check box to designate a day of the week. 4. Type a Start Time and Duration. 5.
-
Page 28: Maintenance
Interval Recording Interval recording allows you to record in consistent intervals and save the files for later viewing. 1. Turn Interval Recording On or Off. 2. Designate the Time Interval (seconds). 3. Designate the Trigger Action using the appropriate checkbox, and then use the dropdown menus to further manage the Trigger Action. -
Page 29: Software
Factory Default Full Restore - restores all settings to default, including network settings. Partial Restore - restores all settings to default, excluding network settings. System reboot is also available; this reboots the camera with no changes to settings. Note Full or Partial Restore will require NCM to find the desired camera and set the Admin password. -
Page 30: Picture Setting
PICTURE SETTING CAMERA SETUP These are enhanced functions to set Camera Settings under the Advanced section. IR Function – Allows you to set the Day / Night IR function of the camera. • Day / Night Function – Set the Day / Night function to automatically transition or be permanently set to Day mode or Night mode. -
Page 31: Web Viewer
WEB VIEWER Select the desired Video OCX protocol setting to transmit video over the network RTP over UDP – Provides an up-to-date video stream although some images may be dropped. Suitable for both an intranet and the Internet where there is no NAT firewall. RTP over RTSP (TCP) –... -
Page 32: Streaming Setting
STREAMING SETTING AUDIO Transmission Mode: Full-duplex (Talk and list simultaneously) Half-duplex (Talk or listen, not at the same time) Simplex (Talk only) Simplex (Listen Only) Disable Server Gain Setting: Input gain – sets the amplification that the camera applies to the incoming audio before transmitting. - Page 33 All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof.
