Summary of Contents for OpenEye OE-C7163

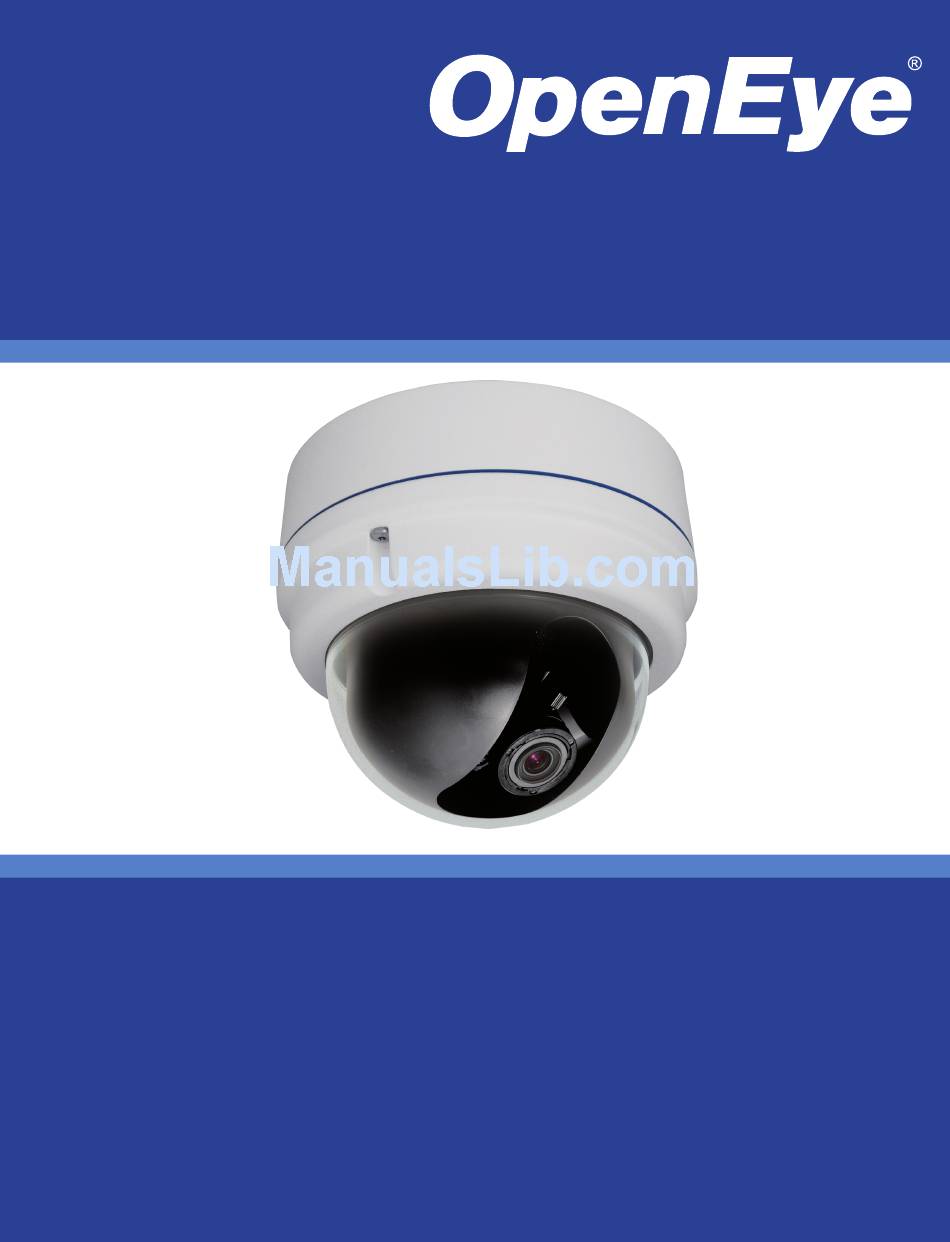

- Page 1 3MP Outdoor HD IP Dome Camera User Manual Camera Accessories OE-C7163 CA-510G CA-510PML OE-7163A CA-510W CA-510PMS OE-7163R CA-510C CA-510PA25 OE-7163AR CA-510P25 CA-510PA50 CA-510P50 www.openeye.net...
- Page 2 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with recipient. In no event shall OPENEYE be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever...
-
Page 3: Important Safeguards
Important Safeguards Read Instructions Read all of the safety and operating instructions before using the product. Retain Instructions Save these instructions for future reference. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty. Installation Do not place or mount this product in or on an unstable or improperly supported location. - Page 4 Installation and Storage Install electricity wiring carefully. Please note that input electricity to the unit is at tolerance of DC 12V/AC 24V ± 10%. The camera is capable of surge protection; ensure AC power model unit is grounded appropriately against damage by heavy current or electric shock.
- Page 5 Warning DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Caution C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
-
Page 6: Table Of Contents
Introduction .................... 10 Overview ........................10 Product Features ...................... 10 Getting Started ..................11 Box Contents ........................ 11 Camera Overview ......................12 Dimensions ....................... 12 Connections ......................13 Installation ....................14 Power and Ethernet Connection ................... 14 Power Connection ....................14 Ethernet Cable Connection .................. - Page 7 Camera Name ......................31 IP Address ........................ 31 Get IP an Address Automatically (DHCP) ............32 Use Static IP Address ..................32 IPv6 Address Configuration ................33 User Setup ........................ 33 Admin Password ....................33 Add User ......................33 Delete User ......................33 Modify User ......................
- Page 8 UPnP (Universal Plug N’ Play) ................43 Network Security ...................... 44 HTTP ........................44 IP Filtering ......................44 IEEE 802.1XSEAP-TLS ..................44 Alarm Application ...................... 45 Tampering and Network Failure Detection ............... 46 Mail, HTTP and FTP Setup ..................47 SD Card ........................
-
Page 9: Introduction
With features such as 3 megapixel resolution and a tamper resistant design, the OE-C7163 camera is a smart choice for outdoor surveillance applications. The OE-C7163-A model offers the same features with the addition of an auto-focus lens making installation quick and easy. -
Page 10: Getting Started
Before proceeding, please check that the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. OE-C7163 Camera Power Cable Self Tapping Screws... -
Page 11: Camera Overview
Before installing or connecting the dome camera, please refer to this section and complete preparations for dome setup and all switch settings. Dimensions Diameter – 151 mm (5.9 inches) Height – 130 mm (5.12 inches) -
Page 12: Connections
Connections Item Definition Reset Restore Factory Default Settings Analog Video Output Alarm I/O Alarm Input - Alarm Input + Alarm Output - Alarm Output + Audio I/O Output (L) Output (R) Ground Input Power 12vDV / 24vAC Power (+) Power (-) RJ45 10/100 Ethernet PoE 31186AE... -
Page 13: Installation
When using 12vDC or 24vAC power, refer to the pin definition table in the Camera Overview > Connections section for the proper 2-wire connection. OpenEye recommends against using more than one power source at a time. Do not use a PoE power source when providing the camera with 12vDC or 24vAC power. -
Page 14: Ceiling Installation
The IP Dome Camera can be installed directly on a wall or ceiling. The wall or ceiling must have enough strength to support the IP Dome Camera. Use the supplied Torx tool to unscrew the two Torx screws on the side of the dome cover and remove the dome cover. - Page 15 Unscrew the Torx screw on the camera module, as indicated in the figure, with the supplied Torx tool. Press the sides of the snap-on module, as indicated in the figure, and detach it from the Dome Camera’s housing. Mark the positions of the four screw holes on the base of the Dome Camera at the chosen installation location.
- Page 16 Fasten the camera housing to the ceiling with the supplies screws Thread the power and Ethernet cables through the side conduit entry or the back conduit entry. The power cable is omitted if using PoE. 10. Connect the power and Ethernet connectors on the camera with their respective cables.
- Page 17 Security Torx to secure the camera module. The terminal blocks should face the side conduit entry, as shown in the figure. 12. Use the OpenEye IP Finder software to locate the camera on the network and complete configuration of the camera.
- Page 18 14. Adjust the camera to the desired angle. Pan adjustment range is nearly 360°; rotation angle range approaches to 270°. Tilt is adjustable between ﹣10° ~ 90°. Pan Adjustment Tilt Adjustment Adjust the lens carefully within the limits mentioned above, or the cables underneath will be damaged.
- Page 19 16. Replace the dome cover, aligning the arrow mark on the dome cover with the one on the housing. 17. Screw the two Torx screws on the side of the dome cover tightly to fasten the dome cover.
-
Page 20: Electrical Box Installation
Before installing the camera in a 4S Electrical Box, unscrew and open the dome cover with the Security Torx. Run the wires (Ethernet and power) through the wall to the 4S box. The Power Cable is omitted if using PoE. Press both sides of the Inner Cover and remove it from the Dome Camera. - Page 21 Unscrew the Torx screw on the camera module, as indicated in the figure, with the supplied Torx tool. Press the sides of the snap-on module, as indicated in the figure, and detach it from the Dome Camera’s housing.
- Page 22 Attach the snap-on module to the camera housing, and screw the module screw tightly with the Security Torx to secure the camera module. Use the OpenEye IP Finder software to locate the camera on the network and complete configuration of the camera.
-
Page 23: Network Camera Manager Software
IP addresses, manage users, configure video settings, and update firmware on multiple cameras at once. The Network Camera Manager software is pre-installed on all OpenEye Recorders, and included on the software CD with all OpenEye IP cameras. It is also available for download on the OpenEye website. Installation... -
Page 24: Camera Configuration
Device Addressing The functions on the Device Addressing tab allow you to find, configure, and view network cameras. Click Find Devices on the Device Addressing tab. To narrow your search by Camera Model, Project, or Camera Name, select your desired criteria from the appropriate lists. 31186AE... -
Page 25: Viewing A Network Camera
Enter the Username and Password for the camera. The username and password are case sensitive. It is strongly recommended that the password be changed after the initial setup to prevent unauthorized access. The default username and password for OpenEye IP cameras are as follows. Username – admin Password – 1234 The viewer software is now opened in Internet Explorer. -
Page 26: Setup & Configuration
Connecting to the Camera Locate the camera on the IP Finder list. Double-click the camera to open the Viewer software in your web browser. Click Browse in the pop-up window. Log in to the camera with the appropriate User Name and Password. The default User name is admin and the default Password is1234. -
Page 27: Connecting Over The Internet
There are some challenges with connecting to OpenEye IP cameras over WAN (internet) connections because the camera streams video over RTSP. RTSP is an excellent protocol for media and is now used on many IP cameras (including OpenEye) as the default streaming option. -
Page 28: Viewer Software
To access the setup menu, you need to install the viewer software on your PC or recorder. The viewer software will install automatically the first time you connect to the camera. If your internet browser doesn’t install the viewer software, check the security settings or ActiveX controls and plug-in settings. -
Page 29: Live
Full Screen – This will display the live feed in full screen. Snapshot – Click the button, and a JPEG snapshot will automatically be saved in the appointed place. The default location is: C:\. If you are using Windows Vista or 7, you will need to change the Snapshot location. -
Page 30: System Setting
The Setup menu includes System Settings, Picture Setup, and Streaming Settings. The Setup menu displays limited setup options. For a complete list of setup options, see the Advanced section. Camera Name Host Name – The Host Name is used to identify the camera on your system. -
Page 31: Get Ip An Address Automatically (Dhcp)
Click Apply to confirm the new setting. When using static IP address to log in to the IP Camera, you can access it either through OpenEye IP Finder software or type the IP address directly in the address bar of your Internet Explorer. -
Page 32: Ipv6 Address Configuration
IPv6 Address Configuration To enable IPv6 select Enable IPv6 and click Save. See your network administrator if you are unsure of your network configuration. User Setup Manage the password for the Administrator account. To change the administrator password: Type a new Administrator Password, and then type again to confirm the password. -
Page 33: Modify User
Select the user name on the User Name list. Click Edit. In the resulting window, modify the Password and/or feature permissions. Click Save. For security reasons, every time the user properties are opened the access check boxes are automatically cleared. Make sure you select any user access options each time you edit the user properties. -
Page 34: Picture Setup
Use the Camera Tab section to modify picture settings for the camera. The sample image will change as you modify the picture settings. These settings can drastically affect the camera image. OpenEye suggests that these settings are only modified by a CCTV professional, or at the instruction or a technical support representative. -
Page 35: Picture Adjustment
Each of the Picture Adjustment settings is set to the recommended default. Brightness – Adjust the image’s brightness on the camera. The Backlight value is adjustable from 0 (dim) ~ +20 (brightest). Sharpness – Increasing the sharpness level can make the image looked sharper;... -
Page 36: Add Detection Window
Use the Motion Detection dropdown to select a motion detection preset. Click Add. The selected motion detection square will be red. Arrange and size the motion detection window as desired. Click Save. Click to select the desired motion detection window. Click Delete. -
Page 37: Streaming Settings
Video Resolution The camera provides eight codec options under video resolution (two single streaming options, two sets of dual streaming options, two sets of tri- streaming options, and two sets of quad-streaming options): H.264 Only MJPEG Only H.264 + H.264 ... -
Page 38: Video Orientation
OpenEye recommends setting the GOP to be approximately twice the frame rate (e.g.: if the frame rate is 10 IPS, then set the GOP to 20). ... -
Page 39: Video Frame Rate
Video Frame Rate Setting the camera to transmit fewer frames can save bandwidth. Use the Frame Rate Control screen to adjust the frame rate of each stream. Each of the MJPEG and H.264 streams can have a separate frame rate setting from 1 to 30 frames per second. -
Page 40: Video Compression
Video Compression You can select an MJPEG / H.264 compression mode on the video compression page appropriate for your application. You can also select to display compression inflation on the Live Screen. MJPEG compression settings include: High compression, low bitrate, low quality ... -
Page 41: Advanced
Network Setup The Network Setup settings will automatically be set at the recommended default after the camera connection is made. DDNS (Dynamic Domain Name Service) is a service that allows a connection to an IP address using a hostname (URL) address instead of a numeric IP address. Most Internet Service Providers use Dynamic IP Addressing that frequently changes the public IP address of your internet connection;... -
Page 42: Snmp Settings
With Simple Network Management Protocol (SNMP) enabled, the camera can be monitored and managed remotely with a network management system. Contact your network administrator if you are not familiar with SNMP setup. Enable UPnP – When enabled, the camera will appear in My Network Places on Windows computers running UPnP on the same network. -
Page 43: Network Security
Network Security The camera can send alarm messages to a specific Hypertext Transfer Protocol (HTTP) site when motion is detected or when the sensor input is activated. You can assign alarm messages to up to two HTTP sites. IP Filtering allows you limit access to your IP cameras by IP address. You can “Allow” or “Deny”... -
Page 44: Alarm Application
Alarm Application The alarms menu is where alarm connections are configured. Alarm Switch – Designate when the alarm will be active; Off, On, or By Schedule. Alarm Type – Designate if the alarm is normally open or normally closed. NOH –... -
Page 45: Tampering And Network Failure Detection
Tampering and Network Failure Detection Tampering Alarm – Turn the Tampering Alarm On, Off, or On By Schedule. Tampering Duration – Designate the amount of time (in seconds) that tampering must occur in order for a Tampering Alarm to activate. Triggered Action –... -
Page 46: Mail, Http And Ftp Setup
SD Card All OpenEye IP cameras include an integrated microSD™ card slot that can be used to record video or images. The card slot is compatible with a microSD™ card up to 16GB. Load Device Information – Displays the storage total size and free space information of the included microSD™... -
Page 47: Network Share
Network Share Network Share is a network protocol that runs a variety of different system platforms, allowing for file sharing between computers operating on Windows and computers operating on Unix. This serves as an additional storage type. Configuration requires the host IP address, share name, and credentials. Once configured, cameras can record events to the network share. -
Page 48: Recording Schedule
Recording Schedule The recording schedule allows you to set up scheduled recording to the microSD™ card or to Network Sharing. This section allows you to define recording schedules for the camera. For continuous recording: Select type of Recording Storage. microSD card™: save recorded data to the microSD™... - Page 49 This section allows you to establish schedules to use in other section. To create a schedule: Select a Schedule set (1-10). Check the desired week day check boxes. Select Day or Night. Designate a Start Time and Duration. Click Save.
-
Page 50: Interval Recording
Interval recording allows you to record in consistent intervals and save the files for later viewing. Turn Interval Recording On or Off. Designate the Time Interval (seconds). Designate the Trigger Action using the appropriate checkbox, and then use the dropdown menus to further manage the Trigger Action. Type a file name, and then choose how the file name is multiplied for multiple files. -
Page 51: Maintenance
Maintenance On the Maintenance page you can export the cameras current configuration, or import the configuration for a camera. Use the factory default page to reset the IP Camera to factory default settings if necessary. Do not import configuration files from different models of cameras. Export Configuration: Check the appropriate boxes for information that you want exported. -
Page 52: Software
Software Make sure the software upgrade file is available before starting the software upgrade. Click Browse and find the upgrade file. Do not change the file name, or the system will fail to find the file. Select the file name from the list under Step 2. Click Upgrade. -
Page 53: Streaming Setting
Audio Audio Input Grain – sets the amplification that the camera applies to the incoming audio before transmitting. Audio Output Delay – Sets a delay in the audio transmission. This is used when there is significant lag in video transmission to help sync the audio and video. Volume –... -
Page 54: Specifications
Model OE-C7163 OE-C7163-A OE-C7163-R OE-C7163-AR 1/2.8” CMOS Image Sensor IP Rating IP66 Type / Format H.264 / MJPEG Wide Dynamic Range Digital Wide Dynamic Range 0.5 LUX (Color) / 0.1 LUX (B&W) / 0 0.5 LUX (Color) / 0.1 LUX (B&W) -
Page 55: Ir Specifications
Model OE-C7163 OE-C7163-A OE-C7163-R OE-C7163-AR – IR LEDs 24 IR LEDs (850nm) – IR Range Up to 50 ft (15 m) Model OE-C7163 OE-C7163-A OE-C7163-R OE-C7163-AR Video Compression H.264 / MJPEG Multi Streaming H.264 + MJPEG, H.264+H.264 Audio In Audio Out... -
Page 56: Set Up Internet Security
If the installation of ActiveX Control is blocked, you will need to either set the Internet Security Level to the default setting, or change the ActiveX controls and plug-ins setting. Setting Internet Security Level to Default Open Internet Explorer. Click the Tools tab in the menu bar. Click Internet Options. -
Page 57: Adjusting Activex Controls And Plug-Ins
Adjusting ActiveX Controls and Plug-ins Open Internet Explorer. Click the Tools tab in the menu bar. Click Internet Options. Click Custom Level. The Security Settings window will pop up. Under ActiveX Controls and Plug Ins, set all items to Enable or Prompt. Items may vary according to your version of Internet Explorer. - Page 58 © 2015 OpenEye All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof.
