- Page 1 3MP Micro IP Dome Camera User Manual Camera OE-C6123-W2 OE-C6123-W3 OE-C6123-W6...
- Page 2 The information in this publication is provided “as is” without warranty of any kind. The entire risk arising out of the use of this information remains with recipient. In no event shall OPENEYE be liable for any direct, consequential, incidental, special, punitive, or other damages whatsoever (including without limitation,...
- Page 3 Important Safeguards 1. Read Instructions Read all of the safety and operating instructions before using the product. 2. Retain Instructions Save these instructions for future reference. 3. Attachments / Accessories Do not use attachments or accessories unless recommended by the appliance manufacturer as they may cause hazards, damage product and void warranty.
- Page 4 Installation and Storage • Do not install the camera in areas of extreme temperatures in excess of the allowable range. (-4 ~ 131 °F / -20 ~ 55 °C) • Avoid installing in humid or dusty places. The relative humidity must be below 90%. •...
- Page 5 Warning DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. Caution C A U T I O N RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
-
Page 6: Table Of Contents
TABLE OF CONTENTS Introduction ........................7 Overview ..............................7 Product Features ..........................7 Getting Started ......................8 Box Contents ............................8 Camera Overview ............................. 9 Camera Dimensions ..........................9 Connections ............................10 Network Camera manager Software ................12 Installation ............................... 12 Launching Network Camera Manager .................... - Page 7 SD Card .............................. 32 Network Share ............................ 33 Recording Schedule ........................... 34 Maintenance ............................37 Software.............................. 38 Picture Setting ............................38 Video Mask ............................38 Camera Setup ............................ 38 TV system ............................38 Hot Spot .............................. 39 Text Overlay ............................39 Streaming Setting ...........................
-
Page 8: Introduction

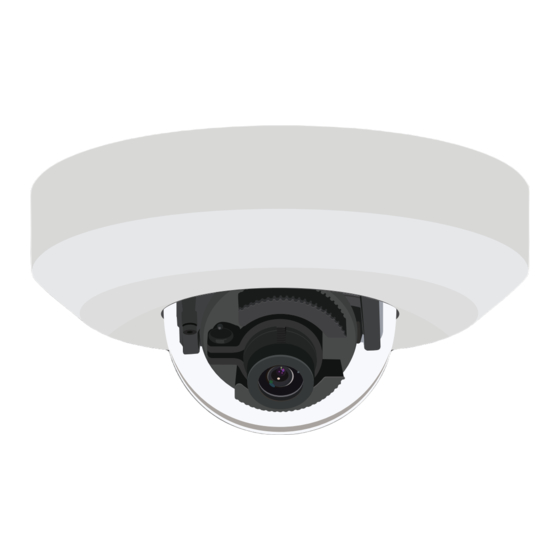

INTRODUCTION OVERVIEW The OE-C6123-W indoor IP micro dome from OpenEye provides superior video quality in a compact package. This camera is perfect for users that require a feature rich camera with a small foot print. Capture crystal clear pictures with a high resolution 3MP image sensor, and more detail in high contrast scenes with True WDR. -
Page 9: Getting Started
GETTING STARTED BOX CONTENTS Before proceeding, please check that the box contains the items listed here. If any item is missing or has defects, DO NOT install or operate the product and contact your dealer for assistance. OE-C6123-W IP Dome Camera Self-tapping crews and Plastic Anchors x 3 Power Cable... -
Page 10: Camera Overview
CAMERA OVERVIEW Before installing or connecting the dome camera, please refer to this section and complete preparations for dome setup and all switch settings. CAMERA DIMENSIONS Side Units: mm 34918AG... -
Page 11: Connections
CONNECTIONS Connection Definition RJ-45 For network and PoE connections 12vDC / 24vAC 1 Power (12vDC / Power connection 24vAC) GND / 24vAC 2 Press the reset button with a proper tool for at least 20 seconds to Default Button return the camera to factory defaults. Alarm Out + Alarm Out - Alarm connection... - Page 12 Make sure that the camera’s power cable is correctly and firmly connected. Note OpenEye recommends against using more than one power source at a time. Do not use a PoE power source when providing the camera with 12vDC or 24vAC power.
-
Page 13: Network Camera Manager Software
NETWORK CAMERA MANAGER SOFTWARE OpenEye Network Camera Manager (NCM) is a software tool that allows you to quickly and easily connect and configure your OpenEye IP Cameras. This software allows you to assign IP addresses, manage users, configure video settings, and update firmware on multiple cameras at once. - Page 14 For Apex Windows and Linux platforms, Apex will be pre-installed on your OpenEye recorder. Follow the instructions below to launch Network Camera Manager. Launch from Apex Windows Platforms and Apex Linux Platforms 1. Exit the recorder Live Screen. 2. From the Windows Start menu, launch Network Camera Manager.
-
Page 15: Camera Configuration
CAMERA CONFIGURATION DEVICE ADDRESSING The functions on the Device Addressing tab allow you to find, configure, and view network cameras. Finding Network Devices 1. Click Refresh to reload the Device List. 2. To narrow your search by Camera Model and Network Location, use the Model Filter and Networks dropdowns. - Page 16 2. Enter the Username and Password for the camera. The username and password are case sensitive. It is strongly recommended that the password be changed after the initial setup to prevent unauthorized access. The default username and password for OpenEye IP cameras are as follows.
-
Page 17: Setup & Configuration
SETUP & CONFIGURATION CONNECTING TO THE CAMERA 1. Locate the camera on the Device List. 2. Click Load to open the camera in the web viewer. 3. Log in to the camera with the appropriate Username and Password. Note The default Username is “admin” and the default Password is “1234”. The username and password are case sensitive. -
Page 18: Video Settings
VIDEO SETTINGS The Video Settings menu configures the camera’s basic settings, including frame rate, bitrate, and the streaming codec(s). 1. Use the dropdown menus to configure the Video Orientation, Sharpness, and Wide Dynamic Range. 2. Click Apply to save each selection. 3. -
Page 19: Viewer Tabs
VIEWER TABS Live – Monitor video and perform other video related functions. Setup – Set the camera name, IP address, and define users. This tab also allows you to configure the camera settings and view streams. Advanced – Perform advanced setup configurations, like network setup, security, alarms and maintenance. -
Page 20: Setup
Every network device has a unique Media Access Control (MAC) address that can be used for identification. The MAC address is located on the bottom of each camera, and on the box label (OpenEye Network Camera Manager also displays the MAC address for identification). Record your camera’s MAC address for identification in the future. -
Page 21: Ipv6 Address Configuration
4. Click Apply to confirm the new setting. When using static IP address to log in to the IP Camera, you can access it either through OpenEye IP Finder software or type the IP address directly in the address bar of your Internet Explorer. -
Page 22: User Setup
USER SETUP Admin Password Manage the password for the Administrator account. To change the administrator password: 1. Type a new Administrator Password, and then type again to confirm the password. 2. Click Save. Add User The user name and passwords are limited to 16 characters with no spaces permitted. There is a maximum of twenty user accounts. -
Page 23: File Location
Use the Camera Tab section to modify picture settings for the camera. The sample image will change as you modify the picture settings. Note These settings can drastically affect the camera image. OpenEye suggests that these settings are only modified by a CCTV professional, or at the instruction or a technical support representative. -
Page 24: Picture Adjustment
Picture Adjustment Each of the Picture Adjustment settings is set to the recommended default. Brightness – Adjust the image’s brightness on the camera. The Backlight value is adjustable from 0 (dim) ~ +20 (brightest). Sharpness – Increasing the sharpness level can make the image looked sharper; it especially enhances an object’s edge. -
Page 25: Add Detection Window
Add Detection Window 1. Use the Motion Detection dropdown to select a motion detection preset. 2. Click Add. Note The selected motion detection square will be red. 3. Arrange and size the motion detection window as desired. 4. Click Save. Delete Motion Detection Window 1. -
Page 26: Streaming Settings
STREAMING SETTINGS VIDEO RESOLUTION The camera provides eight codec options under video resolution (two single streaming options, two sets of dual streaming options, and two sets of tri-streaming options): • H.264 Only • MJPEG Only (MJPEG reserved for Live View only) •... -
Page 27: Video Frame Rate
P-Frames between each I-frame; increasing the file size of the stream, but decreasing the risk of video decoding errors. OpenEye recommends setting the GOP to be approximately twice the frame rate (e.g.: if the frame rate is 10 IPS, then set the GOP to 20). -
Page 28: Video Compression
VIDEO COMPRESSION You can select an MJPEG / H.264 compression mode on the video compression page appropriate for your application. You can also select to display compression inflation on the Live Screen. MJPEG compression settings include: • High compression, low bitrate, low quality •... -
Page 29: Advanced
ADVANCED SYSTEM SETTING NETWORK SETUP The Network Setup settings will automatically be set at the recommended default after the camera connection is made. DDNS DDNS (Dynamic Domain Name Service) is a service that allows a connection to an IP address using a hostname (URL) address instead of a numeric IP address. -
Page 30: Network Security
NETWORK SECURITY HTTP The camera can send alarm messages to a specific Hypertext Transfer Protocol (HTTP) site when motion is detected or when the sensor input is activated. You can assign alarm messages to up to two HTTP sites. IP Filtering IP Filtering allows you limit access to your IP cameras by IP address. -
Page 31: Alarm Application
ALARM APPLICATION The alarms menu is where alarm connections are configured. Alarm Switch – Designate when the alarm will be active; Off, On, or By Schedule. Alarm Type – Designate if the alarm is normally open or normally closed. • NOH –... -
Page 32: Tampering And Network Failure Detection
TAMPERING AND NETWORK FAILURE DETECTION Tampering Alarm – Turn the Tampering Alarm On, Off, or On By Schedule. Tampering Duration – Designate the amount of time (in seconds) that tampering must occur in order for a Tampering Alarm to activate. Triggered Action –... -
Page 33: Mail, Http And Ftp Setup
SD CARD OpenEye IP cameras include an integrated microSD™ card slot that can be used to record video or images. The card slot is compatible with a microSD™ card up to 64GB. Device Information – Displays the storage total size and free space information of the included microSD™... -
Page 34: Network Share
NETWORK SHARE Network Share is a network protocol that runs a variety of different system platforms, allowing for file sharing between computers operating on Windows and computers operating on Unix. This serves as an additional storage type. Configuration requires the host IP address, share name, and credentials. Once configured, cameras can record events to the network share. -
Page 35: Recording Schedule
RECORDING SCHEDULE The recording schedule allows you to set up scheduled recording to the microSD™ card or to Network Sharing. Recording This section allows you to define recording schedules for the camera. For continuous recording: 1. Select type of Recording Storage. •... - Page 36 Schedule This section allows you to establish schedules to use in other section. To create a schedule: 1. Select a Schedule set (1-10). 2. Check the desired week day check boxes. 3. Select Day or Night. 4. Designate a Start Time and Duration. 5.
- Page 37 Interval Recording Interval recording allows you to record in consistent intervals and save the files for later viewing. 1. Turn Interval Recording On or Off. 2. Designate the Time Interval (seconds). 3. Designate the Trigger Action using the appropriate checkbox, and then use the dropdown menus to further manage the Trigger Action.
-
Page 38: Maintenance
MAINTENANCE On the Maintenance page you can export the cameras current configuration, or import the configuration for a camera. Use the factory default page to reset the IP Camera to factory default settings if necessary. Do not import configuration files from different models of cameras. Note Configuration Export Configuration:... -
Page 39: Software
SOFTWARE Make sure the software upgrade file is available before starting the software upgrade. Note 1. Click Browse and find the upgrade file. Note Do not change the file name, or the system will fail to find the file. 2. Select the file name from the list under Step 2. 3. -
Page 40: Hot Spot
HOT SPOT The Spot feature allows you to transmit different parts of the camera image on separate streams. Each stream is displaying a portion of the image at the full size of a regular image. This is useful for focusing on details in different areas of a single camera view. TEXT OVERLAY Text Overlay allows you to select text to be displayed over the video. -
Page 41: Specifications
SPECIFICATIONS CAMERA SPECIFICATIONS Model OE-C6123-W2 / W3 / W6 Maximum Resolution Image Sensor 1/3” Progressive CMOS Video Compression MJPEG / H.264 Frame Rate 25/30 IPS @ H.264 3MP ONVIF Profile S Streaming Up to 3 simultaneous streams 2.3mm fixed: 125°... - Page 42 All rights reserved. No part of this publication may be reproduced by any means without written permission from OpenEye. The information in this publication is believed to be accurate in all respects. However, OpenEye cannot assume responsibility for any consequences resulting from the use thereof. The information contained herein is subject to change without notice.
