- Page 2 Please find the latest version at WWW.GRUNDIG-SECURITY.COM Limitation of Liability / Legal Disclaimer Abetechs GmbH (Grundig Security) undertakes all reasonable efforts to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s...
- Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open source software licenses. For detailed information about the...
- Page 4 You may obtain the complete corresponding open source part of a specific product from us for a period of three years after our last shipment of this product by sending an email to: info@grundig- security.com Safety Instruction Make sure that you only use the power adapter that is specified in the specifications sheet of the product.
- Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
- Page 6 If the product supports IR, you need to take some precautions to prevent IR reflection. Do not install the product close to reflective surfaces of objects as this may cause reflection. If the product has a dome cover, please remove the protection film only after installation to prevent dust or grease on the camera which can cause reflection.
-
Page 7: Table Of Contents
3.1 Wiring ................17 3.2 Activating the Camera ........... 18 3.2.1 Activation via Web Browser ........ 18 Activation via Grundig IP-Finder Tool ....19 3.3 Modifying the IP Address ..........21 4 Accessing via Web Browser ............23 4.1 Initializing the Memory Card ......... 25... -
Page 8: Appearance Description

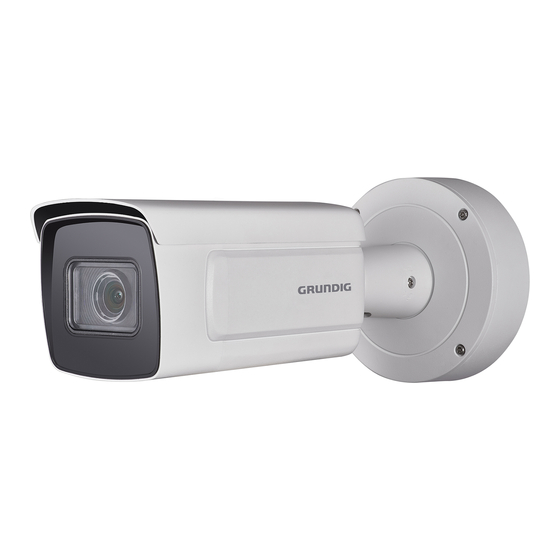

1 Appearance Description Overview The overview of the network bullet camera is shown below. Figure 1-1 Overview Bullet Camera Table 1-1 Description of Bullet Camera Description Network cable interface Alarm Input Interface Alarm Output Interface RS485 port... - Page 9 Note: Use the reset button to reset the camera: Press and hold the reset button about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc.
-
Page 10: Installation
2 Installation 2.1 Memory Card Installation The camera supports memory card function. Follow the steps to mount and unmount a memory card. 1. Unscrew the cover to expose the memory card slot. Remove cover 2. Insert the memory card. 3. (Optional) To unmount the memory card, push to get it ejected. 4. -
Page 11: Direct Mounting
Direct Mounting Steps: 1. Drill 4 screw holes (hole 1 on drill template) and the cable hole in the ceiling/wall. Ceiling Mounting Cable Hole 1:Screw Hole for 2:Screw Hole for Bracket Mounting Base Figure 2-2 Drill Template 2. Fix the base to the wall/ceiling with the supplied screws... - Page 12 Note: Please insert the expansion screws first if the junction box is mounted to the cement wall/ceiling. And you can use the self- tapping screws directly if the junction box is mounted to the wooden wall/ceiling. Figure 2-3 Install the junction box...
- Page 13 Figure 2-4 Install camera onto base 3. Adjust the view angle. 1). Loosen No.1 lock screw to adjust the tilt angle [0 ° to 100°]. 2). Loosen No.2 lock screw to adjust the pan angle [0° to 360°]. 3). Loosen No.3 lock screw to rotate the camera [0° to 360°]. 4).
- Page 14 Figure 2-5 Adjust the View Angle...
-
Page 15: Network Cable Water-Proof Jacket Installation (Optional)
Figure 2-6 Supplied Wrench 4. (Optional) Install the water-proof jacket for network interface. Refer to Section 2.3 Network Cable Water-proof Jacket Installation (Optional). Note: It is recommended to adopt the water-proof jacket (supplied) for the network interface, especially when the camera is installed outdoor. - Page 16 ① ② ③ ④ ⑤ ⑥ ⑦ Figure 2-7 Water-proof Accessory Components Table 2-1 Components Components Camera’s Network Interface Socket O-Type Gasket Network Plug Waterproof Endcap Waterproof Rubber Gasket Lock Nut Network Cable from Router/Switch Steps: Feed the plugless cable ⑦ through the lock nut ⑥, waterproof rubber gasket ⑤...
- Page 17 Place the O-type gasket ② onto the end of the camera’s network interface socket ①. Insert the network plug ③ into the camera’s network interface socket①. Insert the water-proof rubber gasket ⑤ into the waterproof endcap ④, and secure lock nut ⑥ with the water-proof endcap ④.
-
Page 18: Setting The Ip- Camera Over The Lan
3 Setting the IP- Camera over the LAN Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. -
Page 19: Activating The Camera
Activation via Web Browser and Activation via Grundig IP-Finder Tool are supported. We will take activation via Grundig IP-Finder Tool and Activation via Web Browser as examples to introduce the camera activation. -
Page 20: Activation Via Grundig Ip-Finder Tool
Click OK to save the password and enter the live view interface. Activation via Grundig IP-Finder Tool The Grundig IP-Finder Tool is used for detecting the online device and activating the camera. Get the Grundig IP-Finder Tool from the official website www.grundig-security.com... - Page 21 Follow the steps to activate the camera, please refer to the User manual for other two activation methods. Steps: 1. Run the Grundig IP-Finder Tool to search the online devices. 2. Check the device status from the device list and select the inactive device.
-
Page 22: Modifying The Ip Address
To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your Use the Grundig IP-Finder Tool to search and change the IP address of the device. We take modifying the IP Address via Grundig IP-Finder as an example to introduce the IP address modification. - Page 23 Modify the IP Address Figure 3-5 4. Input the admin password and click Modify to activate your IP address modification. The batch IP address modification is supported by the Grundig IP- Finder. Please refer to the User Manual of Grundig IP-Finder for details.
-
Page 24: Accessing Via Web Browser
4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8 and above version, Apple Safari 16 and above version, Mozilla Firefox 52.0 and above version and Google Chrome 57.0 and above version. - Page 25 4. Click Login. Login Interface Figure 4-1 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- Note: You may have to close the web browser to finish the installation of the plug-in.
-
Page 26: Initializing The Memory Card
Initializing the Memory Card Steps: Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
