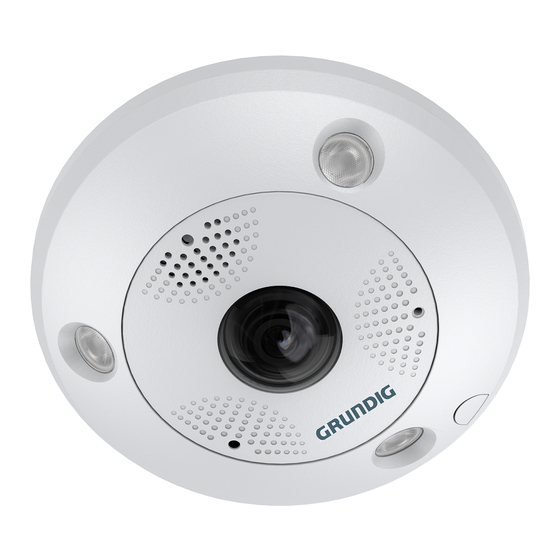

Grundig GD-CI-CT12617F Quick Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
0

Advertisement

Table of Contents
loading

Related Manuals for Grundig GD-CI-CT12617F

Summary of Contents for Grundig GD-CI-CT12617F

  • Page 2 Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Abetechs GmbH (Grundig Security) reserves the right to change the contents of this document without prior notice. Design and specifications are subject to change without prior notice.
  • Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open- source software licenses. For detailed information about the...
  • Page 4 The appearance of the products, functions and firmware or software upgrade may differ from this manual. GRUNDIG reserves the right to perform needed changes without prior notice. Safety Instructions Make sure that you only use the power adapter that is specified in the specifications sheet of the product.
  • Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
  • Page 6 Do not install the product near heat sources, like radiators or other equipment that produces some heat. If the product is not classified by any IP class, do not install the product in very cold or hot temperatures (please refer to the working temperature specified in the specification sheet of the product), dusty, dirty or damp environment.
  • Page 7 Special Installation Instructions for IP Cameras Make sure that the latest firmware is installed on the IP Device. You may get the latest firmware from techsupport@grundig-security.com...

  • Page 8: Table Of Contents

    3.1 Wiring ................17 3.2 Activating the Camera ........... 18 3.2.1 Activation via Web Browser ........ 18 Activation via Grundig IP-Finder Tool ....19 3.3 Modifying the IP Address ..........21 4 Accessing via Web Browser ............23 4.1 Initializing the Memory Card ......... 25...

  • Page 9: Appearance Description

    1 Appearance Description Overview of Fisheye Camera Overview of the Fisheye Camera Disassemble of Fisheye Camera...

  • Page 10: Disassembling The Camera

    Description of Overview Description Description Camera Body Ethernet Interface Reset RS-485 Interface Micro SD Card Slot Power Interface Camera Cover Audio In Alarm Interfaces Audio Out Disassembling the Camera Steps: 1. Loosen the lock screw on the camera cover. Figure 1-3 loosen lock screw 2.
  • Page 11 Oval Sheet Figure 1-4 Move the Oval Sheet Aside Note: Press RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc.

  • Page 12: Installation

    2 Installation Ceiling Mounting Steps: 1. Drill three screw holes and the cable hole according to the supplied drill template. Drill Template 2. Fix the three supplied screws half-deep to the ceiling, leaving enough space to hook the camera body. Fix the Screws 3.
  • Page 13 4. Align the screw holes to the inserted screws, hook the camera body to the screws, and route the camera body to secure the camera with the screws. 5. Hammer the half-deep screws into the ceiling totally. 6. Install the camera cover to the camera body, and fix them by tightening the lock screw on the camera cover.

  • Page 14: Wall Mounting With A Junction Box

    Wall Mounting with a Junction Box Note: You have to purchase a junction box separately if this mounting method is selected. Steps: 1. Fix the junction box to the wall with screws. Fix the Junction Box 2. Screw the three supplied screws half-deep to the junction box. 3.

  • Page 15: Wall Mounting With A Bracket

    Install the Camera Body and Cover Lock Screw Tighten the Lock Screw on the Camera Cover Wall Mounting with a Bracket Note: You have to purchase the bracket separately if this mounting method is selected.
  • Page 16 1. Install the bracket to the wall. 2. Install the mounting base to the bracket. 3. Screw the three supplied screws half-deep to the mounting base. Install the Bracket 4. Connect the corresponding power-, network-, audio- and alarm- cables. 5. Align the screw holes to the inserted screws, hook the camera body to the screws, and route the camera body to secure the camera with the screws.
  • Page 17 Install the Camera Body and Cover Figure 2-10 Tighten the Screw on the Camera Cover...

  • Page 18: Setting The Ip Camera Over The Lan

    3 Setting the IP Camera over the LAN Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection.

  • Page 19: Activating The Camera

    Activation via Web Browser and Activation via Grundig IP-Finder Tool are supported. We will take activation via Grundig IP-Finder Tool and Activation via Web Browser as examples to introduce the camera activation.

  • Page 20: Activation Via Grundig Ip-Finder Tool

    5. Click OK to save the password and enter the live view interface. Activation via Grundig IP-Finder Tool The Grundig IP-Finder Tool is used for detecting the online device and activating the camera. Get the Grundig Finder Tool from the official website www.grundig-...
  • Page 21 Figure 3-4 Grundig IP-Finder Interface Note: The software supports activating the camera in batch. Refer to the user manual of Grundig IP-Finder for details. 3. Create and input the new password in the password field, and confirm the password. STRONG PASSWORD RECOMMENDED– We highly...

  • Page 22: Modifying The Ip Address

    To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your Use the Grundig IP-Finder Tool to search and change the IP address of the device. We take modifying the IP Address via Grundig IP-Finder as an example to introduce the IP address modification.
  • Page 23 Figure 3-5 Modify the IP Address 4. Input the admin password and click Update to activate your IP address modification. The batch IP address modification is supported by the Grundig IP- Finder. Please refer to the User Manual of Grundig IP-Finder for details.

  • Page 24: Accessing Via Web Browser

    4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8 and above version, Apple Safari 16 and above version, Mozilla Firefox 52.0 and above version and Google Chrome 57.0 and above version.
  • Page 25 4. Click Login. Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug- Note: You may have to close the web browser to finish the installation of the plug-in.

  • Page 26: Initializing The Memory Card

    4.1 Initializing the Memory Card Steps: Check the memory card status by tapping on the Storage Status in the Device Settings interface. If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the camera such as motion detection.
