- Page 1 Network Bullet Camera Quick Guide GD-CI-CC2616T GD-CI-CC4617T GD-CI-DC2616T GD-CI-DC4617T WWW.GRUNDIG-SECURITY.COM...
- Page 2 Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Abetechs GmbH (Grundig Security) reserves the right to change the contents of this document without prior notice. Design and specifications are subject to change without prior notice.
- Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open source software licenses. For detailed information about the...
- Page 4 You may obtain the complete corresponding open source part of a specific product from us for a period of three years after our last shipment of this product by sending an email to: info@grundig- security.com Safety and Installation Instruction...
- Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
- Page 6 Installation Instructions It is necessary to fix the device firmly if the product is installed on a wall or ceiling. Do not install the product on surfaces or in places that are vibrating. Do not install the product near radiation sources. Do not install the product near heat sources, like radiators or other equipment that produces some heat.
- Page 7 Special Installation Instructions for IP Cameras Make sure that the latest firmware is installed on the IP Device. You may get the latest firmware from www.grundig-security.com website or from techsupport@grundig-security.com.
-
Page 8: Table Of Contents
3 Setting the Network Camera over the LAN ........16 3.1 Wiring ................16 3.2 Activating the Camera ............ 17 Activation via Web Browser ........17 Activation via Grundig IP-Finder Software ....19 3.3 Modifying the IP Address..........20 4 Accessing via Web Browser ............22... -
Page 9: Appearance Description

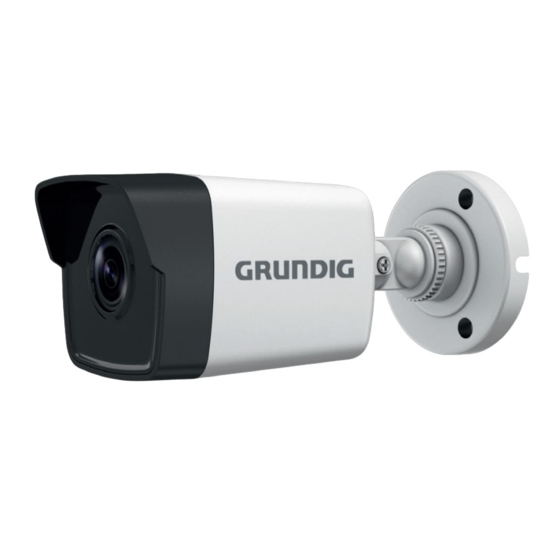

1 Appearance Description Bullet Camera Overview Description Description Lens Front Cover Camera Cover Mounting Base Power Cord Network Cable... -
Page 10: Installation
2 Installation 2.1 Mounting Both wall mounting and ceiling mounting are suitable for the bullet camera. Steps: 1. Paste the drill template (supplied) to the desired mounting position on the wall/ceiling. 2. Drill the screw holes in the ceiling according to the supplied drill template. - Page 11 4. Fix the camera on the wall/ceiling with supplied screws. Figure 2-2 Fix the Camera on the Ceiling Note: In the supplied screw package, both self-tapping screws, and expansion bolts are contained. If the ceiling is cement, expansion bolts are required to fix the ...
-
Page 12: Mounting With Junction Box
5) Loosen the No.3 adjusting screw to adjust the pan position [0° to 360°]. 6) Tighten the No.3 adjusting screw. Figure 2-3 3-axis Adjustment 7. (Optional) Install the water-proof jacket. Refer to 2.3 Installation of Water-proof Jacket for details. 2.2 Mounting with Junction Box Before you start: You need to purchase a junction box first. - Page 13 Figure 2-4 The Drill Template 3. Take apart the junction box, and align the screw holes of the bullet camera with those on the junction box’ cover. 4. Fix the camera on the junction box’s cover with three PM4 × 10 screws.
- Page 14 Figure 2-6 Fix the Junction Box on the Wall 6. Route the cables through the cable hole. Here we take bottom cable hole as the example to describe the installation. Separate the water proof cover and the cable gland from the junction box.
-
Page 15: Installation Of Water-Proof Jacket
Figure 2-7 Combine Junction Box’s Cover with its Body 8. Repeat steps 5 to 7 of 2.1 Mounting to complete the installation. 2.3 Installation of Water-proof Jacket Purpose: It is recommended to adopt the water-proof jacket (supplied) for the network interface when the camera is installed outdoor. Steps: 1. - Page 16 5. Fix the O-ring to the network interface of the camera, and then connect the network cables. 6. Wrap the network interface with the main body of the water-proof jacket, and then rotate the fix nut clockwise to assemble it to the main body of the water-proof jacket.
-
Page 17: Setting The Network Camera Over The Lan
3 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, contact your dealer or the nearest service center for help. -
Page 18: Activating The Camera
You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via Grundig IP-Finder, and Activation via Client Software are all supported. We will take activation via Grundig IP-Finder software and Activation via Web Browser as examples to introduce the camera activation. - Page 19 For the camera enables the DHCP by default, you need to use the Grundig IP-Finder software to search the IP address. Activation Interface (Web) 3. Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly...
-
Page 20: Activation Via Grundig Ip-Finder Software
Grundig Finder software is used for detecting the online device and activating the camera. Get the Grundig Finder software from the supplied disk or the official website and install the software according to the prompts. Follow the steps to activate the camera, please refer to the User manual for other two activation methods. -
Page 21: Modifying The Ip Address
To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your Use the Grundig IP-Finder software or client software to search and change the IP address of the device. We take modifying the IP... - Page 22 Address via Grundig IP-Finder software as an example to introduce the IP address modification. For IP address modification via client software, refer to the user manual of client software. Steps: 1. Run the Grundig IP-Finder software. 2. Select an activate device.
-
Page 23: Accessing Via Web Browser
4. Input the admin password and click Update to activate your IP address modification. The batch IP address modification is supported by the Grundig IP- Finder. Please refer to the User Manual of Grundig IP-Finder for details. 4 Accessing via Web Browser... - Page 24 The admin user should configure the device accounts and user/operator permissions properly. Delete the unnecessary accounts and user/operator permissions. Note: The device IP address gets locked if the admin user performs 7 failed password attempts (5 attempts for the user/operator). 4.
- Page 25 Download Plug-in 6. Reopen the web browser after the installation of the plug-in and repeat steps 2 to 4 to login. Note: For detailed instructions of further configuration please refer to the user manual. WWW.GRUNDIG-SECURITY.COM QG-GD-CI-CC2616T-2019-07-23-V3-EN ©ABETECHS GMBH, DÜSSELDORF, GERMANY...
