EVAL_TDA38825_1VOUT user guide
User guide for TDA38825 evaluation board
Board information
Board information
2
Evaluation board
2.1

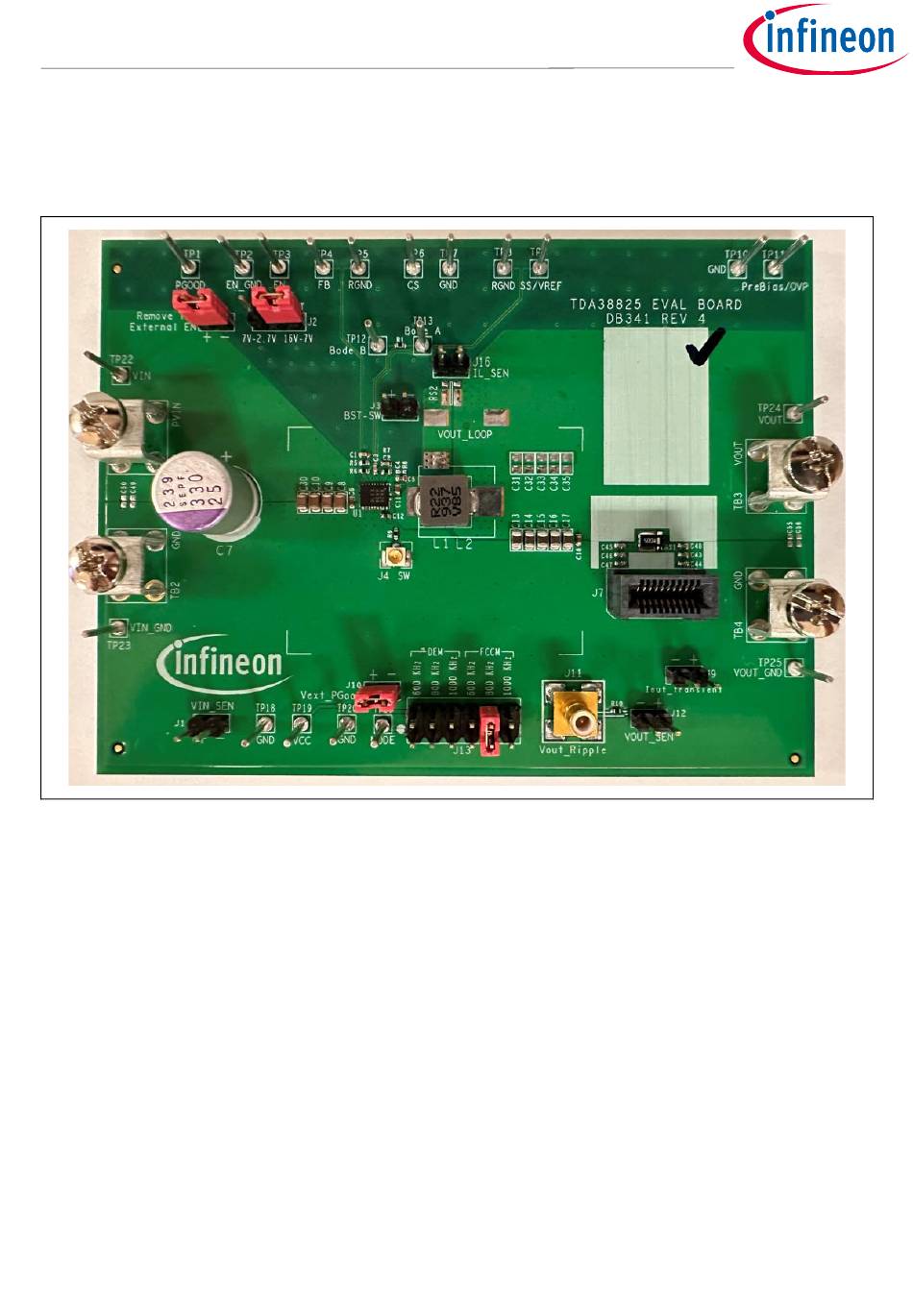

Figure 1
Evaluation board
Board features
2.2
V
= +12 V, V
= +1 V at 0 to 20 A
IN
OUT
F
= 600 kHz/800 kHz/1000 kHz
s
L = 220 nH
C
= 10 x 22 µF (25 V, ceramic 0805) + 1 x 2.2 µF (25 V, ceramic 0805) + 1 x 330 µF (25 V, electrolytic,
IN
optional)
C
= 10 x 47 µF (6.3 V, ceramic 0805) + 1 x 2.2 µF (6.3 V, ceramic 0805)
OUT
User Guide
6
V 1.0
2023-07-21
