Summary of Contents for Samson 2403

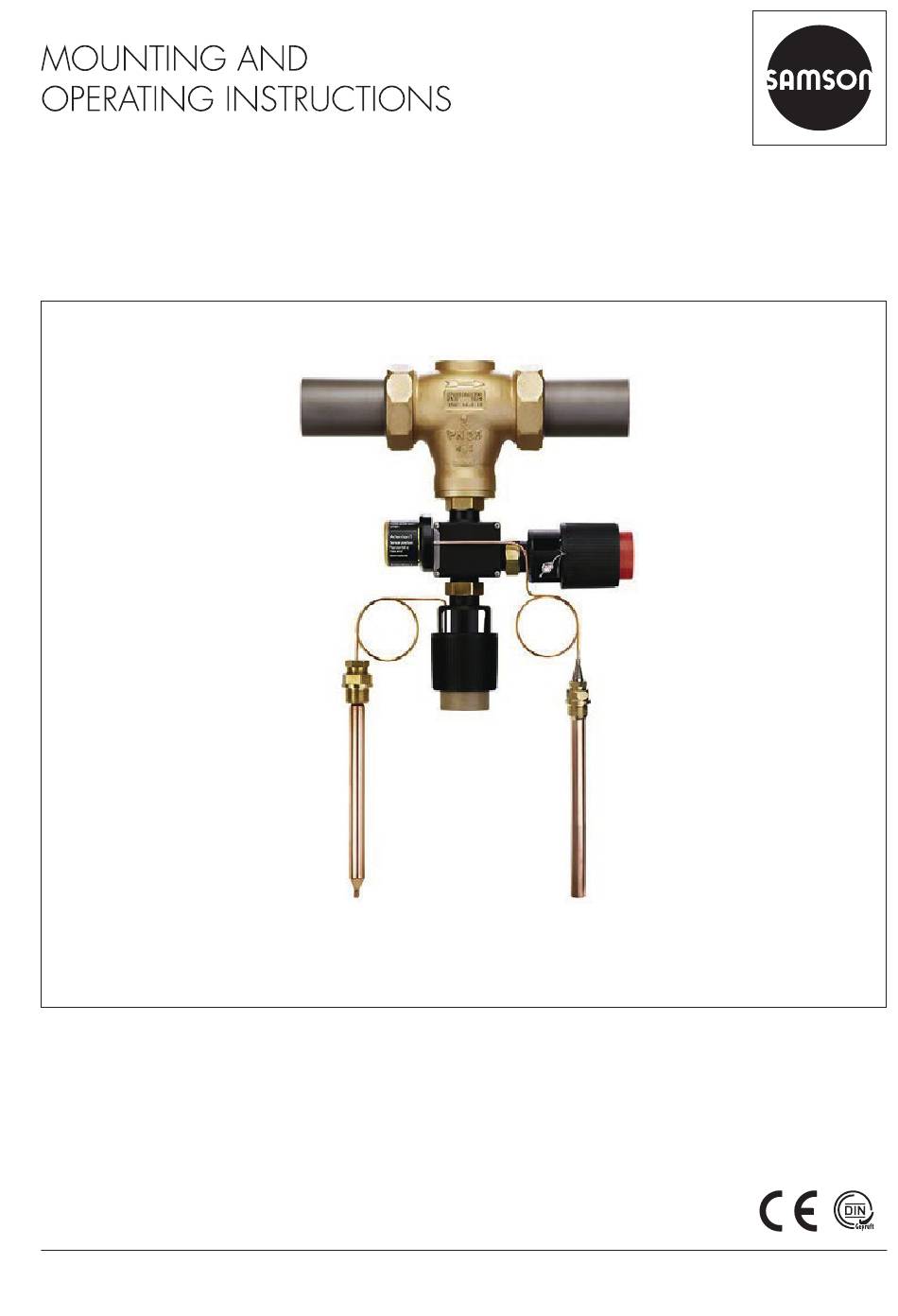

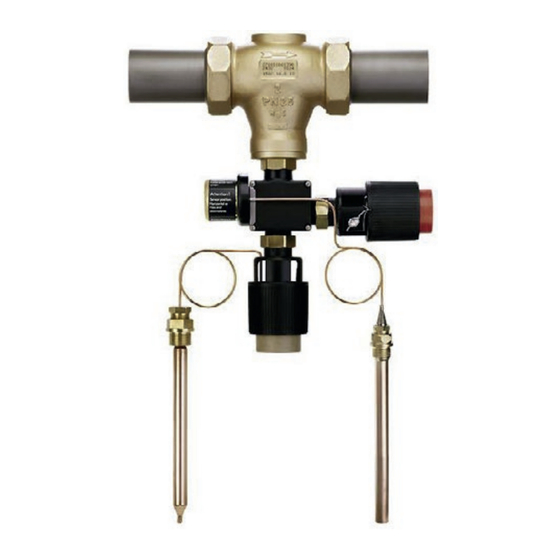

- Page 1 EB 2183 EN Translation of original instructions Type 2432/2430/2403 TR/STM Type 2403 Safety Temperature Monitor (STM) Self-operated Temperature Regulators Edition May 2023...
- Page 2 Note on these mounting and operating instructions These mounting and operating instructions assist you in mounting and operating the device safely. The instructions are binding for handling SAMSON devices. The images shown in these instructions are for illustration purposes only. The actual product may vary.
-
Page 3: Table Of Contents
Contents Safety instructions and measures ..............4 Notes on possible personal injury ..............8 Notes on possible property damage ..............9 Markings on the device ................10 Material identification number ..............10 Design and principle of operation ..............11 Technical data .....................13 Process medium and scope of application ............13 Measures for preparation ................19 Unpacking ....................19 Transporting and lifting ................19... -
Page 4: Safety Instructions And Measures
In case operators intend to use the devices in applications or conditions other than those specified, contact SAMSON. SAMSON does not assume any liability for damage resulting from the failure to use the device for its intended purpose or for damage caused by external forces or any other external factors. - Page 5 Î Check with the plant operator for details on further protective equipment. Revisions and other modifications Revisions, conversions or other modifications of the product are not authorized by SAMSON. They are performed at the user's own risk and may lead to safety hazards, for example. Fur- thermore, the product may no longer meet the requirements for its intended use.
- Page 6 Start-up and shutdown procedures fall within the scope of the operator's duties and, as such, are not part of these mounting and operating instructions. SAMSON is unable to make any statements about these procedures since the operative details (e.g. differential pressures and temperatures) vary in each individual case and are only known to the operator.
- Page 7 Type 1 NI Strainer e.g. u EB 1010 e.g. Type 2 NI Strainer u EB 1015 Plus all mounting and operating instructions of the components on which the Type 2403 Safety Temperature Monitor is mounted (e.g. valve). − Data sheets for Accessories: Double adapter · Manual adjuster · Intermediate insu- e.g. u T 2176 lating piece e.g. Typetested safety devices u T 2181...
-
Page 8: Notes On Possible Personal Injury
Î Wear protective clothing and safety gloves. Damage to health relating to the REACH regulation. If a SAMSON device contains a substance listed as a substance of very high concern on the candidate list of the REACH regulation, this is indicated on the SAMSON deliv- ery note. -
Page 9: Notes On Possible Property Damage
Î Do not dismantle the safety temperature limiter. Î Only perform allowed activities on the safety temperature limiter. Î Contact SAMSON's After-sales Service before replacing spare parts. Risk of leakage and valve damage due to excessively high or low tightening torques. -
Page 10: Markings On The Device
Markings on the device 2 Markings on the device Specifications on the scaled cap on the adjustment knob to adjust the limit SAMSON 1 Model number and type designation 2750-5 2 Limit range in °C and °F 2403 ... °C Register number (type test according to ...°F DIN EN 14597) STM 60104 Specifications on the valve 1 Type designation (valve) -
Page 11: Design And Principle Of Operation
The safety temperature monitor closes the valve when the temperature reaches the ation adjusted limit temperature. The safety The Type 2403 Safety Temperature Monitor temperature monitor resets itself (STM) with a valve operates without auxiliary automatically when the temperature has energy and is designed for extended safety fallen to a value of approx. - Page 12 12 Limit adjustment knob 5 Valve spring 13 Lead-seal hole 6 Coupling nut Mounting location for Type 2430 Control Thermostat Type 2403 Safety Temperature Monitor (STM) 20 Type 2430 Control Thermostat (optional) 8 Capillary tube Fig. 2: Design and principle of operation (TR/STM) EB 2183 EN...
-
Page 13: Technical Data
PN 16 or 25 · Max. 200 °C and u EB 2430-3 − Mounting and operating instructions for The Type 2403 Safety Temperature Monitor the safety temperature limiter, e.g. (STM) with a valve operates without auxilia- u EB 2185 ry energy and is designed for extended safe- ty according to DIN EN 14597. - Page 14 Perm. temperature at the sensor 25 K above the adjusted limit Perm. pressure at sensor 25 bar Capillary tube length 5 m Conformity Table 2: Dimensions in mm Table 2.1 Type 2432/2403 · Type 2433/2403 · Type 2436/2403 · Type 2437/2403 Valve size Pipe Ød 21.3 26.8 32.7 Length With welding ends With threaded ends...
- Page 15 Design and principle of operation Table 2.2 Type 2431/2403 · Type 2433/2403 · Type 2435/2403 · Type 2436/2403 Connection size G ½ G ¾ G 1 Face-to-face dimensions Type 2431/2403 Type 2433/2403 Type 2435/2403 Type 2436/2403 Table 3: Weights in kg Table 3.1 Type 2432/2403 · Type 2433/2403 · Type 2436/2403 · Type 2437/2403 Valve size With welding ends Type 2432/2403 kg (approx.) With threaded ends With flanges 11.6 With welding ends Type 2433/2403...
- Page 16 Design and principle of operation Dimensional drawings of safety temperature monitors (STM) Type 2431/2403 · Type 2435/2403 Type 2433/2403 · Version with female thread Type 2432/2403 · Type 2436/2403 Type 2433/2403 · Version with welding ends Fig. 3: Dimensional drawings EB 2183 EN...
- Page 17 Design and principle of operation Dimensional drawings of safety temperature monitors (STM) Type 2436/2403 · G ½ to 1 Type 2433/2403 Version with threaded ends G ½ Ø12 Type 2433/2403 · Version with flanges Fig. 4: Dimensional drawings EB 2183 EN...
- Page 18 Design and principle of operation Dimensional drawings of temperature regulator with safety temperature monitor (TR/STM) M32 x 1.5 SW 36 M32 x 1.5 SW 22 SW 17 G ½ Ø12 Type 243 …/2430/2403 Fig. 5: Dimensional drawings EB 2183 EN...
-
Page 19: Measures For Preparation
− Observe the storage instructions. − Avoid long storage times. − Contact SAMSON in case of different stor- age conditions or longer storage times. Note We recommend to regularly check the device and the prevailing storage conditions during long storage periods. -
Page 20: Preparation For Installation
(6) with 20 Nm. Proceed as follows: Î Check to ensure that the connection for Note the safety temperature monitor at the The Type 2403 is installed without thermow- valve is clean. ell. Î Check the safety temperature monitor for damage. -
Page 21: Additional Fittings
For example, when the plant is not used for longer periods the SAMSON Type 1 NI Strainer is suitable of time. (u T 1010). Thermometer... -
Page 22: Installing The Valve Into The Pipeline
Mounting and start-up 5.4 Installing the valve into the − Observe the permissible ambient tem- perature of max. 50 °C. pipeline 5.4.2 Installing the tempera- 5.4.1 Installation conditions ture sensor − Choose a place of installation that allows Mounting orientation you to freely access the regulator even after the entire plant has been complet- The mounting position of the temperature sensor depends on the sensor version:... - Page 23 Î Make sure that almost all of the process − Observe the permissible ambient tem- medium being monitored flows around perature of max. 50 °C over the entire the sensor (of Type 2403). See Fig. 7. length of the capillary tube. 'o' marking 'u' marking...
-
Page 24: Start-Up
Mounting and start-up 5.5 Start-up Once the safety temperature monitor is mounted onto the valve, it can be put into Fill the plant very slowly with the process me- operation. dium on start-up. 5.5.1 Gases and liquids WARNING Risk of burn injuries due to hot or cold com- Î... -
Page 25: Operation
(limit change per turn). After reaching the 1. If necessary, unscrew the Type 2430 limit temperature, the Type 2403 Safety Tem- Control Thermostat. perature Monitor must close the valve com- 2. Set the target limit temperature by pletely (leakage rate 0.05 % of the K... -
Page 26: Fine Adjustment Of The Limit Temperature
Operation 6.2 Fine adjustment of the limit WARNING temperature Risk of burn injuries due to hot or cold com- ponents and pipelines. Depending on the process medium, valve DANGER components and pipelines may get very hot Risk of bursting in pressure equipment. or cold and cause burn injuries. Valves and pipelines are pressure equip- −... -
Page 27: Servicing
The malfunctions listed in Table 5 are caused by mechanical faults and incorrect regulator Note sizing. In the simplest case, the functioning The device was checked by SAMSON before can be restored following the recommended it left the factory. action. Special tools may be required for re- −... -
Page 28: Decommissioning And Removal
Decommissioning and removal Table 5: Troubleshooting Malfunction Possible reasons Recommended action The temperature adjusted at the control thermostat reaches the Control thermostat defective Î Replace the control thermostat. adjusted temperature limit. Foreign particles blocking the valve Î Remove foreign particles. Temperature exceeds the adjusted plug Î... -
Page 29: Decommissioning
Decommissioning and removal 9.2 Disposal WARNING Risk of burn injuries due to hot or cold com- SAMSON is a producer registered at the following ponents and pipelines. European institution Depending on the process medium, valve u https://www.ewrn.org/ components and pipelines may get very hot national-registers/national- registers. -
Page 30: Annex
The EU declarations of conformity are in- Addresses of SAMSON AG and its subsid- cluded on the next pages. iaries The addresses of SAMSON, its subsidiaries, representatives and service facilities worldwide can be found on our website (u www.samsongroup.com) or in all SAMSON product catalogs. Required specifications Please submit the following details: −... - Page 31 Frankfurt am Main, 01. December 2022 Norbert Tollas Peter Scheermesser Senior Vice President Director Global Operations Product Maintenance & Engineered Products Revision 05 Classification: Public · SAMSON AKTIENGESELLSCHAFT · Weismuellerstrasse 3 · 60314 Frankfurt am Main, Germany Seite 1 von 1 EB 2183 EN...
- Page 32 EB 2183 EN SAMSON AKTIENGESELLSCHAFT Weismüllerstraße 3 · 60314 Frankfurt am Main, Germany Phone: +49 69 4009-0 · Fax: +49 69 4009-1507 samson@samsongroup.com · www.samsongroup.com...
