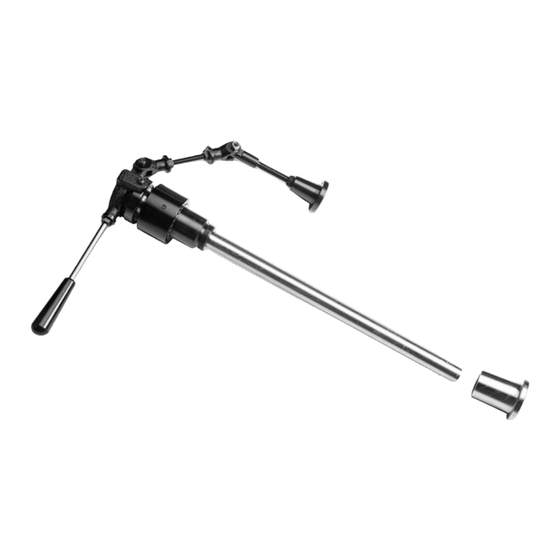

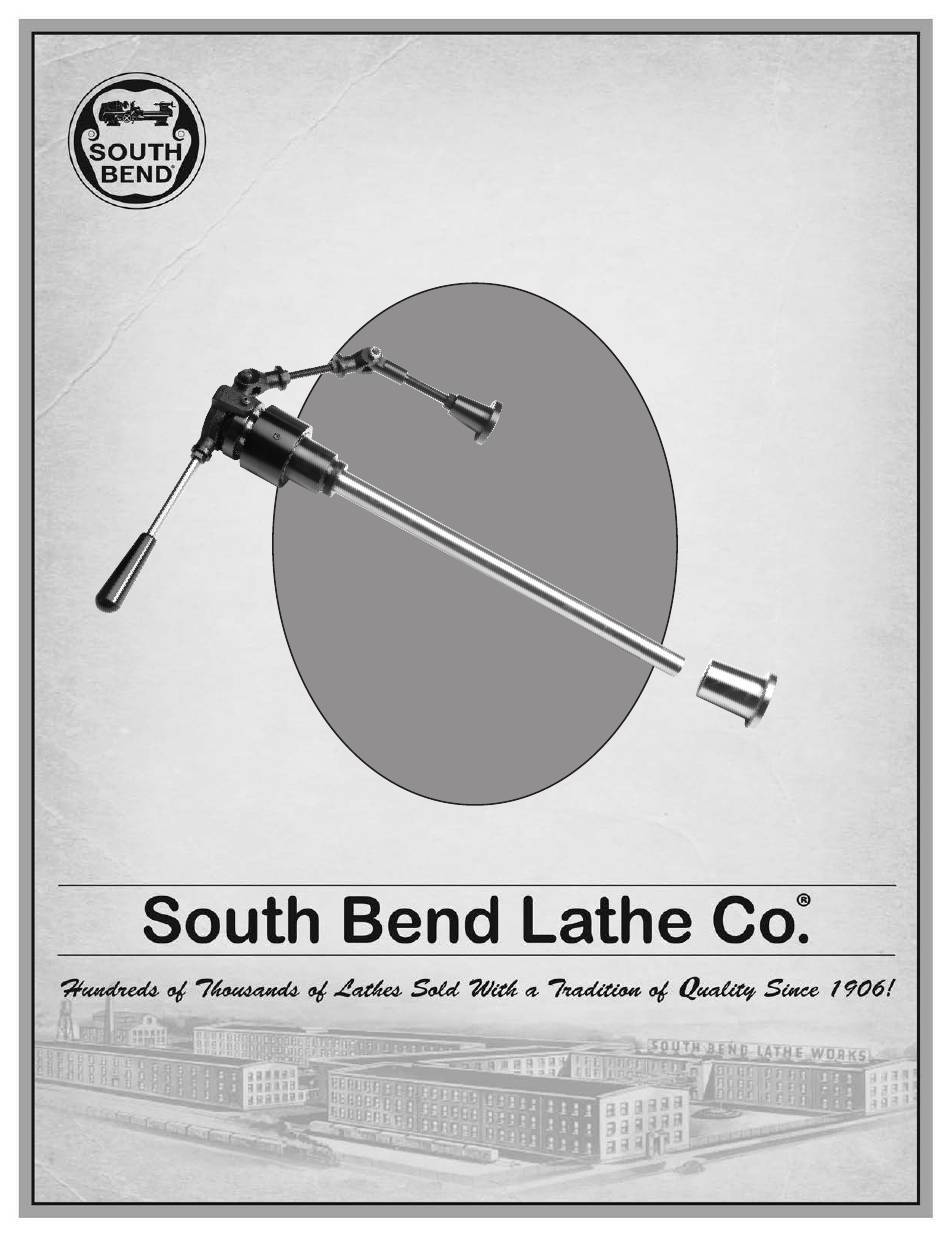

- Page 1 MODEL SB1264/SB1268 COLLET ATTACHMENT FOR LATHE MODELS: SB1012–15, SB1037–39, SB1049–52 For Collet Attachments Mfg. Since 10/09 © February, 2010 by South Bend Lathe Co. Revised July, 2011 (BL)
- Page 2 What did you like about it? Is there anything you would change to make it better? Did it meet your expectations for clarity, professionalism, and ease-of-use? South Bend Lathe, Inc. Technical Documentation Manager P.O. Box 2027 Bellingham, WA 98227 Email: manuals@southbendlathe.com...
-
Page 3: Table Of Contents
Table of Contents INTRODUCTION ..............2 OPERATION ..............13 About This Collet Attachment ...... 2 Operation Overview ........13 ..........2 Collet Attachment Removal ......13 Capabilities ........... 2 Accessories ..........14 Specifications ..........2 Features MAINTENANCE ............. 15 Identification ..........3 Maintenance Schedule....... -
Page 4: Introduction
South Bend Lathes without having provides the capability of increased productivity. to modify the gear cover. The Model SB1264/ This collet attachment accepts 5-C collets and is SB1268 is capable of delivering years of trouble- easily installed and removed from the lathe. -
Page 5: Identification
I N T R O D U C T I O N For Machines Mfg. Since 10/09 Model SB1264/SB1268 Identification Quick-Release Pin Quick-Release Pin Thumb Lever Thumb Lever Lathe Lathe Spindle Spindle Adjusting Adjusting Sleeve Sleeve Spindle Spindle Adapter Adapter... -
Page 6: Safety
S A F E T Y Model SB1264/SB1268 For Machines Mfg. Since 10/09 SAFETY Understanding Risks of Machinery Operating all machinery and machining equipment can be dangerous or relatively safe depending on how it is installed and maintained, and the operator's experience, common sense, risk awareness, working conditions, and use of personal protective equipment (safety glasses, respirators, etc.). - Page 7 S A F E T Y For Machines Mfg. Since 10/09 Model SB1264/SB1268 Entanglement: Loose clothing, gloves, neckties, Chuck Keys or Adjusting Tools: Tools used to jewelry or long hair may get caught in adjust spindles, chucks, or any moving/...
-
Page 8: Additional Collet Attachment Safety
S A F E T Y Model SB1264/SB1268 For Machines Mfg. Since 10/09 Additional Collet Attachment Safety Tool Selection Stopping the Lathe by Hand: : Cutting with an incorrect or Stopping dull tool increases the risk of accidental the spindle by putting your hand on the... -
Page 9: Preparation
P R E P A R A T I O N For Machines Mfg. Since 10/09 Model SB1264/SB1268 Things You'll Need Inventory PREPARATION During the setup process, operation, and If you can't find an item on this list, check the... -
Page 10: Cleaning & Protecting
P R E P A R A T I O N Model SB1264/SB1268 For Machines Mfg. Since 10/09 Cleaning & Protecting Avoid chlorine-based solvents, such as The unpainted surfaces are coated at the factory acetone or brake parts cleaner that may with a heavy-duty rust preventative that damage painted surfaces. -
Page 11: Installation
P R E P A R A T I O N For Machines Mfg. Since 10/09 Model SB1264/SB1268 Installation To reduce the risk of metal shavings contaminating the headstock gear case, have your assistant vacuum the filings while you To install the collet attachment: drill and cut the threads into the headstock. - Page 12 P R E P A R A T I O N Model SB1264/SB1268 For Machines Mfg. Since 10/09 13. Thread the draw tube into the collet When fully installed, the lock ring will attachment assembly, as shown in Figure 5.
- Page 13 P R E P A R A T I O N For Machines Mfg. Since 10/09 Model SB1264/SB1268 18. Tighten the hex nut on the support stud 22. With the chuck sleeve unlocked, rotate it counterclockwise ⁄ –1 turn. Then, pull the against the clevis (Figure 8).
-
Page 14: Test Run
P R E P A R A T I O N Model SB1264/SB1268 For Machines Mfg. Since 10/09 Test Run Locked Locked Once the assembly is complete, test run your lathe with the collet attachment installed to make sure the unit is ready for regular operation. -
Page 15: Operation
O P E R A T I O N For Machines Mfg. Since 10/09 Model SB1264/SB1268 Operation Overview OPERATION the collet, and verifies the workpiece is clamped securely. The purpose of the operation section is to — If clamping is too loose or too tight,... -
Page 16: Accessories
This section includes the most common promising quality. accessories available for your lathe, which may be available through your local South Bend Lathe • Shafts are made of alloy steel and vacuum Co. dealer. If you do not have a dealer in your heat treated to HRC60 ±... -
Page 17: Maintenance
M A I N T E N A N C E For Machines Mfg. Since 10/09 Model SB1264/SB1268 Maintenance Schedule MAINTENANCE Daily Check: • Clean and inspect all tapered mating surfaces. • Inspect for loose mounting cap screws. • Inspect collet adapter for missing pin. -
Page 18: Parts Diagram
P A R T S Model SB1264/SB1268 For Machines Mfg. Since 10/09 Parts Diagram 24V2 (FOR MODELS MFG. FROM 06.09-06.11) (FOR MODELS MFG. SINCE 07.11) Parts List R R E E F F P P A A R R T T # #... -
Page 19: Warranty
Model SB1264/SB1268 Warranty This quality product is warranted by South Bend Tools to the original buyer for 2 years from the date of purchase. This warranty does not apply to consumable parts, or defects due to any kind of misuse, abuse, negligence, accidents, repairs, alterations or lack of maintenance. We do not reimburse for third party repairs. - Page 20 Printed In Taiwan #CR12466...
