Manhattan Comfort DUANE CT-11GLF Manual

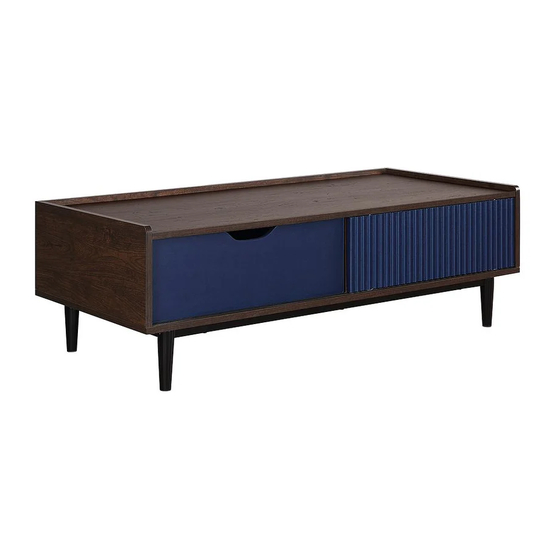

Duane coffee table
Hide thumbs

Advertisement

Table of Contents

Duane Coffee Table
CT-11GLF
V.05112023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DUANE CT-11GLF and is the answer not in the manual?

Questions and answers

Related Manuals for Manhattan Comfort DUANE CT-11GLF

Summary of Contents for Manhattan Comfort DUANE CT-11GLF

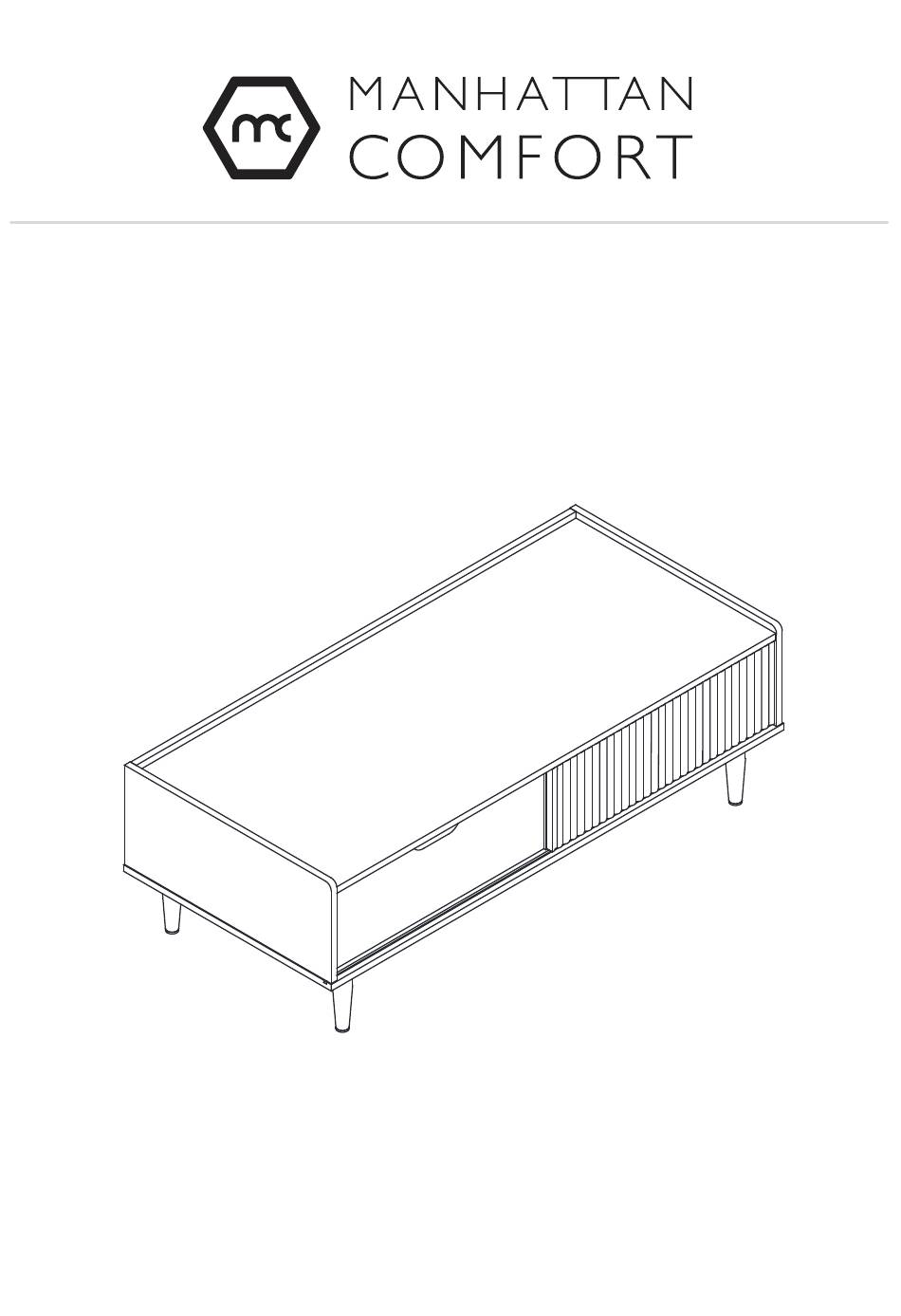

  • Page 1 Duane Coffee Table CT-11GLF V.05112023...

  • Page 2: For Best Results

    STOP! STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. FOR BEST RESULTS: • Do not throw away packaging materials until assembly is complete. • Assemble item on a soft surface, such as cardboard or carpet, to protect finish. •...

  • Page 3: Included In This Package

    Included in this package: A. TOP (1) B. BOTTOM (1) C. LEFT END (1) D. RIGHT END (1) E. UPRIGHT (1) F. BACK (1) G. LEG (2) H. BRACE (2) K. DOOR (1) O. DRAWER BACK (1) P. DRAWER BOTTOM (1) Q.

  • Page 4: Hardware Identification

    Hardware Identifi cation Page 4 CT-11GLF...

  • Page 5: Warranty Policy

    WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This warranty is valid in the United States of America and Canada.
  • Page 6 Page 6 CT-11GLF...
  • Page 7 Step 1 Assemble your unit on a carpeted floor or on the empty ◆ carton to avoid scratching your unit or the f loor Turn fifteen CAM SCREWS (3) into the exact holes ◆ shown in the ENDS (D and C), TOP (A) and DRAWER FRONT (S). Fasten the L BRACKET (17) to the ENDS (C and D).
  • Page 8 Step 2 Push fifteen HIDDEN CAMS (4) into the TOP (A), UPRIGHT(E), DRAWER BRACE(T), ◆ BACK(F) and DRAWER SIDES(R and Q). Page 8 CT-11GLF...
  • Page 9 Step 3 Separate the EXTENSION SLIDES (2) from the EXTENSION RAILS (1) as shown in the upper diagram ◆ below. Be prepared, the parts are greasy. Fasten two EXTENSION RAILS (1) to the LEFT END (C) and the UPRIGHT (E). Use four FLAT HEAD ◆...
  • Page 10 Step 4 Insert one WOOD DOWEL (10) into the TOP (A). ◆ Fasten the UPRIGHT (E) to the TOP (A). Tighten two HIDDEN CAMS. Page 10 CT-11GLF...
  • Page 11 Step 5 ◆ Insert one WOOD DOWEL (10) to the TOP (A). Fasten the RIGHT END (D) to the TOP (A). Use one PAN HEAD SCREW (18), and tighten two HIDDEN CAMS. ◆ Page 11 CT-11GLF...
  • Page 12 Step 6 ◆ Fasten the BACK (F) to the RIGHT END (D). Tighten two HIDDEN CAMS. Page 12 CT-11GLF...
  • Page 13 Step 7 Insert one WOOD DOWEL (10) to the TOP (A). ◆ Fasten the BACK (F) to the TOP (A). Use three FLAT HEAD SCREWS (13). ◆ Fasten the LEFT END (C) to the TOP (A) and the BACK (F). Use one PAN HEAD SCREW (18) and tighten ◆...
  • Page 14 Step 8 ◆ Insert two BOLT (6) into the holes of the DOOR (K). Fasten the LOWER BRACKETS (5) to the bottom ◆ of the DOOR (K). Use four FLAT HEAD SCREWS (15). Page 14 CT-11GLF...
  • Page 15 Step 9 ◆ Place the DOOR (K) on the TOP(A), make sure the bolts into the groove. Page 15 CT-11GLF...
  • Page 16 Step 10 Insert three WOOD DOWELS into the ENDS (D and C) and UPRIGHT (E). ◆ Fasten the BOTTOM (B) to the ENDS (C and D), UPRIGHT (E) and BACK (F). Use nine ◆ FLAT HEAD SCREWS (13). Note : Be sure the LOWER DOOR BRACKETS into the groove on the BOTTOM (B) Page 16 CT-11GLF...
  • Page 17 Step 11 Fasten the BRACES (H) to the LEGS (G). ◆ Tighten four HEX HEAD SCREWS (11) using the L-WRENCH (8). NOTE: You should start each SCREW a few turns before ◆ completely tightening any of them. Page 17 CT-11GLF...
  • Page 18 Step 12 Fasten the DRAWER SIDES (Q and R) to the DRAWER BACK (O). Use four PAN ◆ HEAD SCREWS (14). NOTE: You should start each SCREW a few turns before ◆ completely tightening any of them. Slide the SMALL DRAWER BOTTOM (P) into the ◆...
  • Page 19 Step 13 Fasten the DRAWER BRACE (T) to the DRAWER BACK (O). ◆ Use two FLAT HEAD SCREWS (14). Insert one WOOD DOWEL (10) to the DRAWER BRACE (T) ◆ Fasten the DRAWER FRONT (S) to the DRAWER SIDES (Q and R) and DRAWER ◆...
  • Page 20 Step 14 Fasten two EXTENSION SLIDES (2) to the DRAWER SIDES (Q and R). Use four FLAT HEAD ◆ SCREWS (16) through the exact holes shown. Page 20 CT-11GLF...
  • Page 21 Step 15 To insert a drawer into your unit, line up the EXTENSION SLIDES on the drawer with the EXTENSION RAILS on the unit and push the drawer into the unit until the drawer is ◆ fully inserted. The drawer will push in hard until it is all the way in, then it will slide in and out easier.
  • Page 22 Step 16 Peel APPLIQUES from the APPLIQUE CARDS (7) and stick them onto each visible HIDDEN CAM. ◆ Peel the BUMPERS from the BUMPER CARDS (9) and stick them onto the edges of the DOORS (K) as ◆ shown in the enlarged diagram. Page 22 CT-11GLF...

This manual is also suitable for:

Duane ct-11glf-bk
