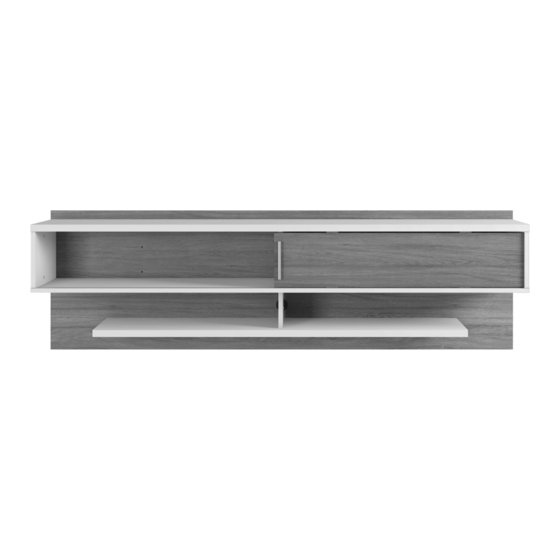

- Page 1 888-230-2225 help@manhattancomfort.com Astor Floating Panel 70.86 Model # 222BMC1, 222BMC12, 222BMC2, 222BMC21, 222BMC6, 222BMC8, 222BMC9, 222BMC94 The indicated values consider static weights and evenly distributed over the parts. Ed. 002, 2019/07 - Manhattan Comfort.
- Page 2 INCLUDED IN THE PACKAGE REAR VIEW For fixing behind the panel For fixing behind the panel For fixing on the wall For fixing on the wall For fixing behind the panel For fixing behind the panel n.° ID Parts Identification (Description) Quantity Panel Upper Rear Bar...
- Page 3 TOOLS NEEDED Simple and phillips Simple hammer. Level indicator. Drilling machine and electric screwdriver with screwdriver. drill bit Ø1/2 inch and phillips tips. IMPORTANT! Two people are needed to assemble this product. INCLUDED IN THE PACKAGE...
- Page 4 STEP 1 • Line the floor with the foam mantle of the packing to protect the parts and arrange the Panel (01) with the rear face upwards, correctly checking it the position according the holes and as shown in the drawing. •...
- Page 5 STEP 4 Preparing the Sliding Door (08): • Apply the plastic guides (I). • Choose the outer face of the Door (08) and fix the handle (13) with bolts 3.5 x 25mm (D). STEP 5 Installing the Sliding Door (08) and fixing the Middle Shelf (09): •...
- Page 6 STEP 7 DETAIL 1 1/2" hole ATENTION! in the wall Before installing the panel, check the conditions of the wall for strength to properly support and Kap Toggle Minimum fixing distance anchor the weight of the suspended furniture, bushing (K) of the Bar (11) for the including equipment and objects that may be panel installation...
