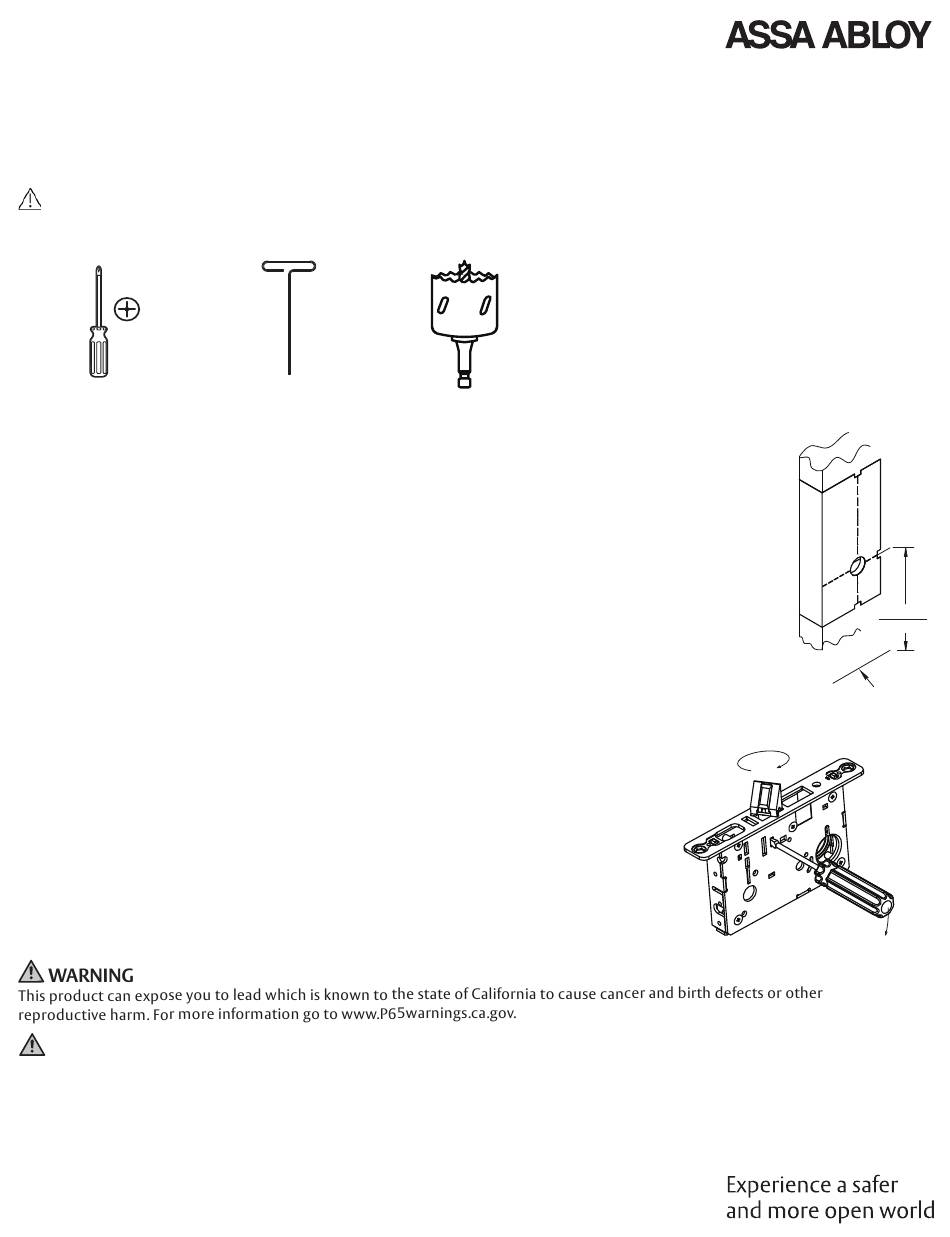

Assa Abloy 8800 Series Installation Instructions Manual

8800 Series Mortise Lockset
Knob, Lever, Refl ections
Installation Instructions

Tools Required

IMPORTANT!
The accuracy of the door preparation is critical for the proper functioning and security of this mortise lock. Misalignment can cause premature wear
and tear and a lessening of security.
#2 Phillips head
screwdriver

1. Mark and Drill Door

A. Mark horizontal line across face of door. 39-15/16" (101cm) is the usual lever height above the fi nished
fl oor.
B. Align the provided template center on the horizontal line. Before drilling, verify that the backset, door
handing, and side of the door correspond to the side of the template being used.

2. Verify Handing

If required, adjust the handing for the lockbody.
Handing the Latchbolt
A. Insert fl at blade screwdriver into cover slot.
B. Pull back on screwdriver until latchbolt extends past base front and rotate the head to the desired position.
Handing the Hubs
A. Locate RED MARK on locking piece.
B. Push toggle button slide away from "square spindle hole."
C. With blade screw driver push RED MARK on slide nearest "square spindle hole."
D. RED MARK indicates locked side.
WARNING
Attention Installer: Any retrofi t or other fi eld modifi cation to a fi re rated opening can potentially impact the fi re rating of the opening,
and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specifi c situation. When retrofi t-
ting any portion of an existing fi re-rated opening, or specifying and installing a new fi re-rated opening, please
consult with a code specialist or local code offi cial (Authority Having Jurisdiction) to ensure compliance with all applicable codes and
ratings.
1-800-235-7482 • www.assaabloy.com
Copyright © 2014, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
®
, and Security Trims
1/8" Allen
Hole saws (See template. Required sizes depend on application.)
Wrench
39 15/16"
(101cm)
Finished Floor
80-9086-0026-010 11/23
