Assa Abloy 8800-ITS Wiring Diagram And Installation Instructions

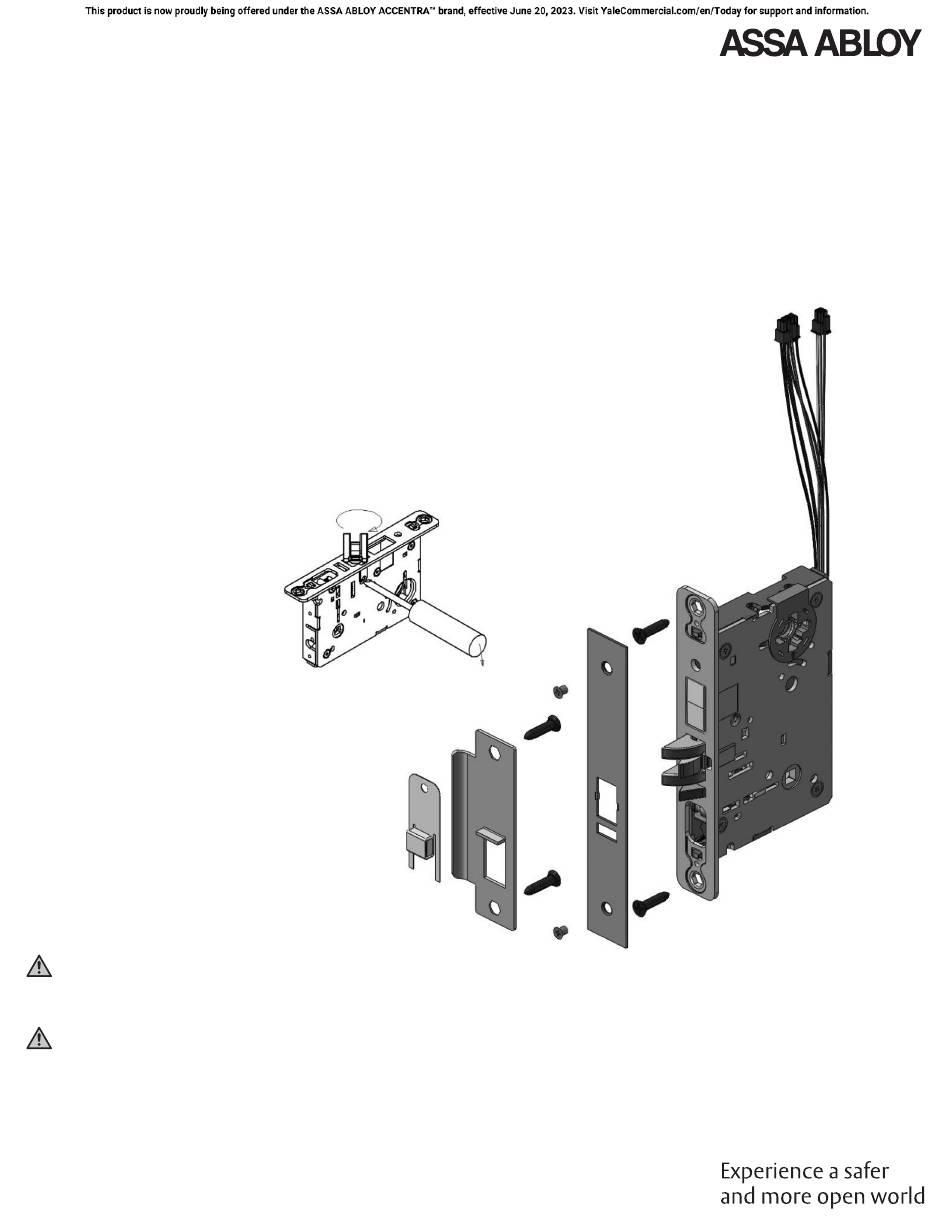

8800-ITS Mortise Lockset
Wiring Diagram and Installation Instructions
Handing the Latchbolt
1. Insert flat blade screwdriver into cover slot.
2. Pull back on screwdriver until latchbolt extends past base front
and rotate the head to the desired position.
Handing the Hubs
1. Locate RED MARK on locking piece.
2. Push toggle button slide away from square spindle hole.
3. With blade screw driver push RED MARK on slide nearest
square spindle hole.
4. RED MARK indicates locked side!
WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65warnings.ca.gov.
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening,
and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific situation. When
retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening, please consult with a
code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
1-800-438-1951 • www.assaabloy.com
Copyright © 2011, 2012, 2023, ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
80-9086-0054-010 10/23
