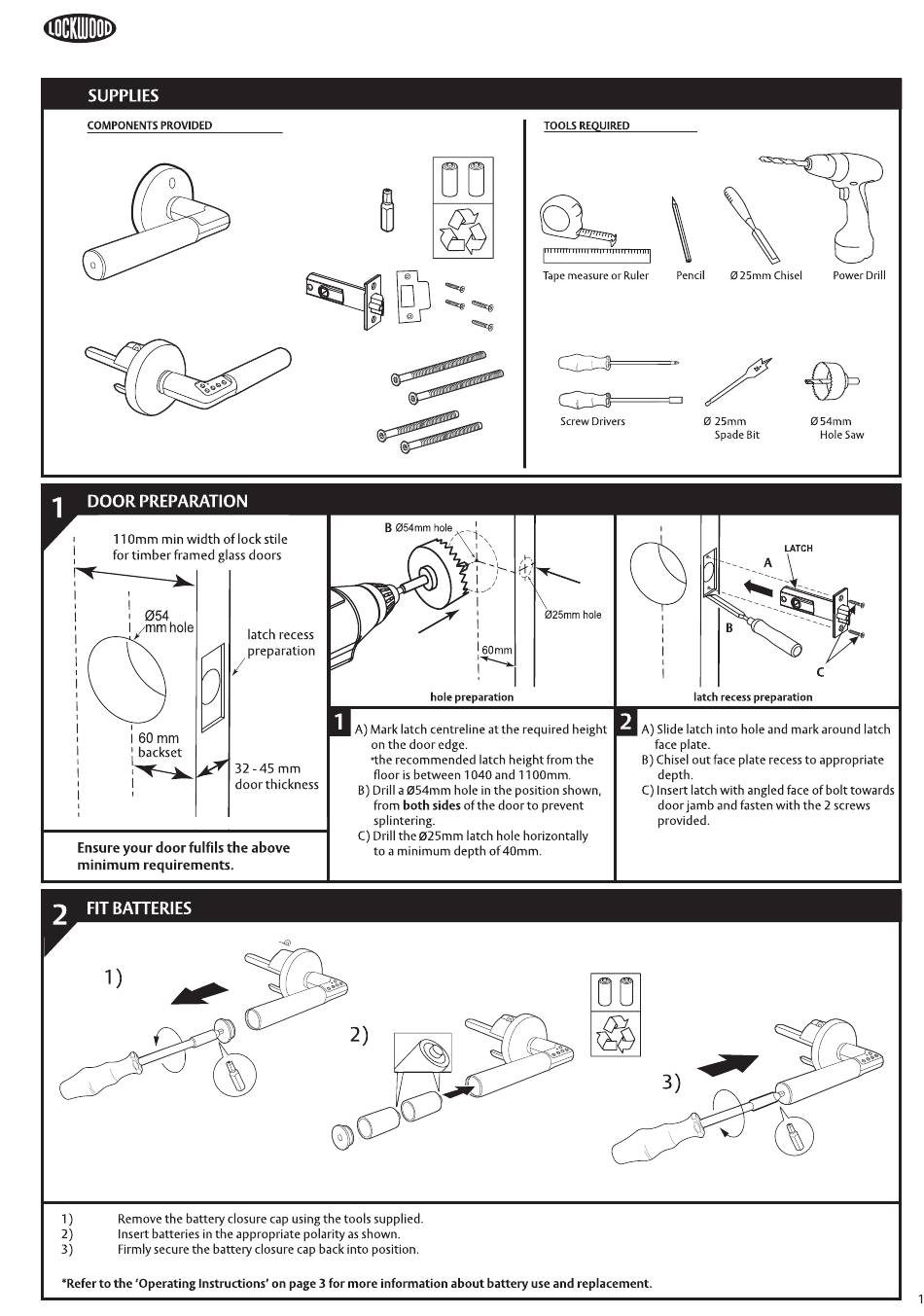

SUPPLIES
1
DOOR PREPARATION
backset
Ensure your door fulfils the above
minimum requirements.
2
FIT BATTERIES
1)
1)
Remove the battery closure cap using the tools supplied.
2)
Insert batteries in the appropriate polarity as shown.
3)
Firmly secure the battery closure cap back into position.
*Refer to the 'Operating Instructions' on page 3 for more information about battery use and replacement
B
latch recess
preparation
1
32 - 45 mm
door thickness
2)
-
+
Tape measure or Ruler
Screw Drivers
A
A
C
C
+
-

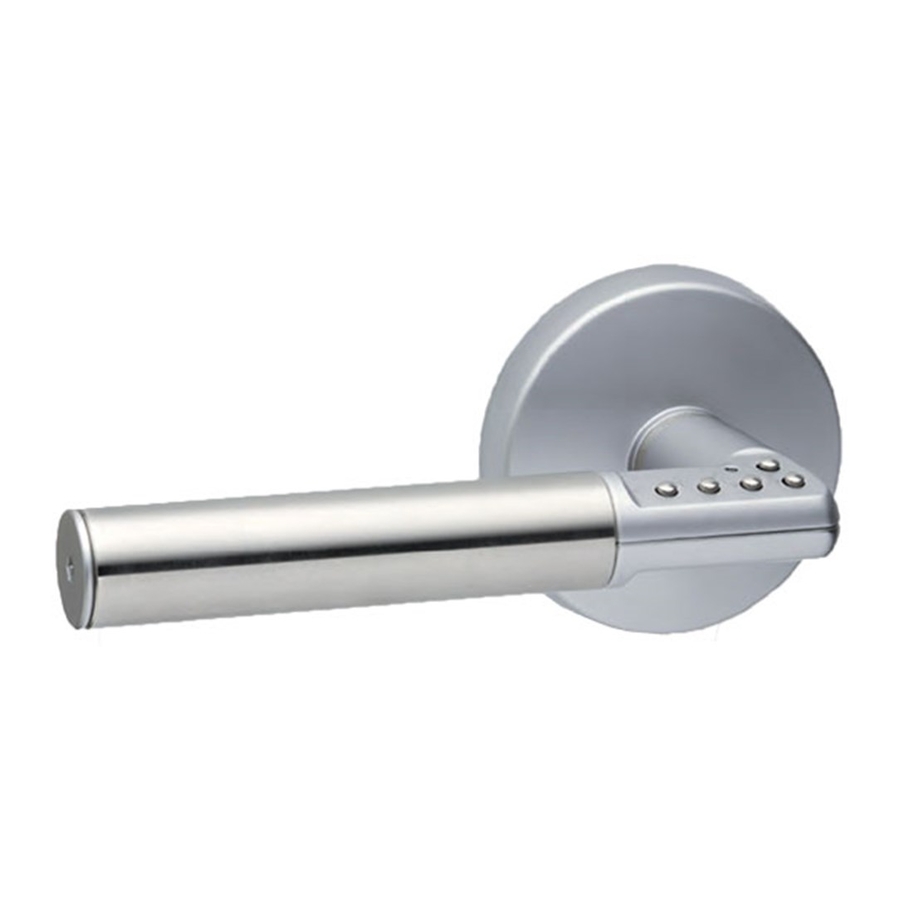

8816 CODE HANDLE
FITTING INSTRUCTIONS
Pencil
25mm Chisel
25mm
Spade Bit
A
B
2
A) Slide latch into hole and mark around latch
face plate.
B) Chisel out face plate recess to appropriate
depth.
C) Insert latch with angled face of bolt towards
door jamb and fasten with the 2 screws
provided.
NOTE: When completed make sure holes
are free of any sawdust or loose material.
3)
.
Power Drill
54mm
Hole Saw
C
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Assa Abloy Lockwood 8816
Summary of Contents for Assa Abloy Lockwood 8816
- Page 1 8816 CODE HANDLE FITTING INSTRUCTIONS SUPPLIES Tape measure or Ruler Pencil 25mm Chisel Power Drill Screw Drivers 25mm 54mm Spade Bit Hole Saw DOOR PREPARATION latch recess preparation A) Slide latch into hole and mark around latch backset face plate. 32 - 45 mm B) Chisel out face plate recess to appropriate door thickness...
- Page 2 8816 CODE HANDLE FITTING INSTRUCTIONS REGISTER AN ADMINISTRATOR’S CODE press 1 & 4 at the same time square shaft enter a 6 digit administrator’s code : ### ### facing downwards An administrator’s code must be initiated prior to fitting the handle. Hold the handle horizontally with the square shaft facing downwards, as shown on the illustration above.
- Page 3 8816 CODE HANDLE OPERATING INSTRUCTIONS BATTERIES The 8816 Code Handle is delivered with two CR2 batteries. USER CODES SECURITY...
- Page 4 8816 CODE HANDLE OPERATING INSTRUCTIONS RESETTING THE CODE MEMORY SECURITY SECURITY AUDIO SIGNALS AUTOMATIC LOCKING GENERAL SAFETY PRECAUTIONS ASSA ABLOY Australia Pty Limited, 235 Huntingdale Rd, Oakleigh, VIC 3166 ABN 90 086 451 907 ©2013 The global leader in door opening solutions...
