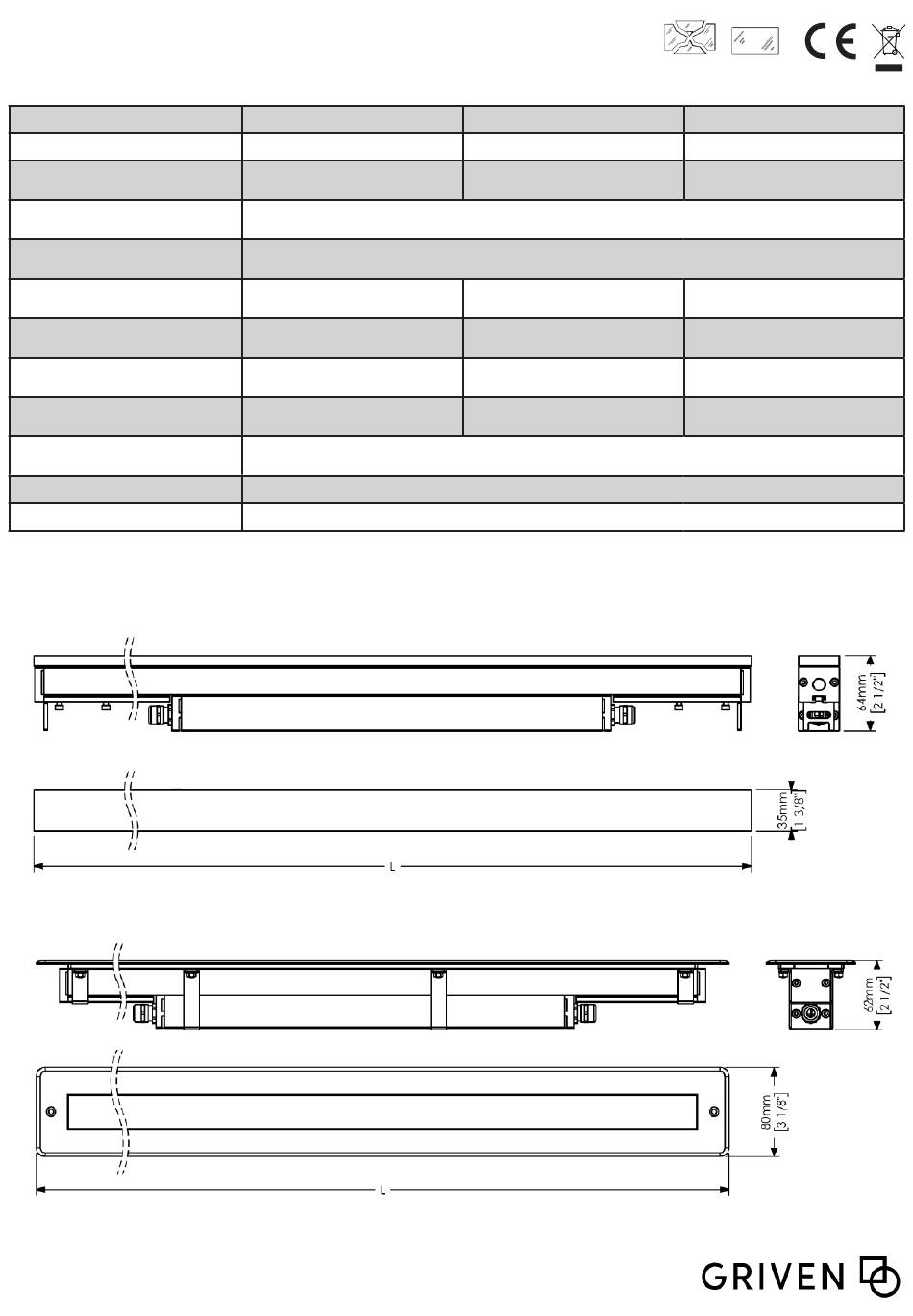

Chiron Recessed RGBW/DW
2- 3 - 4
Code / Codice
Power consumption
Consumo di energia
Remote power supply
Alimentatore remoto
Electrical class
Classe elettrica
Weight
Peso
ALL-GLASS
Length
Lunghezza
ALL-GLASS
Weight
Peso
FRAME
Length
Lunghezza
FRAME
Operating temperature
Temperatura di funzionamento
IP rating / Grado IP
IK rating / Grado IK
Chiron Recessed ALL-GLASS
Chiron Recessed FRAME
Griven S.r.l. - Via Bulgaria, 16
46042 Castel Goffredo
Mantova - Italy
CHIRON 2 Rec RGBW/DW CHIRON 3 Rec RGBW/DW CHIRON 4 Rec RGBW/DW
AL8389
28 W
2Kg - 4,4lb
586mm - 23"
2.7Kg - 5,95lb
626mm - 24 5/8"
Tel. +39.0376.779483
E-mail: sales@griven.com
Web: www.griven.com
User Manual
Rev. 1.0
Date: 09/07/2024
AL8390
39 W
Constant Voltage: Min. 42Vdc - Max. 48Vdc
2.6Kg - 5.8lb
868mm - 34 1/8"
3.7Kg - 8,15lb
908mm - 35 3/4"
-40°C to 50°C / (-40°F to 122°F)
IP67
IK10
© Copyright Griven 2020 - GRIVEN S.r.l. is continuously
developing and improving all its products.
We reserve the right to change specifications without
prior notification
III
1150mm - 45 3/8"
4.7Kg - 10,36lb
1190mm - 46 7/8"
551231
AL8391
50 W
3.3Kg - 7,3lb
page 1 of 6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Griven CHIRON 2 Rec RGBW/DW
Summary of Contents for Griven CHIRON 2 Rec RGBW/DW
- Page 1 Chiron Recessed RGBW/DW User Manual 2- 3 - 4 Rev. 1.0 Date: 09/07/2024 551231 CHIRON 2 Rec RGBW/DW CHIRON 3 Rec RGBW/DW CHIRON 4 Rec RGBW/DW Code / Codice AL8389 AL8390 AL8391 Power consumption 28 W 39 W 50 W...
- Page 2 Important notices - Avvisi importanti - This product must be installed in accordance with applicable national and local - Questo prodotto deve essere installato secondo le normative locali, da personale electrical and construction codes by a person familiar with the construction and specializzato.
- Page 3 Installation - Installazione - installation ATTENZIONE - WARNING - AVERTISSEMENT ITA: I collegamenti del cavo tipo “M” deve essere effettuato utilizzando il kit di collegamento opzionale. Seguire le istruzioni fornite insieme al kit di connessione. ENG: Cable connections types “M” must be made out by using the optional connection kit. Follow the instructions provided along with the connection kit.
- Page 4 Terminal block not included. Installation must be performed by a qualified person. Morsettiera non inclusa. L’installazione deve essere eseguita da una persona qualificata. Bornier non inclus. L’installation doit être effectuée par une personne qualifiée. Make only waterproof connections through IP67 junction boxes Effettuare solo connessioni stagne attraverso scatole di derivazione IP67 Réaliser uniquement des connexions étanches à...
-
Page 5: Dmx Controller
Configuration examples / Esempi di configurazioni / Exemples de configuration (Red) DATA+ DMX CONTROLLER (Black) DATA- (Blue) POWER SUPPLY UNIT -V(Black) Costant Voltage Uout + 48 V (Brown) +V(Red) DMX Single Chain con guration - M type cable Con gurazione catena singola DMX - Tipo di cavo M Con guration d'une seule cha1ne DMX - Type de cable M Maximum distance between power supply unit and last xture / distanza massima fra alimentatore ed ultimo prodotto/ Distance maximale entre l'unité... - Page 6 Multi Chain configuration using Repower Box - M cable type Configuration multi-chaîne utilisant une Repower Box - Type de câble M Configurazione multi catena utilizzando una Repower Box - Tipo di cavo M M a a x x i i m m u u m m d d i i s s t t a a n n c c e e b b e e t t w w e e e e n n p p o o w w e e r r s s u u p p p p l l y y u u n n i i t t a a n n d d l l a a s s t t f f i i x x t t u u r r e e / / d d i i s s t t a a n n z z a a m m a a s s s s i i m m a a f f r r a a a a l l i i m m e e n n t t a a t t o o r r e e e e d d u u l l t t i i m m o o p p r r o o d d o o t t t t o o / / D D i i s s t t a a n n c c e e m m a a x x i i m m a a l l e e e e n n t t r r e e l l ' ' u u n n i i t t é...
