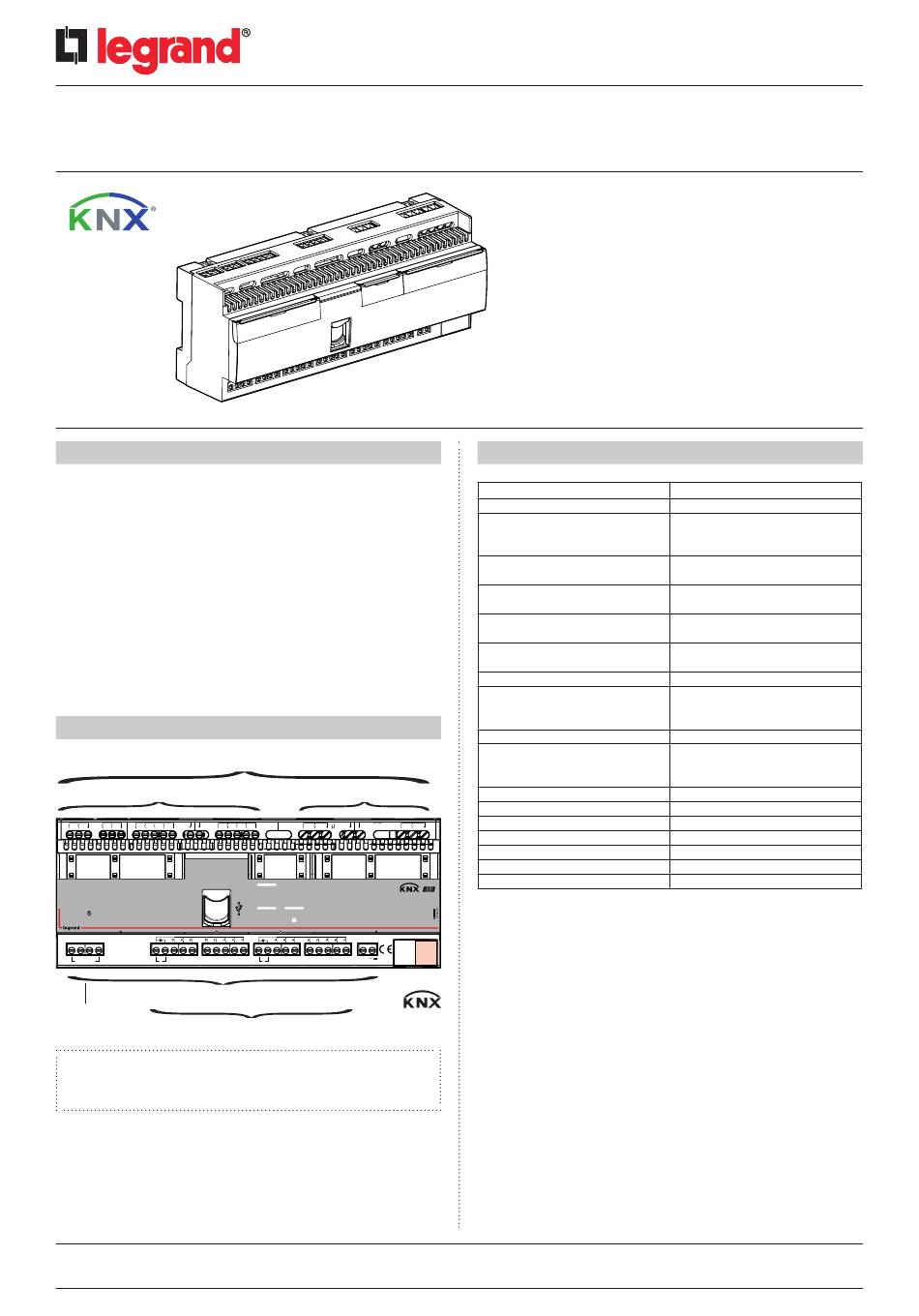

LEGRAND 0 484 22 Manual

KNX multiapplication controller 16 outputs
Dali
1.

USE

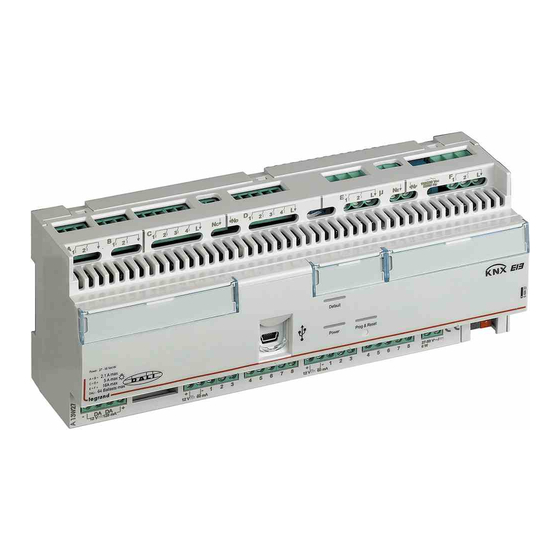

The KNX multi-application modular controller has been specially
designed to meet requirements for control in hotel rooms and meeting
rooms.
It comprises:
• 16 binary outputs that can be configured to control lighting (2 blocks of
4 relays: 4.3 A max. to be distributed in each of the blocks), blinds
(2 blocks of 2 relays: 2.1 A max. to be distributed in each of the blocks)
and power sockets (2 blocks of 2 relays: 16 A max. to be distributed
in each of the blocks). Each output can be part of 5 scenarios and 3
different modes. 4 separate current measurements are incorporated.
• 16 configurable auxiliary inputs for ON/OFF, Dim +/-, scene and raise/
lower/stop commands for roller blinds via switches, pushbuttons or
other volt-free contact devices.
• Functions for creating scenarios and advanced logic functions: 3 logic
"blocks" for sending a command according to 3 conditions and 3
other "program blocks" for sending 5 different actions on 1 command.

2. TEChNiCal fEaTUrES

Outputs
2 x 1.5 mm 2
A B C D
N N
L 1 2
1 2 1 2 1 2 3 4 C D
Power : 27 - 56 VA/=
2,1 A max
A = B =
4,3 A max
C = D =
16A max
E = F =
64 Ballasts max
DALI :
DALI
G
- + + - 3 5 6
DA DA 1 2 4
12 V= 128 mA
12 V= 60 mA
1 x 2.5 mm
DALI output
important: Neutral terminals necessary for:
• Synchronisation with the mains power supply
• Measurement of energy consumption
Technical data sheet: S000074637EN-5
2 x 2.5 mm 2
E F
N N 110/230 VA
3 4 L 1 2 L 1
E F
50/60 Hz
Default
Power Prog & Reset
-
H Made in France
8 + - 3 5 6 8
7 1 2 4 7 27-50 V /
6 W
12 V= 60 mA
2
Inputs
Updated: 12/03/2015
2. TEChNiCal fEaTUrES (CONTiNUED)
Device power supply
Terminal type
Number of load terminals
Number of auxiliary input
terminals
Capacity of the load terminals
Capacity of the DALI load
terminals
Capacity of the auxiliary input
terminals
KNX connection
Contact type
Location category
Degree of protection
Penetration by solid and
liquid matter
Impact resistance
Number of modules
Usage temperature
2 L
Storage temperature
No-load power consumption
KNX/BUS absorption
Weight
+
Catalogue number(s): 0 484 22
CONTENTS
1. Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Technical features . . . . . . . . . . . . . . . . . . . . . . . .1
3. Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
5. Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
6. Standards and approvals . . . . . . . . . . . . . . . . .6
7. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
8. Communication objects . . . . . . . . . . . . . . . . . .7
27-50 V±/= - 6 W
Screw
{
A - B: 2.1 A blocks
16 outputs C - D: 4.3 A blocks
E - F: 16 A blocks
16 inputs (G - H: 8-input blocks)
2 x 1.5 mm 2 (A to D)
2 x 2.5 mm (E to F)
2
1 x 2.5 mm
2
1 x 2.5 mm²
0.6 to 0.8 mm
2
Bistable relay (blocks E & F),
monostable relay (blocks A, B, C
& D)
Indoor
IP 20
(installation in an enclosure)
IK 04
12
-5°C to +45°C
-20°C to +70°C
< 1 W
5 mA
387 g
Created: 15/04/2014
