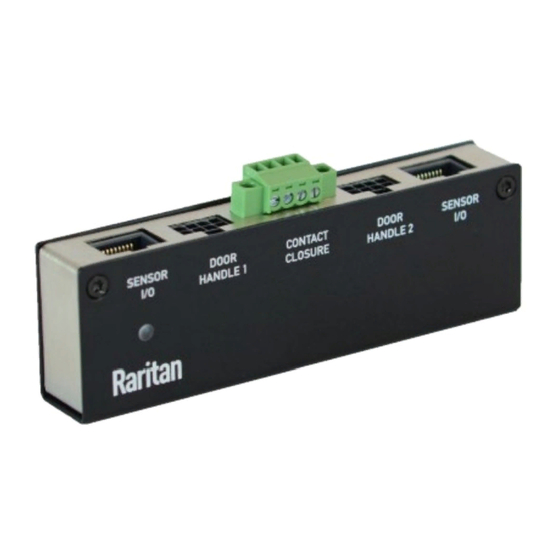

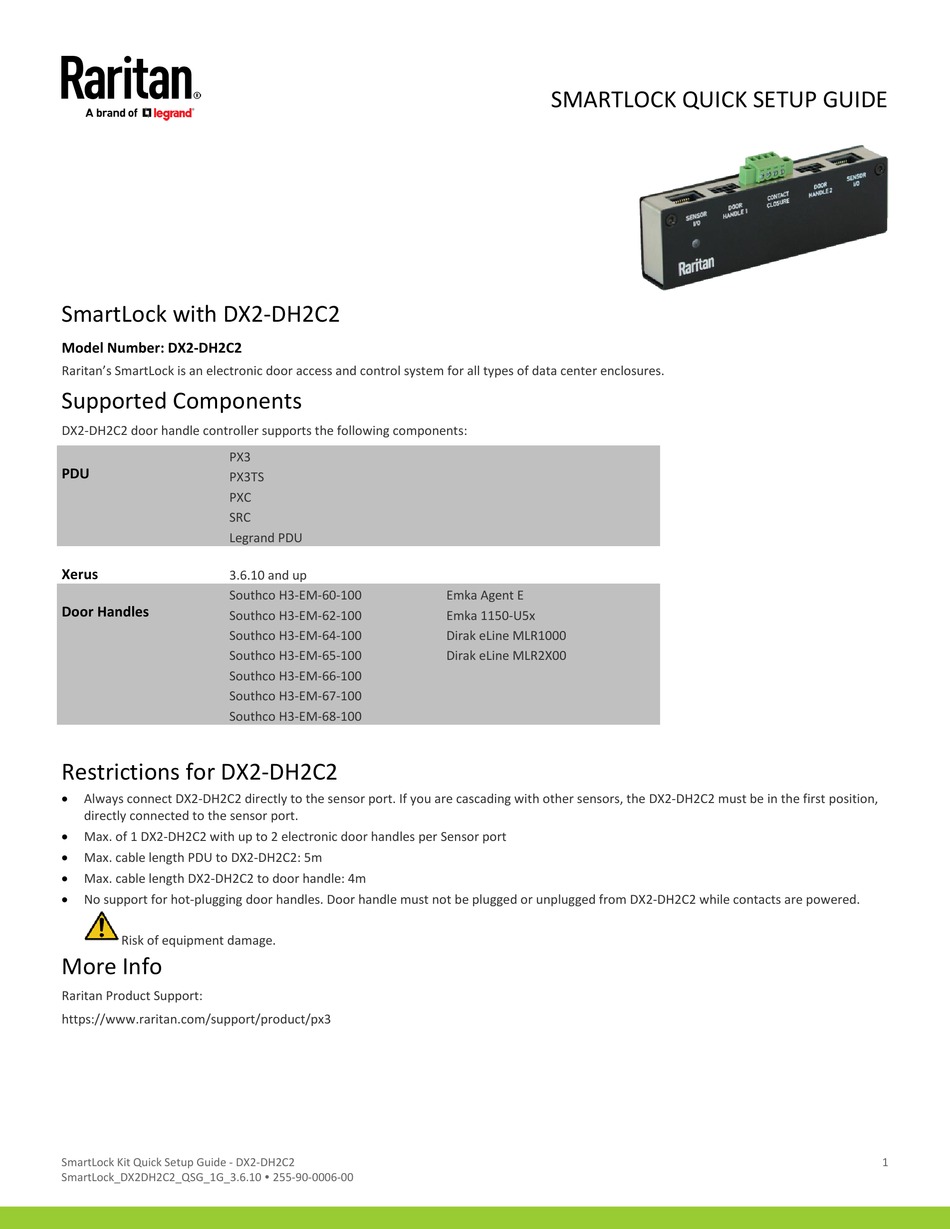

SmartLock with DX2-DH2C2
Model Number: DX2-DH2C2
Raritan's SmartLock is an electronic door access and control system for all types of data center enclosures.
Supported Components
DX2-DH2C2 door handle controller supports the following components:
PX3
PDU
PX3TS
PXC
SRC
Legrand PDU
Xerus
3.6.10 and up
Southco H3-EM-60-100
Door Handles
Southco H3-EM-62-100
Southco H3-EM-64-100
Southco H3-EM-65-100
Southco H3-EM-66-100
Southco H3-EM-67-100
Southco H3-EM-68-100
Restrictions for DX2-DH2C2
•
Always connect DX2-DH2C2 directly to the sensor port. If you are cascading with other sensors, the DX2-DH2C2 must be in the first position,
directly connected to the sensor port.
•
Max. of 1 DX2-DH2C2 with up to 2 electronic door handles per Sensor port
•
Max. cable length PDU to DX2-DH2C2: 5m
•
Max. cable length DX2-DH2C2 to door handle: 4m
•
No support for hot-plugging door handles. Door handle must not be plugged or unplugged from DX2-DH2C2 while contacts are powered.
Risk of equipment damage.
More Info
Raritan Product Support:
https://www.raritan.com/support/product/px3
SmartLock Kit Quick Setup Guide - DX2-DH2C2
SmartLock_DX2DH2C2_QSG_1G_3.6.10  255-90-0006-00
SMARTLOCK QUICK SETUP GUIDE
Emka Agent E
Emka 1150-U5x
Dirak eLine MLR1000
Dirak eLine MLR2X00
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Raritan SmartLock DX2-DH2C2 and is the answer not in the manual?

Questions and answers

Related Manuals for LEGRAND Raritan SmartLock DX2-DH2C2

Summary of Contents for LEGRAND Raritan SmartLock DX2-DH2C2

  • Page 1 Model Number: DX2-DH2C2 Raritan’s SmartLock is an electronic door access and control system for all types of data center enclosures. Supported Components DX2-DH2C2 door handle controller supports the following components: PX3TS Legrand PDU Xerus 3.6.10 and up Southco H3-EM-60-100 Emka Agent E...
  • Page 2 SENSOR I/0 RJ-45 ports Use a standard category cable to connect to the PX3, PX3TS, PXC, SRC, or Legrand PDU Sensor Port: DOOR HANDLE 1 - DOOR HANDLE 2 Electronic door handle ports Use wiring provided with your door handles.
  • Page 3  Bracket installed onto DX2-DH2C2's bottom:  Bracket installed onto the side of DX2-DH2C2: Next Steps Once the physical connections are complete, login to your PX PDU to use door handle features in the web interface. Web Configuration Peripherals • Click Peripherals in the Main menu to view the sensors that have been discovered.
  • Page 4 SmartLock Click Smart Lock in the Main menu to open the Door Handle options. • • Smart Lock Controller section on top displays the physical connection to the DX2-DH2C2. • Door Handle 1 and Door Handle 2 correspond to the labels on the sensor. SmartLock Kit Quick Setup Guide - DX2-DH2C2 SmartLock_DX2DH2C2_QSG_1G_3.6.10 ...
  • Page 5 Settings • Click Edit settings. • Door Handle Type: Select your door handle's model. If your specific Southco H3-EM model is listed, select it. For all other supported Southco H3-EM models, select "Southco H3-EM".  Timeout: Specify how long the door handle lock can remain open after someone opens the door handle via a smart card or via remote •...
  • Page 6 • After these configurations, return to the Peripherals Devices page. This page now displays state, type and Position options for each configured component. Optional Setting: Unlock Front and Rear Doors Simultaneously By default, the PDU configuration is set to unlock only one lock at a time to preserve power. You must change the Active Powered Dry Contact Limit to 2 if you require unlocking the front and rear door simultaneously at the rack.
  • Page 7 • Data Center (EDM) association of PDU, Rack, and Door • Door Access Management: Associating the card reader to the rack and user authorization See the Power IQ help for further instructions: https://www.sunbirddcim.com/ SmartLock Kits Southco Door Lock Kits EMKA Door Lock Kits SML-KIT-CARD-04: 2 H3EM-66, DX2-DH2C2 SML-KIT-EKA-AGE-1D: 1 EKA-AgentE, DX2-DH2C2 SML-KIT-CARD-05: 2 H3EM-66, DX2-DH2C2, Retrofit KIT...
