MikroTik Wireless Wire nRAY Quick Start Manual

EN - English - Quick Guide:
This device needs to be upgraded to RouterOS v7.10 or the latest stable version, to ensure compliance with local authority regulations!
It is the end users' responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be installed according to instructions.

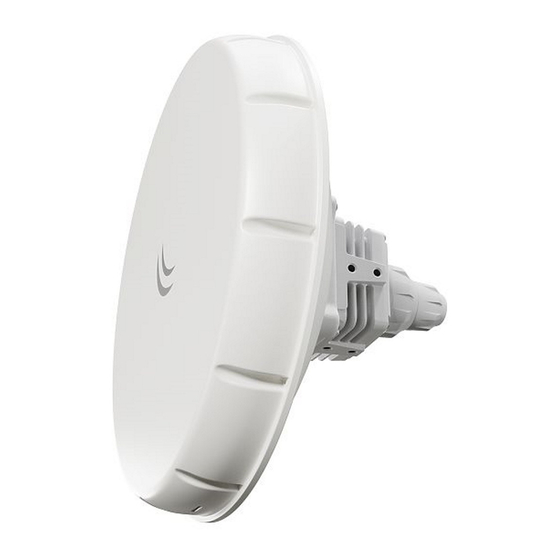

This "nRAY" series Quick Guide covers models: nRAYG-60ad (nRAY 60G), nRAYG-60adpair (Wireless Wire nRAY).
This is a wireless network device. You can find the product model name on the case label (ID).
The most important technical specifications for this product can be found on the last page of this Quick Guide.
Please visit the user manual page on
Technical specifications, brochures, and more info about products at
Configuration manual for software in your language with additional information can be found
If you need help with configuration, please seek a
First steps:
Take the Ethernet port cover from the package;
Guide Ethernet cable through the opening;
Plug into the Ethernet port and screw clockwise tightly, to ensure water protection;
Connect the PoE injector into the computer;
Connect the power adapter to the PoE injector;
Download WinBox configuration tool
Default IP: 192.168.88.1, user name:
sticker;
Once connected, configure the device, so it has an active Internet connection
Click the "Check for updates" button and update RouterOS to the latest version;
For a manual update, visit the products page at
"Support&Downloads" menu;
Upload downloaded packages to the Winbox "Files" menu and reboot the device;
By upgrading your RouterOS software to the latest version, you can ensure optimal performance, stability, and security updates;
Connect again and select your Region in the Wireless menu, W60G tab, to apply country regulation settings;
For nRAY 60G models, set up your router password in the QuickSet menu, to the right and repeat it, it will be use
Safety Information:
Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents. The installer should be familiar with network structures, terms, and concepts.
Use only the power supply and accessories approved by the manufacturer, which can be found in the original packaging of this product.
This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the
Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device.
This product is intended to be mounted outdoors on a pole but can also be installed indoors. Please read the mounting instructions carefully before beginning
installation. Failure to use the correct hardware and configuration or to follow the correct procedures could result in a hazardous situation for people and
damage to the system.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own
risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power adapter from the power outlet.
This is a Class A product. In a domestic environment, this product might cause radio interference in which case the user might be required to take adequate
measures!
Exposure to Radio Frequency Radiation:
environment. This MikroTik device should be installed and operated no closer than 53 centimeters from your body, occupational user, or the general public.
Manufacturer: Mikrotikls SIA, Unijas 2, Riga, Latvia, LV1039.
BG - Български. Бързо ръководство:
Това устройство трябва да бъде надстроено до RouterOS v7.10 или най-новата стабилна версия, за да се гарантира спазването на местните
наредби!
Крайните потребители са отговорни да спазват местните разпоредби, включително работа в рамките на законни честотни канали, изходна
мощност, изисквания за окабеляване и изисквания за динамичен избор на честота (DFS). Всички радиоустройства MikroTik трябва да бъдат
инсталирани съгласно инструкциите.
Това бързо ръководство за серията "nRAY" обхваща модели: nRAYG-60ad (nRAY 60G), nRAYG-60adpair (Wireless Wire nRAY).
Това е устройство за безжична мрежа. Можете да намерите името на модела на продукта на етикета на регистъра (ID).
Най-важните технически спецификации за този продукт могат да бъдат намерени на последната страница на това Кратко ръководство.
Моля, посетете страницата с ръководството за потребителя на
Или сканирайте QR кода с мобилния си телефон.
Технически спецификации, брошури и повече информация за продуктите
Ръководство за конфигуриране на софтуер на вашия език с допълнителна информация можете да намерите на
Ако имате нужда от помощ при конфигуриране, моля, потърсете консултант
https://mt.lv/um for the full up-to-date user manual. Or scan the QR code with your mobile phone.
consultant https://mikrotik.com/consultants
https://mt.lv/winbox ;
admin and there is no password, for the paired models IP: 192.168.88.2/192.168.88.3, please find the password on the
https://mikrotik.com/products
This MikroTik equipment complies with the European Union radiation exposure limits set forth for an uncontrolled
https://mt.lv/um-bg
https://mikrotik.com/products
at https://mt.lv/help
https://mt.lv/configuration
to find your product. The required packages are accessible under the
за пълното актуализирано ръководство за употреба.
на https://mikrotik.com/products
https://mikrotik.com/consultants
;
d to log in next time.
https://mt.lv/help-bg
