MikroTik CCR1009-7G-1C-1S+ Manual
Hide thumbs Also See for CCR1009-7G-1C-1S+:

Advertisement

Quick Links

CCR1009-7G-1C-1S+
CCR1009-7G-1C-1S+

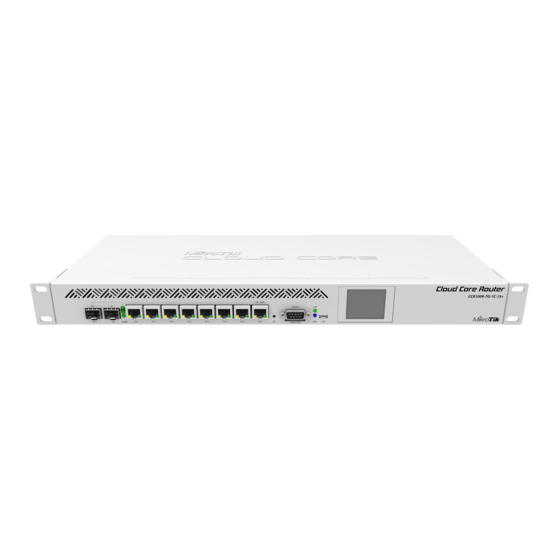

 1U rackmount, 7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1.2 GHz CPU, 2GB RAM, LCD panel, Dual Power
supplies, SmartCard slot, RouterOS L6.

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
The Installation of the equipment must comply with local and national electrical codes.
This unit is intended to be installed in the rackmount. Please read the mounting instructions carefully before beginning installation. Failure to use the
correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.
This product is intended to be installed indoors. Keep this product away from water, fire, humidity or hot environments.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your
own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik devices must be professionally installed.

Quick start

Mount unit or place on the flat surface, please see
Connect two powering units to the AC source using provided power cords.
The Initial connection has to be done via the Ethernet cable, using the MikroTik Winbox utility.
Use Winbox to connect to the default IP address of 192.168.88.1 from any port, with the username admin and no password.
We recommend clicking the "Check for updates" button and updating your system software to the latest version to ensure the best performance
and
stability. Detailed info on how to upgrade the device
Set up your password to secure the device.

Mounting

The device is designed to use indoors and it can be mounted in a rackmount enclosure using provided rack mounts, or it can be placed on the desktop.
Please attach rubber pegs on the bottom of the router if the desired placement is on the flat surface or use a Phillips screwdriver to attach rackmount ears
on both sides of the device if designated use is for rackmount enclosure:
Mounting
paragraph for instructions.
https://mt.lv/upgrade
;

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCR1009-7G-1C-1S+ and is the answer not in the manual?

Questions and answers

Summary of Contents for MikroTik CCR1009-7G-1C-1S+

  • Page 1 Connect two powering units to the AC source using provided power cords. The Initial connection has to be done via the Ethernet cable, using the MikroTik Winbox utility. Use Winbox to connect to the default IP address of 192.168.88.1 from any port, with the username admin and no password.
  • Page 2 Attach rack ears to both sides of the device and tighten four screws to secure them in place, as shown in the picture.  Place the device in a rackmount enclosure and align with the holes so that the device fits conveniently. Tighten screws to secure it in place.
  • Page 3 Fastening set for rackmount case K-10. Two Rackmount Case Side Brackets. USB A Female to Micro B cable. Please visit wiki pages for MikroTik SFP module compatibility table: https://wiki.mikrotik.com/wiki/MikroTik_SFP_module_compatibility_table Specifications For more information about this product, specification and pictures please visit our web page: https://mikrotik.com/product/CCR1009-7G-1C-1Splus...
  • Page 4 . Сделано в Китае, Латвии или Литве. Cм. на упаковке. Для получения подробных сведений о гарантийном обслуживании обратитесь к продавцу. Информация об импортерах продукции MikroTik в Российскую Федерацию: https://mikrotik.com/buy/europe/russia Продукты MikroTik, которые поставляются в Евразийский таможенный союз, оцениваются с учетом соответствующих требований и...
  • Page 5 País De Origen: Letonia; Lituania; China (Republica Popular); Estados Unidos De America; Mexico. Por favor contacte a su distribuidor local para preguntas regionales específicas. La lista de importadores se puede encontrar en nuestra página de inicio – https://mikrotik.com/buy/latinamerica/mexico CE Declaration of Conformity Manufacturer: Mikrotikls SIA, Brivibas gatve 214i Riga, Latvia, LV1039.
