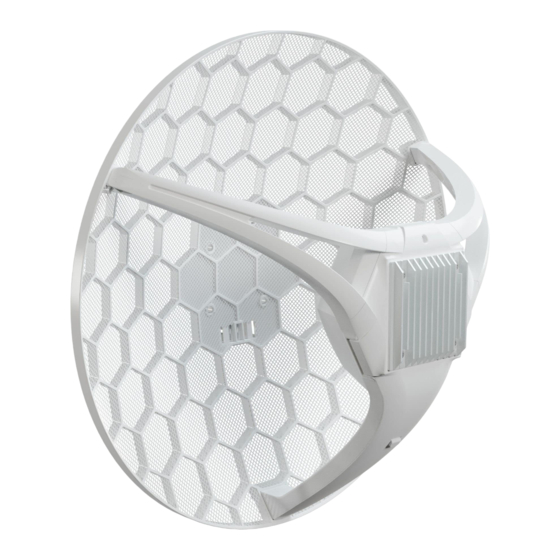

LHG LTE18 kit
(LHGGM&EG18-EA)
Safety Warnings
Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be
familiar with standard practices for preventing accidents.
Ultimate disposal of this product should be handled according to all national laws and regulations.
All installation methods for mounting an access point on any wall surface are subject to the acceptance
of local jurisdiction.
The Installation of the equipment must comply with local and national electrical codes.
This product is intended to be mounted outdoors on a pole. Please read the mounting instructions
carefully before beginning installation. Failure to use the correct hardware and configuration or to
follow the correct procedures could result in a hazardous situation for people and damage to the
system.
Use only the power supply and accessories approved by the manufacturer, which can be found in the
original packaging of this product.
Read the installation instructions before connecting the system to the power source.
We cannot guarantee that no accidents or damage will occur due to the improper use of the device.
Please use this product with care and operate at your own risk!
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging
the power plug from the power outlet.
It is the customer's responsibility to follow local country regulations, including operation within legal
frequency channels, output power, cabling requirements, and Dynamic Frequency Selection (DFS)
requirements. All Mikrotik radio devices must be professionally installed.
This is a class A device. In a domestic environment, this product might cause radio interference in
which case the user might be required to take adequate measures.
Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the European
Union radiation exposure limits set forth for an uncontrolled environment. This MikroTik device

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LHG LTE18 kit and is the answer not in the manual?

Questions and answers

Summary of Contents for MikroTik LHG LTE18 kit

  • Page 1 This is a class A device. In a domestic environment, this product might cause radio interference in which case the user might be required to take adequate measures. Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the European Union radiation exposure limits set forth for an uncontrolled environment. This MikroTik device...
  • Page 2: Quick Start

    RouterOS software to the latest version to ensure the best performance and stability. Must have a valid SIM card inserted. 12.To manually update the device, please go to https://mikrotik.com/download 13.Choose ARM64 packages for this device and download them to your PC. 14.Upload downloaded packages to the WebFig "Files" menu and reboot the device.
  • Page 3: Case Assembly

    Case assembly 1.Attach the two legs to the LHG case by sliding them onto the respective sides, the legs are different and cannot be exchanged (when looking at the product place it that the cover for the Ethernet port is in front of you, leg marked R is for the right side, leg marked L is for the left side).
  • Page 4 2.Connect PoE adapter to the PC or other network device by using the adapter Ethernet cable marked DATA; 3.Connect the power cord to the adapter, and then plug the power cord into a power outlet. Mounting 1.Slide the included metallic mounting rings into the two slots on the back of the antenna dish. 2.Attach the unit to a pole, with the Ethernet port pointing downward.
  • Page 5 6.Optional: If required, before mounting the unit, you can insert the included 5-degree adjustment adapter into the top or bottom slot where the mounting ring is inserted. This will create an additional upward or downward angle when the unit is tightened to a vertical pole. 7.Insert a 5-degree angle adapter to one of the slots and remount the unit.
  • Page 6: Reset Button

    Expansion slots and ports Product code LHGGM&EG18-EA CPU 88F3720 800 MHz CPU architecture ARM 64bit Size of RAM 256 MB Storage 16 MB flash Number of 1G Ethernet ports 1 LTE modem R11mL-EG18-EA TAC 86981604 LTE category 18 (1.2Gbps Downlink, 150Mbps Uplink) LTE FDD bands 1 (2100MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 38 (2600MHz) / 40 (2300MHz) 3G category R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
  • Page 7: Operating System Support

    через дробь. Первая цифра означает номер года (последняя цифра года), две последующие означают номер недели. Изготовитель: Mikrotikls SIA, Aizkraukles iela 23, Riga, LV-1006, Латвия, support@mikrotik.com. Сделано в Китае, Латвии или Литве. Cм. на упаковке. Для получения подробных сведений о гарантийном обслуживании обратитесь к продавцу.
  • Page 8: Ce Declaration Of Conformity

    Hereby, Mikrotīkls SIA declares that the radio equipment type LHGGM&EG18-EA is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://mikrotik.com/products Manufacturer: Mikrotikls SIA, Brivibas gatve 214i Riga, Latvia, LV1039.
  • Page 9 TX tramite le normative ETSI. Per informazioni più dettagliate consultare la Dichiarazione di conformità sopra / Este dispositivo MikroTik cumple con los límites máximos de potencia TX a través de las normas ETSI. Para obtener información más detallada, consulte la Declaración de conformidad anterior / Это...
