Woobm-USB

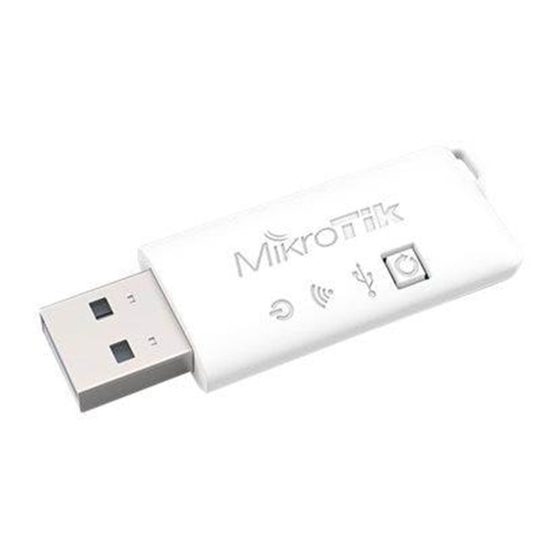

The Woobm is a WiFi-to-serial bridge. This device enables wireless access to RouterBOARD devices which have a USB port but do not have wireless
interfaces. The device operates in 2GHz 802.11b/g/n wireless mode and supports both client and access point modes, which can be protected with a WPA
wireless password.
Powering
The device accepts power from the USB port of the RouterBOARD device.
First startup
Connect your Woobm-USB to the USB port, open a wireless network with SSID: WoobmAP will be created. Connect to device and open device IP address
in a web browser.
Default Woobm-USB IP is 192.168.4.1
A device running RouterOS will automatically mount as a serial USB device and provide access after successful login.
WEB interface
WEB interface allows access to the serial port from devices equipped with an 802.11b/g/n 2.4GHz wireless module.
Web interface default page is "Home" From the home page, it is possible to connect and configure RouterOS neighbor devices (MikroTik devices in the
same network) Press on a device IP address to establish a connection:

Advertisement

loading
Need help?

Need help?

Do you have a question about the Woobm-USB and is the answer not in the manual?

Questions and answers

Related Manuals for MikroTik Woobm-USB

Summary of Contents for MikroTik Woobm-USB

  • Page 1 The device accepts power from the USB port of the RouterBOARD device. First startup Connect your Woobm-USB to the USB port, open a wireless network with SSID: WoobmAP will be created. Connect to device and open device IP address in a web browser.
  • Page 2 By opening the Terminal tab, Woobm-USB will try to emulate the USB serial interface. On a successful attempt "Connection successful! " message will appear above the terminal window. You can enter commands from the keyboard or use key buttons to send out commands through the USB serial interface.
  • Page 3 Properties Property Description string Identity ( ; Default:  Mikrotik Device identity is used for the DHCP client as the 'hostname' parameter when reporting it to the DHCP server and for neighbor discovery. integer Telnet port ( ; Default:  23 Port used for incoming telnet requests integer Baud-rate (...
  • Page 4 WPA-PSK and WPA2-PSK SSID MAC ( ; Default: ) Station MAC ( ; Default: ) IP address ( ; Default: ) Gateway ( ; Default: ) Netmask ( ; Default: ) WiFi AP   settings part provides wireless settings for Woobm-USB in Access Point mode.
  • Page 5 Property Description SSID ( string ; Default: ) SSID of Woobm-USB Access Point Password ( string ; Default: ) WPA-PSK and WPA2-PSK Channel (; Default: )  6 Wireless channel used for AP Auth. mode (; Default: ) Hidden ( On/Off ; Default:  Off Max conn ( 1 to 4 ;...
  • Page 6 Use the upgrade firmware tab for manual firmware upgrade. Firmware is available in the Product Support & Download section on our web page. Telnet access It's possible to use Telnet clients to access the serial port. For Telnet access open Woobm-USB address in telnet client. Woobm-USB forwards serial port to telnet client.

  • Page 7: Innovation, Science And Economic Development Canada

    20 cm between the radiator and your body. Innovation, Science and Economic Development Canada Model Woobm-USB 7442A-WBM This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 8: Ce Declaration Of Conformity

    Информация о дате изготовления устройства указана в конце серийного номера на его наклейке через дробь. Первая цифра означает номер года (последняя цифра года), две последующие означают номер недели. Изготовитель: Mikrotikls SIA, Aizkraukles iela 23, Riga, LV-1006, Латвия, support@mikrotik.com. Сделано в Китае, Латвии или Литве. Cм. на упаковке.
  • Page 9 Hereby, Mikrotīkls SIA declares that the Woobm-USB is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://mikrotik.com/products Frequency bands terms of use Frequency range (for applicable models) Channels used Maximum Output Power (EIRP) Restriction...
