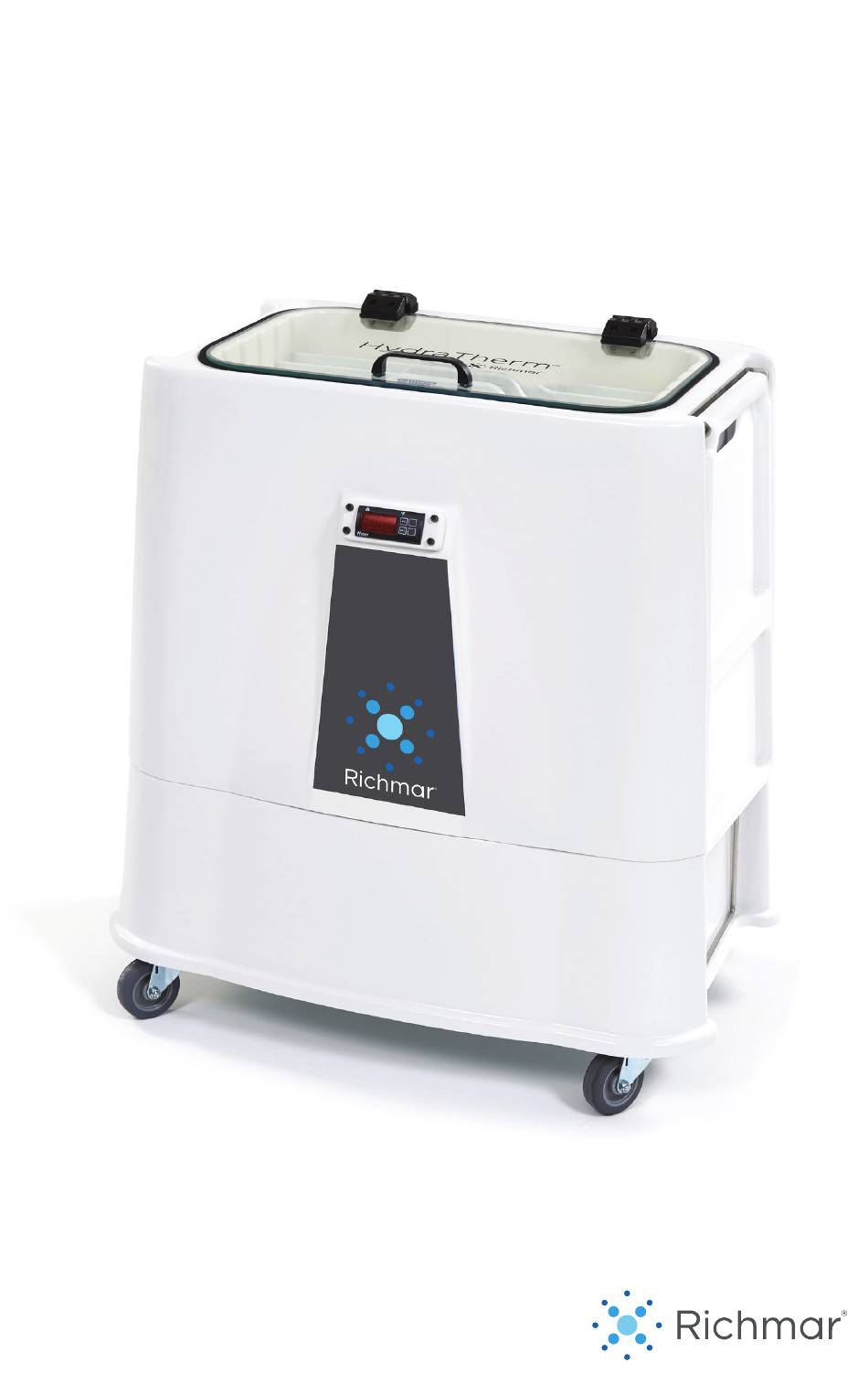

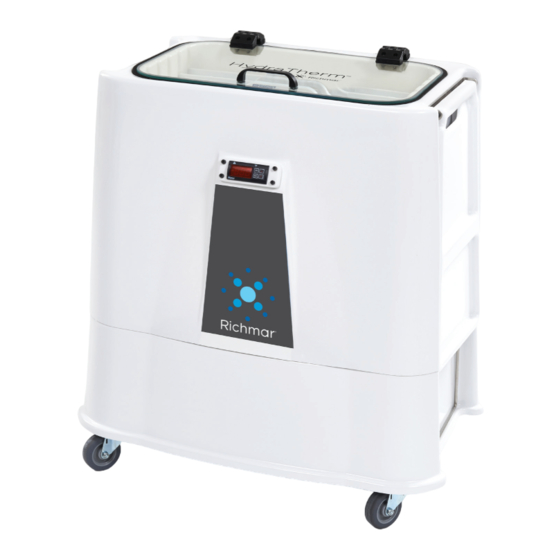

HydraTherm Deluxe
OPERATION MANUAL
HT-TU-DLX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HydraTherm Deluxe and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Richmar HydraTherm Deluxe

Summary of Contents for Richmar HydraTherm Deluxe

  • Page 1 HydraTherm Deluxe OPERATION MANUAL HT-TU-DLX...

  • Page 2: Table Of Contents

    Parts and Accessories ..................17 Appendix A - EMC Tables ................18 INTENDED USE: The HydraTherm Deluxe is intended for use in treatment facilities and rehabilitation clinics to heat hot packs for the purpose of moist heat therapeutic treatment. This device complies with part 18 of the FCC Rules.

  • Page 3: Warranty

    Compass Health Brands HydraTherm Health Brands or the selling dealer Deluxe. Compass Health Brands warrants under this warranty: that your HydraTherm Deluxe is free of A claim must be made within the defects in material and workmanship. This warranty period to Compass Health warranty shall remain in effect for two (2) Brands or the selling dealer.

  • Page 4: Foreward

    HydraTherm Deluxe, please read this manual and instructions at any time without obligation thoroughly and follow all instructions prior to on the part of Compass Health Brands.

  • Page 5: Precautionary Instructions

    The HydraTherm Shelf load limit is location of temperature reading, and 7.5 lb (3.4 kg). type of thermometer used. Dependent • DO NOT sit on the HydraTherm Deluxe on these factors, the temperature or the HydraTherm Shelf. reading may vary by +/- 5°F/1°C. •...

  • Page 6: Detailed Device Description

    • The water temperature in the • A person MUST be present when using HydraTherm Deluxe is adjustable from the drainage feature to ensure the pump 120°F (49°C) to 140°F (60°C). is switched off when the tank is empty. NOTE: According to the CPSC scalding...
  • Page 7 Drain Valve and Removable Power Indicator Lamp Filter Heat/Drain Select Switch The HydraTherm Deluxe comes standard NOTE: The front rail of the first divider is thin with the Divider System as shown below in compared to the other dividers and should Figure 1.

  • Page 8: Recommended Pack Setup

    RECOMMENDED PACK SETUP When purchasing the HydraTherm Deluxe, The recommendation for setup of clip-on customers have the option of including shelves and pack placement is illustrated 12 HydraHeat Packs with their purchase. below (Fig. 2). This includes three of each size: universal, When retrieving a HydraHeat Pack, it is cervical, large and oversize.

  • Page 9: Installation

    INSTALLATION The HydraTherm Deluxe is designed to be WARNING simple and easy to use. DO NOT attempt to use the unit if it is not Remove all of the contents inside the properly grounded. HydraTherm Deluxe and then place the CAUTION dividers into the unit.

  • Page 10: Device User Interface

    DEVICE USER INTERFACE TEMPERATURE SETTING The HydraTherm Deluxe is equipped with a digital thermostat and Temperature • It can take several hours for the water to Display, along with a Low Water Sensor. reach the Set Temperature. The default When the Low Water Sensor senses Set Temperature is 135°F (57°C), to...

  • Page 11: Maintenance

    Quarantine the Unit. Contact Compass Health Brand Technical Service. MAINTENANCE WARNING The HydraTherm Deluxe is equipped with an immersion type heating element and a Contact your local distributor for Digital Thermostat Controller to maintain information regarding disposal of the unit the water temperature.

  • Page 12: Cleaning Instructions

    STEP 3 It is recommended to clean the your Remove Divider System to access bottom HydraTherm Deluxe once a month. It is well of the HydraTherm Deluxe tank. recommended to wipe off the heating sensor weekly.

  • Page 13: Troubleshooting

    TROUBLESHOOTING OPERATION: HEATING MODE PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Device fails to power Mains Fuse(s) open Check MAINS fuse(s) with OHM ON. The Power Meter for continuity. Replace if Indication Lamp does open. not illuminate. Facility outlet not powered Check facility outlet for proper operation Faulty Power Cord Replace Power Cord...
  • Page 14 TROUBLESHOOTING OPERATION: HEATING MODE (CONTINUED) PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Device begins heating Verify SETPOINT setting/ Set to desired temperature (see but never reaches value manual) desired temperature Digital Thermostat Replace Digital Thermostat and/or set point. Both Controller Control the Power Indication Lamp and Digital Power Contactor Replace Heating Element Power...
  • Page 15 TROUBLESHOOTING OPERATION: DRAIN MODE - DELUXE MODELS ONLY PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION Pump does not come PUMP electrical connection Re-seat electrical connection ON - Device Power to 3-position receptacle Indication Lamp located on the left hand illuminated, and HEAT side loose or disconnected.

  • Page 16: Technical Specifications

    TECHNICAL SPECIFICATIONS SPECIFICATIONS Supply Voltage 110-120VAC Line Frequency 50/60 Hz Power Consumption 110-120VAC; 1000 W Adjustable Temperature Range 120°F (49°C) ~ 140°F (60°C) +/- 5°F (+/- 3°C) Safety Thermal Control Accuracy 175°F +/- 5°F (79°C +/- 3°C) Weight (Dry) Deluxe Model 75 lbs (34.02 Kg) All Models (Total Working Capacity) 350 lbs (158.76 Kg)

  • Page 17: Device Descriptions

    DEVICE DESCRIPTIONS HYDRATHERM DELUXE MODELS ITEM # DESCRIPTION VOLTAGE REQUIREMENTS HT-TU-DLX Hydratherm Deluxe 110-120VAC HT-TU-D12 Hydratherm Deluxe with 110-120VAC HydraHeat Packs PARTS & ACCESSORIES REPLACEMENT PARTS ITEM # DESCRIPTION HT-TU-X Power Cord HT-TU-DHV Drain Hose Valve HT-TU-SHFKIT Shelf Assembly HT-TU-CLIP...
  • Page 18 GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC EMISSIONS The HydraTherm Deluxe is intended for use in the electromagnetic environment specified below. The customer or the user of the HydraTherm Deluxe should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment –...
  • Page 19 GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC IMMUNITY TheHydraTherm Deluxe is intended for use in the electromagnetic environment specified below. The customer or the user of the HydraTherm Deluxe should assure that it is used in such an environment. Immunity test...

  • Page 20: Appendix A - Emc Tables

    GUIDANCE AND MANUFACTURER’S DECLARATION – ELECTROMAGNETIC IMMUNITY The HydraTherm Deluxe is intended for use in the electromagnetic environment specified below. The customer or the user of the HydraTherm Deluxe should assure that it is used in such an environment. Immunity test...
  • Page 21 RECOMMENDED SEPARATION DISTANCES BETWEEN PORTABLE AND MOBILE RF COMMUNICATIONS EQUIPMENT AND THE HYDRATHERM DELUXE The HydraTherm Deluxe is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the HydraTherm...
  • Page 22 NOTES _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________...
  • Page 23 NOTES _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________ _______________________________________________________________________...
  • Page 24 Manufactured for Compass Health Brands Corp. Toll Free 1.888.549.4945 6753 Engle Road Middleburg Heights, OH 44130 USA HT-TU-DLX_UserManual_E_240206 richmarweb.com ©2024 Compass Health Brands Corp. Made in Mexico...
