stellar labs 7621 Owner's Manual

Heavy-duty telescopic cranes

Hide thumbs Also See for 7621:

Owner's manual (38 pages)

Owner's manual (30 pages)

Owner's manual (36 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

Models:

7621

8621

9621

10621 10630

12621 12630

Notice: A copy of this manual must remain with the equipment at all times.

For a printable download copy, please visit: www.stellarindustries.com

Subject to Change without Notification.

Safety • Operation • Maintenance • Troubleshooting

7630

8630

9630

Stellar Industries, Inc.

190 State Street

Garner, IA 50438

800-321-3741

Fax: 641-923-2811

www.stellarindustries.com

Heavy-Duty

Telescopic Cranes

Owner's Manual

PO Box 169

Rev 1

PN 115278

Courtesy of CraneMarket.com

Table of Contents

Need help?

Do you have a question about the 7621 and is the answer not in the manual?

Questions and answers

Tom Hiser

March 6, 2025

what if I have a boom stuck in the air and the manual override doesn't work?

1 comments:

Mr. Anderson

March 6, 2025

If the boom on your Stellar Labs 7621 is stuck in the air and the manual override is not functioning, follow these steps:

1. Check the Parking Brake – Ensure that the parking brake is engaged.
2. Verify PTO Engagement – Confirm that the Power Take-Off (PTO) is engaged.
3. Check Radio Receiver Power – Ensure there is 12V power going to the radio receiver. If not, trace back to the power source and check for a blown fuse or a loose ground connection.
4. Inspect Transmitter Batteries – Make sure the transmitter batteries are fully charged.
5. Evaluate Hydraulic Pump Performance – Verify that the hydraulic pump is operating at its rated flow (GPMs). Use a flow meter to determine if the pump is weakening. If suspected, contact Stellar Customer Service.

If these steps do not resolve the issue, further inspection of the hydraulic circuit may be necessary.

This answer is automatically generated

Duane Beckwith

June 25, 2025

We have a customers truck in the shop with a stellar 7621 crane on it. They had a fire under the dash I’m looking for a wiring diagram The truck is a 2016 Ford F550. Thanks

Summary of Contents for stellar labs 7621

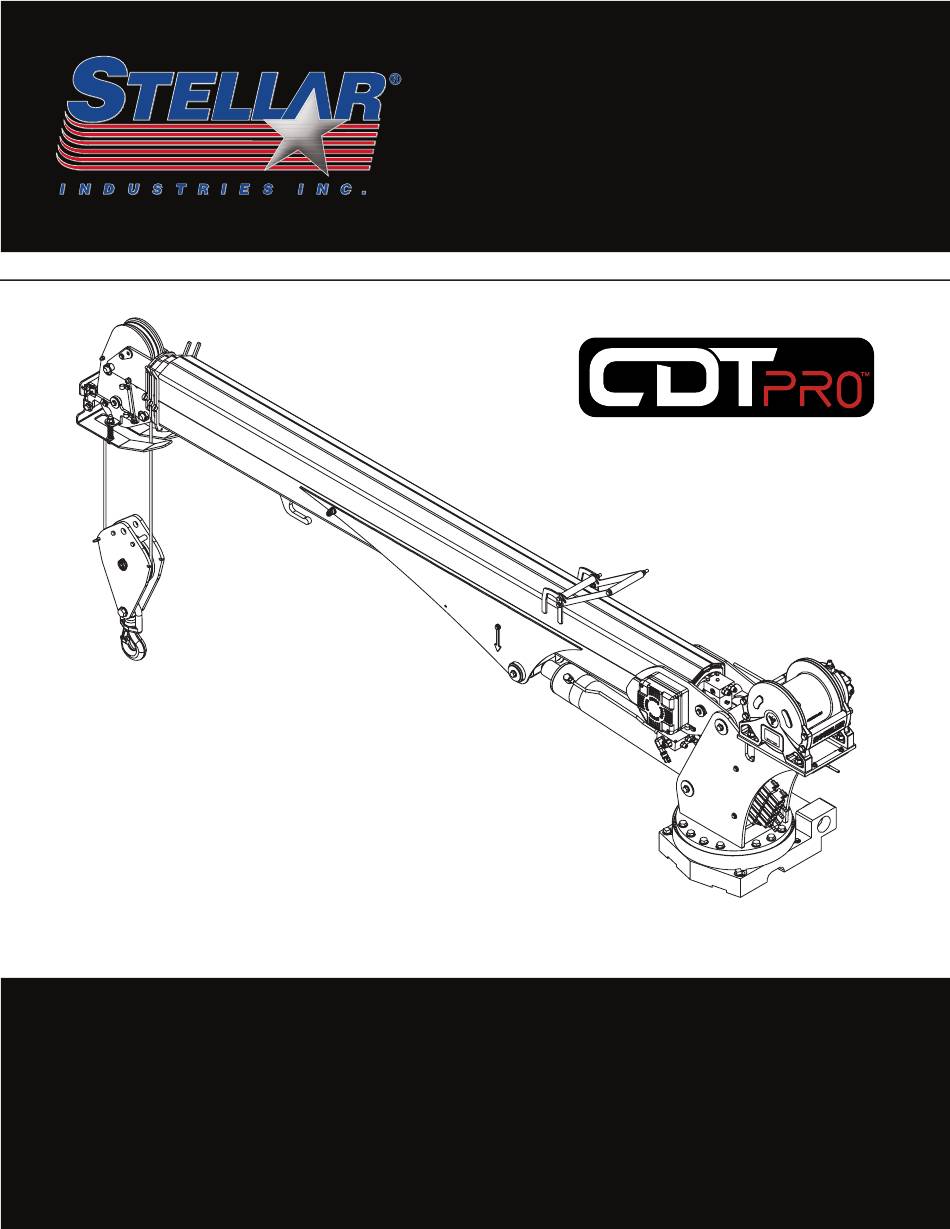

Page 1 Heavy-Duty Telescopic Cranes Owner’s Manual Safety • Operation • Maintenance • Troubleshooting Models: 7621 7630 8621 8630 9621 9630 10621 10630 12621 12630 Notice: A copy of this manual must remain with the equipment at all times. For a printable download copy, please visit: www.stellarindustries.com Stellar Industries, Inc.
