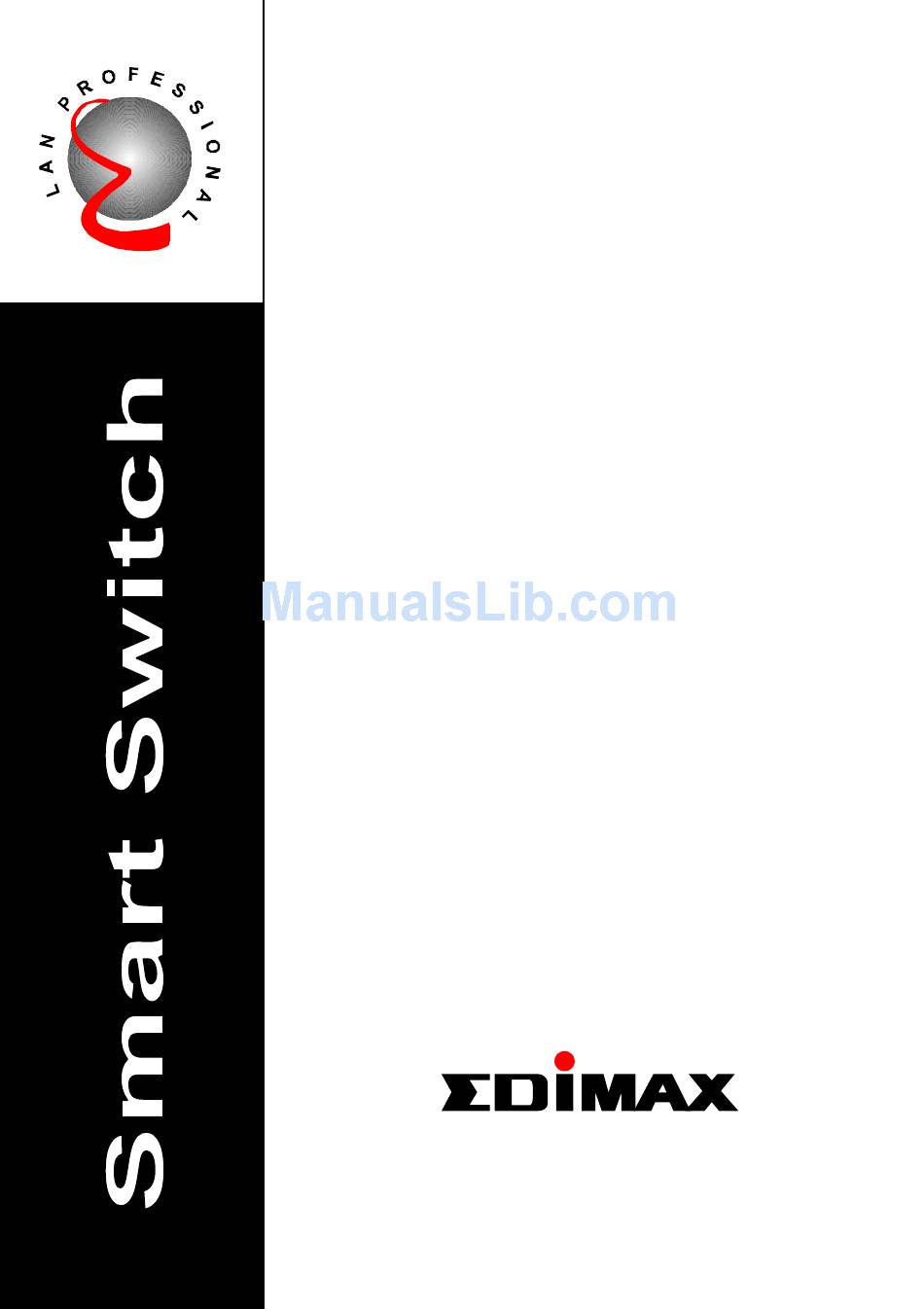

- Page 1 24-Port Fast/Gigabit Ethernet Smart Switch (VLAN, Trunking, QoS) ES-5224R+ ES-5224RF+ ES-5224RE+ ES-3124RE+ User’s Manual...
-
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits of a Class A computing devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference. generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 3: Table Of Contents
Content 1. Introduction ... 2. Features & Specifications ... 3. Package Contents... 4. Hardware Description... 5. Advance Smart Function Setting ... Main Manu... Switch Static Configuration ... 5.2.1 Port Configuration... 5.2.2 Trunk Configuration... VLAN Configuration ... 5.2.3 5.2.3.1 5.2.3.2 5.2.3.3 5.2.4 Misc Configuration ... -
Page 4: Introduction
In addition, all the ports support the MDI/MDI-X auto-detect function. That is to say, you can connect any device (including PC, Switch, Hub) to a port of this switch using a regular cable. The RJ-45 port will auto-detect and auto-switch to the correct MDI/MDI-X mode (do not need to use a specific uplink port or cross-over cable). -
Page 5: Features & Specifications
2. Features & Specifications Features Complies with the IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet (IEEE802.3z, IEEE802.3ab for Gigabit switch) Provides Store-and-Forward architecture and full wire speed filtering and forwarding rates 10/100Mbps Ports support full/half duplex modes and auto-negotiation Provides two Fast Ethernet Modules option (Fast Ethernet Smart Switch): ♦... -
Page 6: Specifications
Expansion Slot Option (Fast Ethernet Switch): ♦ 10/100Mbps UTP connector (RJ-45) ♦ 100M Fiber SC/ST connector (multi/single mode) Expansion Slot Option (Gigabit Ethernet Switch only): ♦ 1000/100/10Mbps UTP connector (RJ-45) ♦ 1000Mbps Fiber SC connector (multi/single mode) Console Port: DB9 × 1... -
Page 7: Package Contents
3. Package Contents Packing list Check the contents of your package for following parts: One Fast/Gigabit Ethernet Smart Switch One User's manual One Power cord One RS-232 Cable If any of the items are missing or damaged, please contact your local dealer. -
Page 8: Hardware Description
All LEDs are located on the front panel of the switch. They serve the purpose of monitoring the operation and performance of the switch at a glance. LED indicators... -
Page 9: Operating Environment
All ports of this switch support the Auto-MDI/MDI-X function. That is to say, you can connect any device (including PC, Switch, Hub) to a port of this switch using a regular cable. The RJ-45 port will auto-detect and auto-switch to the correct MDI/MDI-X mode. (do not need... -
Page 10: Advance Smart Function Setting
Before using advance Configuration Connect to PC Attach a RS-232 serial cable 9-pin male connector to the female connector on the switch. Plug the other side of this cable to your PC. Using Hyper Terminal to connect to Switch In MS-Windows, launch “Hyper Terminal”, create a new connection, and follow these steps: 1. - Page 11 4. Adjust the settings of the communication port. 4.1 Select the using by connect interface such as COM1,COM2 4.2 Select the Bits per second at “9600” 4.3 Set the flow control value as “None”.
-
Page 12: Main Manu
5.1 Main Manu Once you have powered on the swtich, it will boot up automatically and the welcome window will ask you to enter user name and password. If this is your first time to log into the configuration program, then the default user name is “admin” with default password “123”. - Page 13 Main Menu as follows. Switch Static Configuration: Configure the switch. Such as port speed and duplex, trunk configure, VLAN, MISC and QoS. Reboot Switch: Restart the system or configure the switch to default values. Logout: Exit the system.
-
Page 14: Switch Static Configuration
5.2 Switch Static Configuration There are six items to select: Port Configuration: Configure the port state, auto negotiation, speed/duplex and flow control. Trunk Configuration: Configure the trunk group. VLAN Configuration: Configure the VLAN group. Misc Configuration: Display the firmware version, change user name and password. -
Page 15: Port Configuration
5.2.1 Port Configuration In this configuration, you can set the status of each port. Enable: Press Space key to enable or disable this port. “Yes” means the port is enable “No” means the port is disable Auto: You can enable or disable the auto-negotiation of each port. - Page 16 Note: If the trunk group exists, you can see it (ex: TRK1, TRK2 etc.) after port 26, and you can configure all of the items as above. Action-> <Quit>: Exit this menu and return to the previous menu. <Edit>: Configure all items. After finished configure, press Ctrl+A to go back action menu line.
-
Page 17: Trunk Configuration
5.2.2 Trunk Configuration There are seven trunk groups to configure. You can arbitrarily select up to four ports from port 1 ~ port 24 or port 25 ~ port 26 to build a trunk group. Configure a trunk group as the following steps: 1. -
Page 18: Vlan Configuration
This smart switch supports both port-based and Tag-based (802.1Q) VLAN. In the default configuration, VLAN function is disabled. If enable the 802.1Q VLAN, all ports on the switch belong to default VLAN, VID is 1. NOTE: The default VLAN can’t be deleted. -
Page 19: Vlan Configure
5.2.3.1 VLAN Configure In this menu, you can set VLAN mode as port-based VLAN or 802.1Q VLAN or just disable this function. - Page 20 This feature is useful for accommodating devices that you want to participate in the VLAN but that don’t support tagging. This smart switch allows you to set one PVID for each port, the range is 1 ~ 255.
-
Page 21: Create A Vlan Group
5.2.3.2 Create a VLAN Group Create a VLAN group and configure tagged/untagged member ports to it. Create Port-Based VLAN 1. VLAN Name: Type a name for the new VLAN (ex: V1). 2. Grp ID: In port-based VLAN mode, this item means VLAN group ID. - Page 22 Create 802.1Q VLAN 1. VLAN NAME: Type a name for the new VLAN (ex: V2). 2. VLAN ID: The VLAN ID range is 1 ~ 4094, and it’s default VLAN group is 1.You can set up to 256 VLAN groups. 3.
-
Page 23: Edit/Delete A Vlan Group
5.2.3.3 Edit / Delete a VLAN Group In this menu, you can see all the VLAN groups and edit or delete a VLAN group as following steps: 1. Press <Edit> or <Delete> item. 2. Choose the VLAN group that you want to edit or delete and then press Enter. -
Page 24: Misc Configuration
5.2.4 Misc Configuration Display the firmware version, change user name and password. 5.2.4.1 SW version This menu shows the firmware version. Press ESC key to return to the previous menu. -
Page 25: Change Username
5.2.4.2 Change Username 1. Press <Edit> 2. Type a new username. 3. Press Ctrl+A to go back to actions menu line. 4. Press <Save> to save configure. 5.2.4.3 Change User Password In this menu, you can change login password. -
Page 26: Priority Configuration
Select the Port Static Priority option and you will see the following menu. You can set the priority as High or Low for each port. When packets are buffered in this switch, the ports with high priority will have precedence over the ports with low priority. -
Page 27: Reboot Switch
5.3 Reboot Switch Restart the system or configure the switch to default value. 5.3.1 Default Press “y” to reset this switch to default configuration. -
Page 28: Reset
5.3.2 Restart Reboot the switch in software reset. -
Page 29: Troubleshooting
1. Power LED is not lit Check if the power cord is properly connected to the power outlet and the switch. Make sure the power switch at the rear panel is turned ON. 2. Link LED is not lit when connected to the network device...
