Absco Industries
Assembly Instruction Manual

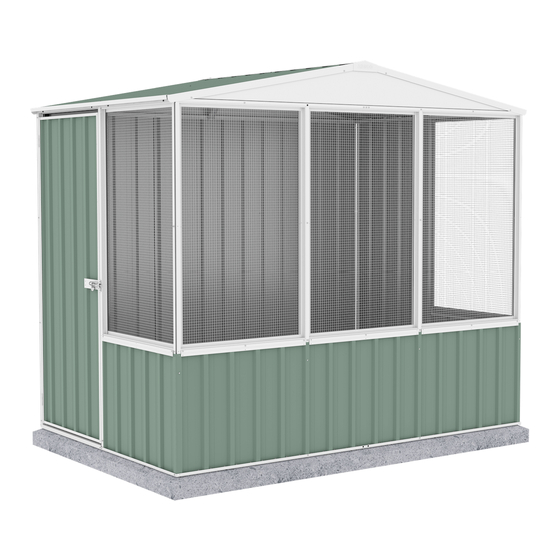

ABSCO CHICKEN COOP
MODEL: A23151GKFD
2.26mW x 1.52mD x 2.00mH
admin@absco.com.au
www.abscosheds.com.au
Model: A23151GKFD
WHEN LAYING YOUR CONCRETE
SLAB, CHAMFER THE 50mm EDGES
DOWNWARDS BY 10mm.
THIS WILL ENSURE THAT
WATER RUN OFF IS KEPT
CLEAR FROM YOUR SHED
PLEASE LEAVE A REVIEW
Tell us about your experience!
Visit www.abscosheds.com.au/review
30/4/24
50mm
10mm
2.1
1
Advertisement
Table of Contents
Related Manuals for ABSCO SHEDS A23151GKFD
Summary of Contents for ABSCO SHEDS A23151GKFD
- Page 1 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH AU: 1800 029 701 admin@absco.com.au N Z: 0800 466 444 www.abscosheds.com.au WHEN LAYING YOUR CONCRETE SLAB, CHAMFER THE 50mm EDGES DOWNWARDS BY 10mm. 50mm 10mm THIS WILL ENSURE THAT WATER RUN OFF IS KEPT...
- Page 2 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH GENERAL INSTRUCTIONS SAFETY NOTES • Before commencing any assembly, read • Some parts may have sharp edges. It is through these instructions in detail to gain advisable to wear gloves when handling these a thorough understanding of assembly items and safety glasses if drilling holes.
- Page 3 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH SHEETING COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION STEEL SHEET STEEL SHEET 1725 x 711mm 1980 x 773mm STEEL SHEET STEEL SHEET 260C 1785 x 773mm 1915 x 773mm...
- Page 4 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH COMPONENT PACKING LIST CHANNEL PACK COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION CHANNEL CHANNEL 315L 315R 1112mm 1112mm CHANNEL CHANNEL 81DL 81DR 1126mm 1126mm CHANNEL CHANNEL 1785mm 1513mm CHANNEL...
- Page 5 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
- Page 6 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH Guide on Joining Spliced Channels The text marked on all parts must be shown on the same side as each other JOIN>> JOIN>> <<JOIN JOIN>> Step 1. Step 2. Position the channels and the Join the fi...
- Page 7 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH PRE-ASSEMBLY OF SPLICED CHANNELS Join together 6 x channel sections using 3 x channel joiners (Part CSJ) NOTE: Some channels may have holes in them - You will need to redrill holes where CSJ joining channel covers them.
-
Page 8: General Overview
ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH GENERAL OVERVIEW Mesh panels not shown for illustrative purposes. 260C Absco Industries Assembly Instruction Manual Model: A23151GKFD 30/4/24... -
Page 9: Roof Panel
ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH ROOF PANEL 2x required FAST001 x3 FAST001 x6 Two prepunched holes to this end of sheet. Absco Industries Assembly Instruction Manual Model: A23151GKFD 30/4/24... -
Page 10: Right Side Panel
ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH RIGHT SIDE PANEL 1x required Part overview Absco Industries Assembly Instruction Manual Model: A23151GKFD 30/4/24... - Page 11 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH RIGHT SIDE PANEL FAST001 x2 Prepare a short sheet Notch out both bottom corners as shown using tinsnips. FAST001 x10 Absco Industries Assembly Instruction Manual Model: A23151GKFD 30/4/24...
-
Page 12: Left Side Panel
ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH LEFT SIDE PANEL 1x required FAST001 x7 Prepare one short sheet Notch out both bottom corners as shown using tinsnips. Absco Industries Assembly Instruction Manual Model: A23151GKFD 30/4/24... - Page 13 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH LEFT SIDE PANEL NOTE: 31D sheet is positioned behind jamb 89B Absco Industries Assembly Instruction Manual Model: A23151GKFD 30/4/24...
-
Page 14: Door Panel Assembly
ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH DOOR PANEL ASSEMBLY FAST001 x12 1x required Position 12A Narrow pan of sheet midway along the to this side door. Side channels of door are to be orientated opposite to top and 20mm fl... - Page 15 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH Turn over the panel and fi t braces. FAST001 x14 Using the jambs as templates drill 3mm holes into the sheet and secure with screws from the outside of the sheet.
- Page 16 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH DOOR PANEL ASSEMBLY FAST009 x6 Lay the LEFT SIDE PANEL Using three rivets per hinge, NOTE: Run the 3mm drill bit face up and lay the DOOR FAST009, secure the door to...
-
Page 17: Rear Panel Assembly
ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH REAR PANEL ASSEMBLY 1x required 260C FAST001 x6 FAST001 x6 Absco Industries Assembly Instruction Manual Model: A23151GKFD 30/4/24... -
Page 18: Front Panel
ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH FRONT PANEL 1x required FAST001 x10 Prepare three short sheets Notch out both bottom corners as shown using tinsnips. Absco Industries Assembly Instruction Manual Model: A23151GKFD 30/4/24... - Page 19 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH FRONT PANEL Fix the jambs from the inside of the front panel as shown. Fixings through the 31D sheet will need to be pre- drilled. FAST001 x18 FAST001 x9 Join the gable...
- Page 20 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH PANEL CONSTRUCTION NOTE: Take care to ensure that all wall panels are not upside down. The top channels of each panel are pre-punched for attaching roof sheeting. Typically base channels are not pre-punched.
- Page 21 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH ROOF CONSTRUCTION Attaching the roof panel to the ridge beam. Fit the second roof Secure the ridge panel. beams to the front and back walls with two screws at each end.
- Page 22 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH FINAL CONSTRUCTION Bend the top and bottom flanges as shown. Hook the bottom flanges under the roof lip flashings and screw the top flanges as shown at both ends of the ridge beam.
- Page 23 ABSCO CHICKEN COOP MODEL: A23151GKFD 2.26mW x 1.52mD x 2.00mH FITTING MESH PANELS The mesh panels are fi xed to the inside of the wall panels. FAST001 x6 There’s six holes in the border of the mesh panel, these are fi xed with FAST001 MESH screws.
- Page 24 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
- Page 25 Lifetime Warranty Statement 1. DEFINITIONS 3. WARRANTY CLAIM PROCEDURE In this document, capitalised terms have the following meaning: 3.1. If, during the Lifetime Warranty Period, You believe the Product has a “ABSCO” means John Scholtes Investments (No. 1) Pty Ltd trading Defect, You must comply with the procedure set out in this clause 3.
- Page 26 4. WARRANTY LIMITATIONS / EXCLUSIONS 4.1. To the extent permitted by law, this warranty will not apply where: the Product has been installed or used for a purpose that is not an Authorised Purpose; the Product has not been installed, assembled, maintained and/or special, indirect or consequential loss or damage of any nature operated in complete compliance with ABSCO’s Product Guide;...
