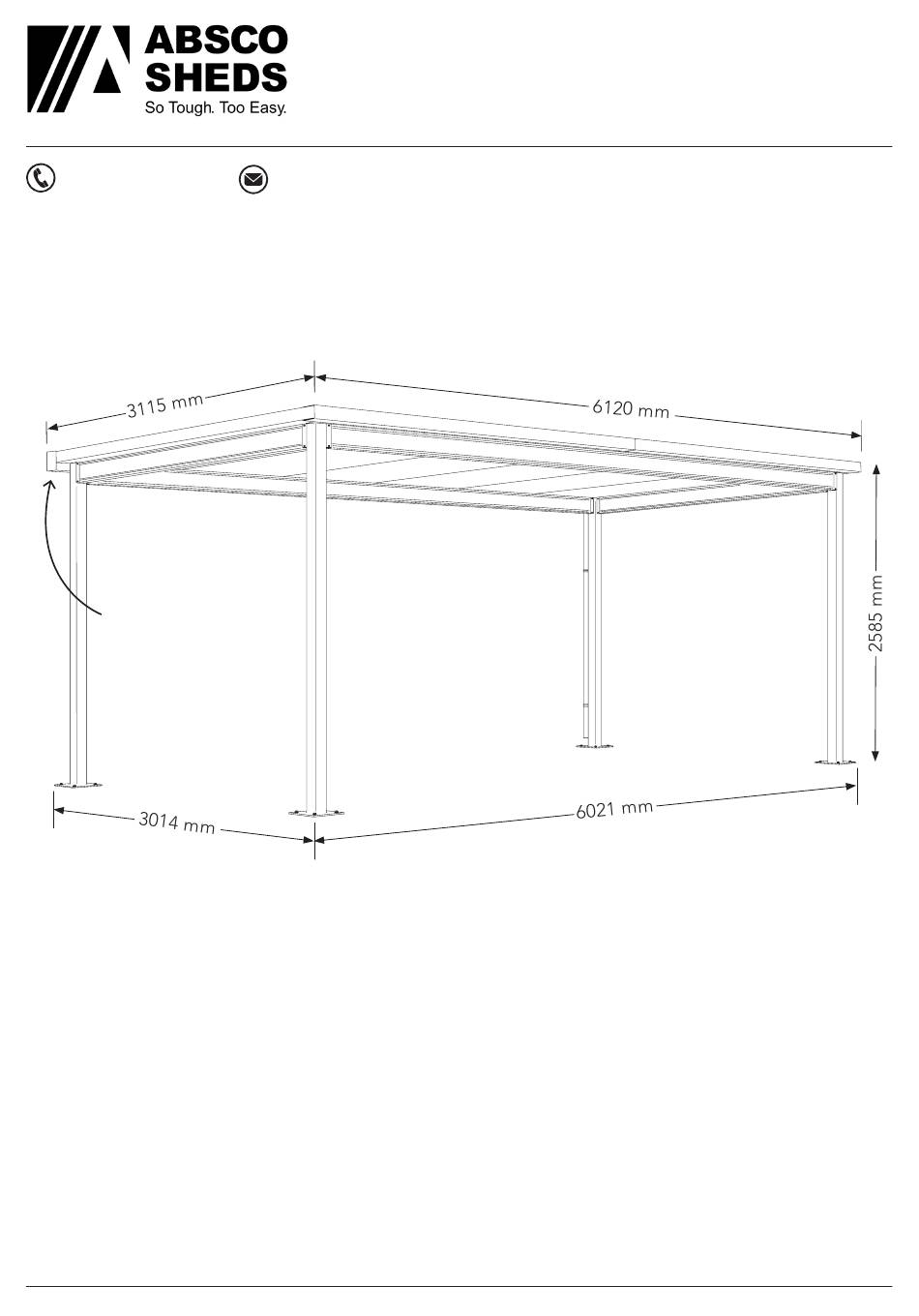

Assembly Instruction Manual

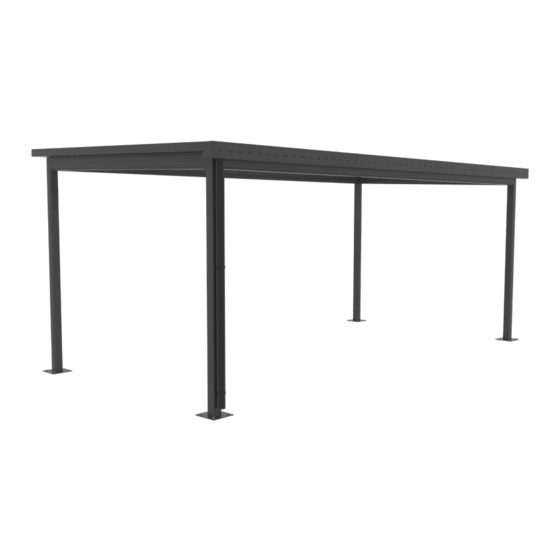

ABSCO SIGNATURE CARPORT
MODEL: ADCPSN3
3.11m W x 6.12m D x 2.60m H
admin@absco.com.au
www.abscosheds.com.au
Model: ADCPSN3
Entry clearance
W: 2674 mm
H: 2250 mm
NOTE - Concrete slab must be a minimum of
100mm thick, 20 MPa concrete reinforced with
SL72 mesh and extend for the full area covered by
the structure.
21/09/23
1.00
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SIGNATURE ADCPSN3 and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS SIGNATURE ADCPSN3

Summary of Contents for ABSCO SHEDS SIGNATURE ADCPSN3

  • Page 1 ABSCO SIGNATURE CARPORT MODEL: ADCPSN3 3.11m W x 6.12m D x 2.60m H AU: 1800 029 701 admin@absco.com.au N Z: 0800 466 444 www.abscosheds.com.au Entry clearance fall to W: 2674 mm gutter H: 2250 mm NOTE - Concrete slab must be a minimum of For construction in non-cyclonic areas Wind rating: N3 as per AS4055-2021.

  • Page 2: Tools Required

    ABSCO SIGNATURE CARPORT MODEL: ADCPSN3 3.11m W x 6.12m D x 2.60m H IMPORTANT INFO - READ BEFORE CONSTRUCTION BEGINS General Safety Read through these instructions in detail to gain Some parts may have sharp edges. It is a thorough understanding of assembly methods recommended to wear gloves when handling and associated details.

  • Page 3: Component List

    ABSCO SIGNATURE CARPORT MODEL: ADCPSN3 3.11m W x 6.12m D x 2.60m H COMPONENT LIST Check off all components, parts shown are not to scale. Short Tall Side posts posts Beam Beam Insulated panel QTY CHECK QTY CHECK QTY CHECK QTY CHECK QTY CHECK AD1 6...
  • Page 4 ABSCO SIGNATURE CARPORT MODEL: ADCPSN3 3.11m W x 6.12m D x 2.60m H POSTS 1. Take any post and a BK3 bracket. Orientate the bracket as shown and align so it’s flush with the end and side of the post. 2.
  • Page 5 ABSCO SIGNATURE CARPORT MODEL: ADCPSN3 3.11m W x 6.12m D x 2.60m H POST LOCATIONS 6021 Use a chalk line, or equivalent, to mark nominal outside dimensions onto foundation. The diagonal measurement will confirm squareness. 3014 6733 NOTE: Make the decision which side the gutter will go.
  • Page 6 ABSCO SIGNATURE CARPORT MODEL: ADCPSN3 3.11m W x 6.12m D x 2.60m H FITTING THE SHURELOCK BEAMS 0. Remove the protective plastic coating from 1. Safely lift and place a longer SB2 beam inside the outside of the beam. the taller post brackets BK3 as shown. Overlap to Overlap to bottom...
  • Page 7 ABSCO SIGNATURE CARPORT MODEL: ADCPSN3 3.11m W x 6.12m D x 2.60m H ATTACH Z FLASHING 1. Place one Z flashing TR35 along the lower side beam as pictured. Align to be flush with the exterior of the beam. 2. Overhang the end of the beam by 125 mm. 3.
  • Page 8 ABSCO SIGNATURE CARPORT MODEL: ADCPSN3 3.11m W x 6.12m D x 2.60m H ROOF PANELS 3. On the middle rib, fasten panel to low side beam with a tek 14 x 125 mm FAST104. Don’t over-tighten and crush the panel. For further screw position detail see next page.
  • Page 9 ABSCO SIGNATURE CARPORT MODEL: ADCPSN3 3.11m W x 6.12m D x 2.60m H FRONT & REAR FLASHING - HIGH SIDE TRIM NOTE: Leave the protective plastic on TR36 flashing until fastening, It’s good to mark on. Do one TR36 as pictured - the other TR36 is the same but ‘mirrored’.

  • Page 10: Weather Protection

    ABSCO SIGNATURE CARPORT MODEL: ADCPSN3 3.11m W x 6.12m D x 2.60m H FRONT & REAR FLASHING 5. Refit the flashing, and fasten using pop rivets FAST102 at the locations shown. LOW SIDE UNDERSIDE VIEW Only at the low side, on top, use teks with neoprene washers FAST101.
  • Page 11 ABSCO SIGNATURE CARPORT MODEL: ADCPSN3 3.11m W x 6.12m D x 2.60m H GUTTERING 0. Remove protective plastic coating from guttering components. 1. Next join both lengths of gutter RWG24, to match the overall finished length of the structure. Notch out the rolled edges (shown in grey) to allow one to slide inside the other.
  • Page 12 ABSCO SIGNATURE CARPORT MODEL: ADCPSN3 3.11m W x 6.12m D x 2.60m H GUTTERING FRONT VIEW - NOTE: Gutter falls to left for illustrative purposes only. 8. The gutter needs fall to drive water to a specific end. At the end you’d like the downpipe, mark the underside of the gutter onto the beam.
  • Page 13 ABSCO SIGNATURE CARPORT MODEL: ADCPSN3 3.11m W x 6.12m D x 2.60m H DOWNPIPE NOTE: The method shown is to mount a simple full height straight downpipe RWG21. An 80 to 90 mm adapter RWG29 is supplied if you wish to join into existing system instead.
  • Page 14 ABSCO SIGNATURE CARPORT MODEL: ADCPSN3 3.11m W x 6.12m D x 2.60m H Referenced Standards Information in this manual has been designed in accordance with the following Australian and New Zealand Standards. – National Construction Code of Australia 2022 – Specification S4C2—Design of Building in Cyclonic Areas NCC2022 VOL 1 –...
