ABSCO SHEDS A15301FKFD-PTX Assembly

ABSCO SHEDS A15301FKFD-PTX Assembly

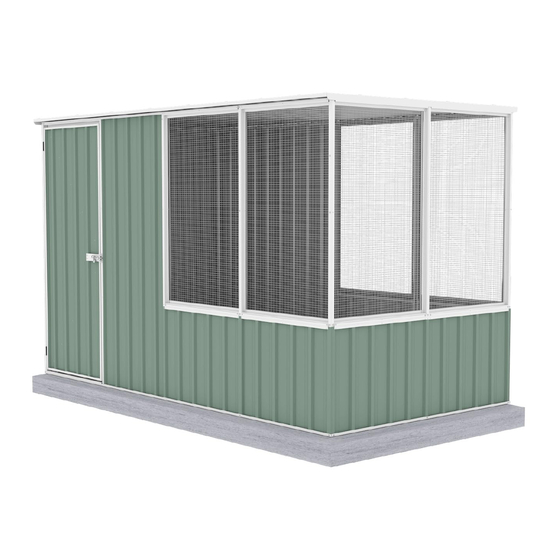

Chicken coop

Advertisement

Quick Links

ASSEMBLY APP AVAILABLE ON
We highly recommend downloading the Absco Sheds
Assembly App to assist with your build.
STEP BY STEP ASSEMBLY VIDEOS • PARTS CHECKLISTS • FAQ • 7 DAY
CUSTOMER SERVICE • WARRANTY INFORMATION • COUNCIL FORMS
4"
When laying a concrete slab for your shed, it is
best practise to have a rebated edge to prevent
water ingress.
Rebated section is 1" high and inset 3" on all sides
from the overall slab base dimensions
AU: 1800 029 701
AU: 1800 029 701
+1 (866) 788 3046
+1 (866) 788 3046
+1 (866) 788 3046
+1 (866) 788 3046
N Z: 0800 466 444
N Z: 0800 466 444
Absco Industries

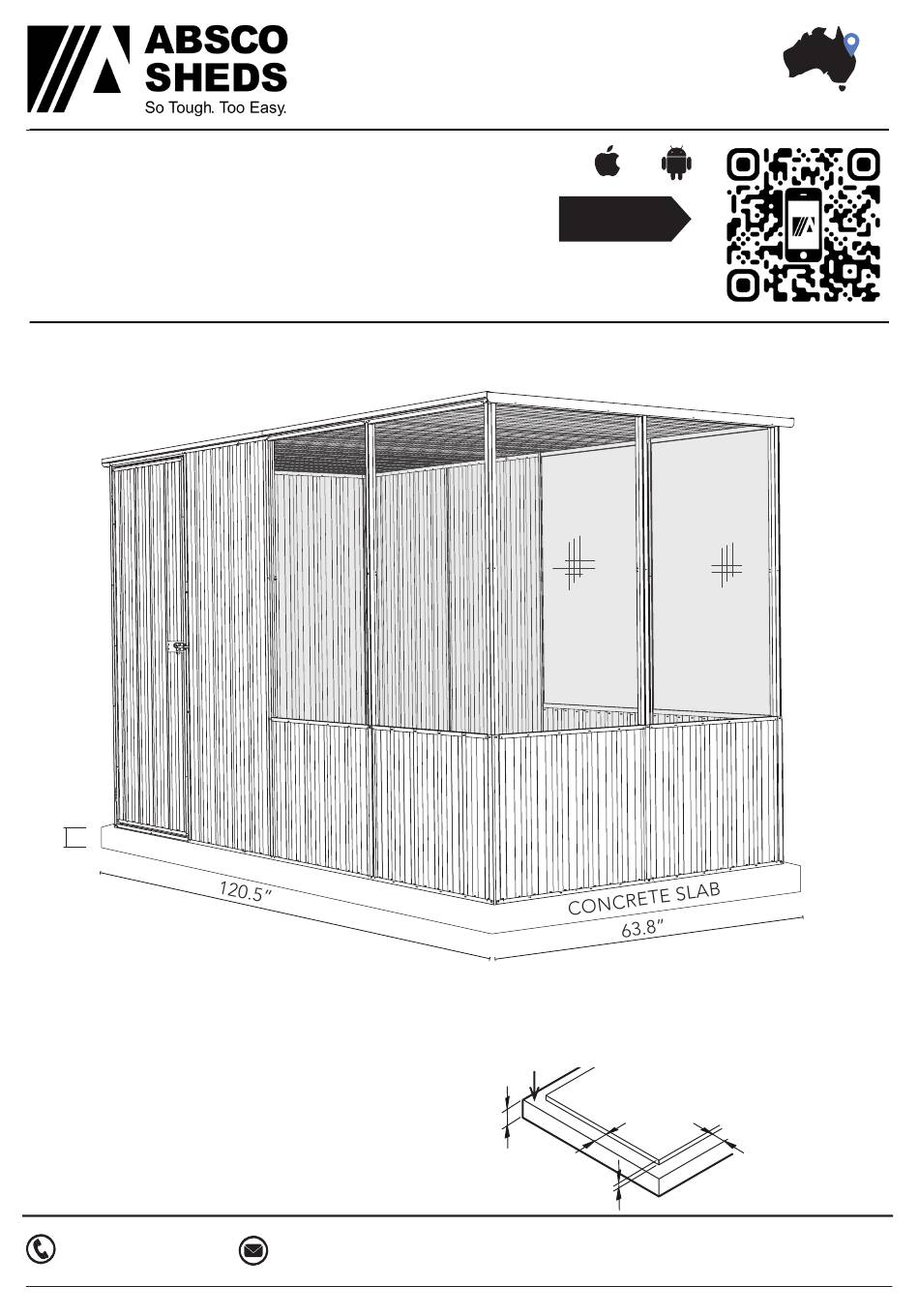

ABSCO CHICKEN COOP
MODEL: A15301FKFD-PTX
1.52mW x 2.96mD x 1.80mH
admin@absco.com.au
admin@absco.com.au
admin@absco.com.au
admin@absco.com.au
www.abscogardensheds.com
www.abscosheds.com.au
www.abscosheds.com.au
www.abscogardensheds.com
Assembly Instruction Manual
Scan to
download
WALLS SIT
ON THIS LEVEL
RAISED FLOOR
4"
3"
1"
PLEASE LEAVE A REVIEW
PLEASE LEAVE A REVIEW
www.abscosheds.com.au/review
www.abscosheds.com.au/review
Model: A15301FKFD-PTX
Australian Made
+
INSIDE SHED
model are as shown
3"
12/7/23
2.2
Overall slab base
dimensions for this
above.
Illustration not to
scale.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A15301FKFD-PTX and is the answer not in the manual?

Questions and answers

Summary of Contents for ABSCO SHEDS A15301FKFD-PTX

  • Page 1 MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made ASSEMBLY APP AVAILABLE ON We highly recommend downloading the Absco Sheds Scan to download Assembly App to assist with your build. STEP BY STEP ASSEMBLY VIDEOS • PARTS CHECKLISTS • FAQ • 7 DAY CUSTOMER SERVICE •...
  • Page 2: General Instructions

    ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made GENERAL INSTRUCTIONS SAFETY NOTES • Before commencing any assembly, read • Some parts may have sharp edges. It is through these instructions in detail to gain advisable to wear gloves when handling these a thorough understanding of assembly items and safety glasses if drilling holes.
  • Page 3 ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made COMPONENT PACKING LIST Check off all components. SHEETING COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION STEEL SHEET STEEL SHEET 70.3” x 30.4” 70.3” x 28.8” STEEL SHEET STEEL SHEET 70.3”...
  • Page 4 ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made COMPONENT PACKING LIST Check off all components. CHANNEL PACK COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION CHANNEL CHANNEL 70.3” 59.5” CHANNEL CHANNEL 59.5” 58.6” CHANNEL CHANNEL 313L 313R 48.5”...
  • Page 5 ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
  • Page 6 ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made Guide on Joining Spliced Channels The text marked on all parts must be shown on the same side as each other JOIN>> JOIN>> <<JOIN JOIN>> Step 1. Step 2.
  • Page 7 ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made PRE-ASSEMBLY OF SPLICED CHANNELS Join together 12 x channel sections using 6 x channel joiners (Part CSJ) NOTE: Some channels may have holes in them - You will need to redrill holes where CSJ joining channel covers them.
  • Page 8 ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made ROOF AND WALL OVERVIEW Mesh panels not shown for illustrative purposes. Absco Industries Assembly Instruction Manual Model: A15301FKFD-PTX 12/7/23...
  • Page 9: Rear Panel Assembly

    ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made REAR PANEL ASSEMBLY 1. Overlap specifi ed sheets by a 1x required rib. Make sure ends are fl ush and orientated as shown. 2. Fasten with self tapping screws through prepunched sheet-to-sheet holes on overlap.
  • Page 10: Roof Panel

    ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made ROOF PANEL FAST001 x12 1x required FAST001 x8 Absco Industries Assembly Instruction Manual Model: A15301FKFD-PTX 12/7/23...
  • Page 11: Right Side Panel

    ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made RIGHT SIDE PANEL 1x required FAST001 x14 Small pan of 33A to this side Absco Industries Assembly Instruction Manual Model: A15301FKFD-PTX 12/7/23...
  • Page 12 ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made RIGHT SIDE PANEL FAST001 x4 Prepare two short sheets 0.7” 1.2” Notch out both bottom corners as shown using tinsnips. FAST001 x 4 FAST009 x 8 Use rivets in the corners of the window openings.
  • Page 13: Left Side Panel

    ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made LEFT SIDE PANEL 1x required ALL PARTS FAST001 x20 Small pan of 33A to this side NOTE: Sheet 33A must go behind jamb 89B. Absco Industries Assembly Instruction Manual...
  • Page 14 ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made LEFT SIDE PANEL FAST001 x8 Prepare two short sheets 0.7” 1.2” Notch out both bottom corners as shown using tinsnips. FAST001 x14 FAST009 x 8 Use rivets in the corners of the window openings.
  • Page 15: Door Panel Assembly

    ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made DOOR PANEL ASSEMBLY FAST001 x12 1x required Position 12A Narrow pan of sheet midway along the to this side door. Side channels of door are to be orientated opposite to top and 20mm fl...
  • Page 16 ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made Turn over the panel and fi t braces. FAST001 x14 Using the jambs as templates drill 3mm holes into the sheet and secure with screws from the outside of the sheet.
  • Page 17 ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made DOOR PANEL ASSEMBLY FAST009 x6 Lay the LEFT SIDE PANEL Using three rivets per hinge, NOTE: Run the 1/8” drill bit face up and lay the DOOR FAST009, secure the door to...
  • Page 18: Front Panel

    ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made FRONT PANEL FAST001 x7 Prepare two short sheets 0.7” 1.2” Notch out both bottom corners as shown using tinsnips. Absco Industries Assembly Instruction Manual Model: A15301FKFD-PTX 12/7/23...
  • Page 19 ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made FAST001 x4 FAST001 x13 Absco Industries Assembly Instruction Manual Model: A15301FKFD-PTX 12/7/23...
  • Page 20 ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made FITTING MESH PANELS The mesh panels are fi xed to the inside of the wall panels. FAST001 x6 There’s six holes in the border of the mesh panel, these are fi xed with FAST001 MESH screws.
  • Page 21 ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made PANEL CONSTRUCTION NOTE: Take care to ensure that all wall panels are not upside down. The top channels of each panel are pre-punched for attaching roof sheeting. The base channels are not pre-punched.
  • Page 22 ABSCO CHICKEN COOP MODEL: A15301FKFD-PTX 1.52mW x 2.96mD x 1.80mH Australian Made FINAL CONSTRUCTION FAST001 x22 Position the roof so that the back wall has the lip trim against it with the roof overhang to the front. Line up the holes in the roof sheet with side wall top channels.
  • Page 23 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
  • Page 24 THE CUSTOMER SERVICE MANAGER, ABSCO SHEDS, PO BOX 119 ACACIA RIDGE QLD AUSTRALIA 4110 PHONE: +61 1800 029701 EMAIL: warranty@absco.com.au...
