ABSCO SHEDS AWN33 Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
AU: 1800 029 70 1
NZ: 0800 466 444
Building approval:
Local authority approval must be obtained prior to construction. Once you have selected your site, draw a site
plan and lodge your application together with a copy of the engineering plans located at the back of these
instructions.
Assembly:
The frame is constructed from 80mm x 40mm galvanized steel channel, similar to that used in domestic steel
house framing. All sections are cut to exact lengths, with channel ends pre-punched where necessary to simplify
assembly. If classic cream color channel is supplied, remove the protective plastic coating after assembly.
Channel sections are secured together using 10G x 16mm self drilling tek screws. (Supplied). Roof sheets are
secured to the frame using 10G x 16mm self drilling tek screws with neoprene washers (supplied). Barge capping
is secured together using 3mm pop rivets (supplied).
Construction:
The patio frame can be easily connected to brick or blockwork, using M10 x 75 dynabolts or coach screws, (not
supplied) through the rear beam of the frame. If fixing the frame to existing steel/timber fascia, the fascia to
house connection points may require additional strengthening to support the patio frame. Refer to the attached
engineered drawings 06205-003-AW02 & 06205-003-AW05 for further details.
If you are attaching the patio frame to materials or structures other than those noted above, you should seek
independent engineering advice on how to do so.
Concrete slab or footings
The frame must be secured to a concrete slab or footings, details of which are noted on the attached engineered
drawings. Brackets and dynabolts for securing the frame to either a concrete slab or footings are included in
this kit.
Absco Industries
Assembly Instruction Manual
ABSCO AWNING
MODEL: AWN33
3.00mW x 3.00mD x 3.00mH
admin@absco.com.au
www.abscosheds.com.au
Model: AWN33
15/11/19
Length: 3.0m
Depth 3.0m
Height: Variable to 3.0m
Wind Rating: W50C (C2)
Slab Size: 3180 x 2910mm
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AWN33 and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS AWN33

Summary of Contents for ABSCO SHEDS AWN33

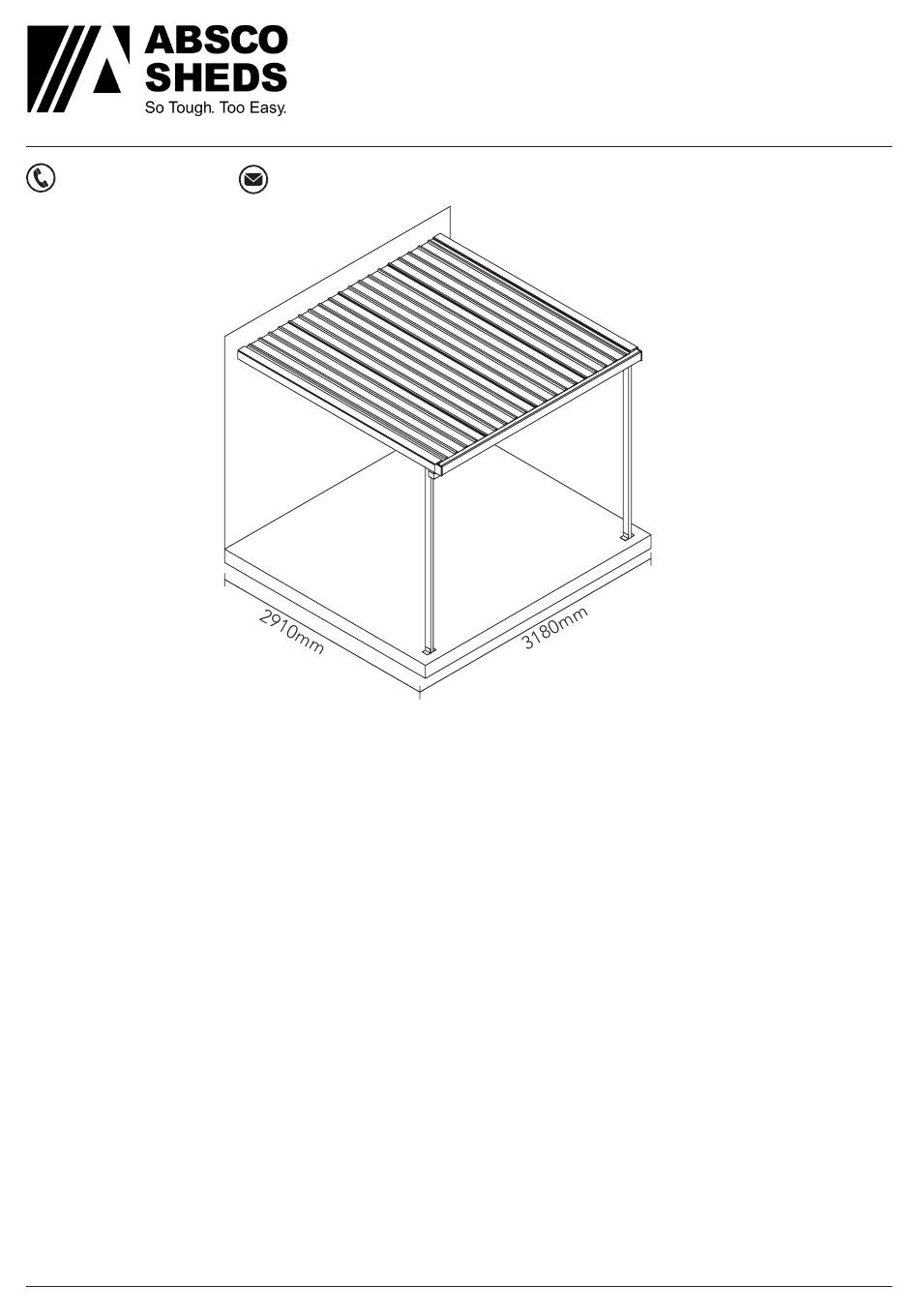

  • Page 1 ABSCO AWNING MODEL: AWN33 3.00mW x 3.00mD x 3.00mH AU: 1800 029 70 1 admin@absco.com.au NZ: 0800 466 444 www.abscosheds.com.au Length: 3.0m Depth 3.0m Height: Variable to 3.0m Wind Rating: W50C (C2) Slab Size: 3180 x 2910mm Building approval: Local authority approval must be obtained prior to construction. Once you have selected your site, draw a site plan and lodge your application together with a copy of the engineering plans located at the back of these instructions.
  • Page 2 ABSCO AWNING MODEL: AWN33 3.00mW x 3.00mD x 3.00mH COMPONENT PACKING LIST Check off all components. FRAME PACK COMPONENT PART COMPONENT PART DESCRIPTION DESCRIPTION FRAME FRAME SECTION C2980 C0100 SECTION L = 2980mm L = 100mm FRAME FRAME C2770 C2850...
  • Page 3 ABSCO AWNING MODEL: AWN33 3.00mW x 3.00mD x 3.00mH COMPONENT PACKING LIST Check off all components. SHEET AND ACCESSORIES COMPONENT PART COMPONENT PART CHK QTY DESCRIPTION DESCRIPTION 10G x 16mm WAFER STEEL SHEET FAST014 HD TEK SCREWS 2930 x 773mm...

  • Page 4: Component Overview

    ABSCO AWNING MODEL: AWN33 3.00mW x 3.00mD x 3.00mH COMPONENT OVERVIEW Absco Industries Assembly Instruction Manual Model: AWN33 15/11/19...
  • Page 5 (EG. Pozi drive) increases the risk of stripping the head of these screws. Some holes are pre-punched in Absco sheds’ frame sections, however the wide range of positions that most fasteners are required for means that the...
  • Page 6 ABSCO AWNING MODEL: AWN33 3.00mW x 3.00mD x 3.00mH Before you commence: Read these instructions carefully and fully so that an understanding of the steps involved in construc- tion is obtained. Do this with constant reference to the engineering drawings provided.
  • Page 7 ABSCO AWNING MODEL: AWN33 3.00mW x 3.00mD x 3.00mH STEP 2. Prepare the rear beam Parts required 1 x C2980 2 X C0100 LOCATE C0100 IN 40mm FROM EACH END Secure one C0100, 40mm in from each end, to strengthen both ends of the rear beam.
  • Page 8 ABSCO AWNING MODEL: AWN33 3.00mW x 3.00mD x 3.00mH STEP 3. Prepare the posts BEND DOWN ONE TAB FOR EACH POST WITH A PAIR OF PLIERS. THE POST HEIGHT SHOULD BE THE SAME AS THE REAR WALL FRAME HEIGHT, LESS THE AMOUNT OF SLOPE SELECTED.

  • Page 9: Step 5. Frame Assembly

    ABSCO AWNING MODEL: AWN33 3.00mW x 3.00mD x 3.00mH STEP 5. Frame Assembly Every connection should be fixed with two tek screws. Once completed, carefully turn the frame over and fasten with tek screws. A. Secure the outside sections of the frame first with one tek screw in each corner.

  • Page 10: Step 6. Frame Installation

    ABSCO AWNING MODEL: AWN33 3.00mW x 3.00mD x 3.00mH STEP 6. Frame Installation Move the posts to their correct positions and secure to the concrete with two dynabolts per post. In preparation to move the roof frame into position, you may need the assistance of one or more persons.
  • Page 11 ABSCO AWNING MODEL: AWN33 3.00mW x 3.00mD x 3.00mH STEP 7. Fit roof sheets ROOF SHEETS OVERHANG THE CAUTION: FRONT BY 80mm DO NOT CLIMB OR WALK ON THE ROOF FRAME OR SHEETING DURING OR AFTER INSTALLATION. Roof sheet coverage: 4 Sheets = 2992mm overall coverage, 12mm longer than the roof frame.
  • Page 12 ABSCO AWNING MODEL: AWN33 3.00mW x 3.00mD x 3.00mH STEP 8. Fit Fascia Brackets Fascia Bracket Locations Underneath view ( Location 2 ) End view ( Locations 1 & 3 ) Front Beam Rafter Fascia Bracket Fascia Post Bracket Fascia Angle...
  • Page 13 ABSCO AWNING MODEL: AWN33 3.00mW x 3.00mD x 3.00mH Fit Gutter and Downpipe STEP 10. Downpipe Drop Gutter Position the downpipe drop and both gutter stop Stop ends in place, seal with silicone and fasten with pop rivets. Gutter Bracket Bend this support arm of the bracket over the back edge of the gutter.
  • Page 14 ABSCO AWNING MODEL: AWN33 3.00mW x 3.00mD x 3.00mH STEP 11. Fit barge capping Fit the barge capping to each end of the frame with pop rivets. The small rolled edged should fit neatly underneath the frame. Immediate maintenance: Hose down surfaces to remove metal filings from drilling holes to prevent corrosion.
  • Page 15 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
  • Page 16 3.00mW x 3.00mD x 3.00mH Australia Product Warranty Against Defects • Absco Sheds, including garden sheds, garden beds, aviaries, storage units, garages, awnings and carports are made using high quality Australian made steel. • We are pleased to advise we warrant that the steel coating will not rust, crack, fl ake peel or blister for 20 years from date of purchase, when installed within Australia.
