  • Page 1: User Guide

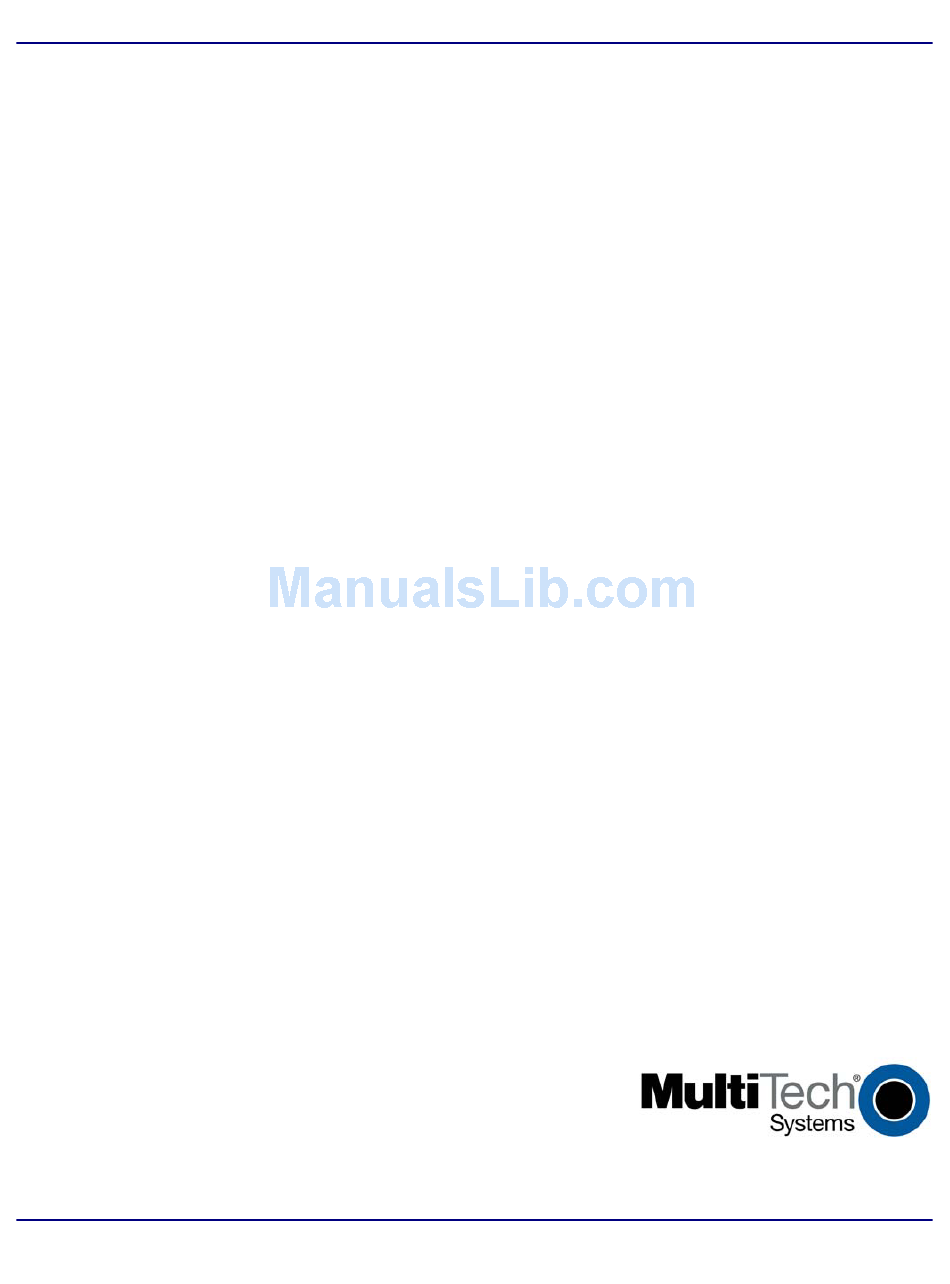

    ® CallFinder Cellular Gateway CF100FX2-G User Guide...
  • Page 2 Furthermore, Multi-Tech Systems, Inc. reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Multi-Tech Systems, Inc., to notify any person or organization of such revisions or changes. Check Multi-Tech’s Web site for current versions of our product documentation.

  • Page 3: Table Of Contents

    General Troubleshooting Tips ... 22 GSM Specific Troubleshooting Tips ... 22 A – W PPENDIX ARRANTY AND EPAIR B – W PPENDIX ASTE LECTRICAL AND Multi-Tech Systems, Inc. Table of Contents ... 4 RODUCT ESCRIPTION ... 14 ... 15 PPLICATION PTIONS ... 23 OLICIES ...

  • Page 4: Chapter 1 - Introduction And Product Description

    Interfaces, Activation, & Configuration The CF100FX2-G will connect to either an FXS or FXO interface; FXS is the default factory setting. The CF100FX2-G is activated by inserting a SIM from a cellular provider; no AT commands are required for this.

  • Page 5: Ship Kit Contents

    • An interchangeable power supply. • Four rubber feet for desktop placement. • One printed Quick Start Guide. • One CallFinder Cellular Gateway product CD that contains documentation. • One RJ11 phone cable. • One serial cable. • One antenna.

  • Page 6: Safety Warnings

    • Do not connect the FXS port to an outside line (PSTN). • Connect this product only to an indoor antenna. • This product is not intended for use on a cable distribution system. Multi-Tech Systems, Inc. Chapter 1: Introduction and Product Description CallFinder GSM Cellular Gateway...

  • Page 7: Rf Interference Issues

    115200, 57600, 38400, 9600 (bps); proprietary AT commands Interface AT Command Compatible Desktop or panel mounting Carrier approved Miscellaneous Numerous LEDs display status Embedded TCP/IP stack Two year warranty Multi-Tech Systems, Inc. Chapter 1: Introduction and Product Description CF100FX2-G GSM Modem CallFinder GSM Cellular Gateway...

  • Page 8: At Commands

    AT Commands The AT commands listed below are those supported by the CallFinder CF100 unit when its VOICE/DATA switch is in the VOICE position. These are Multi-Tech-specific AT commands. Command Values ATI1 AT&F AT>AD=p<cr> p = 0 or 1 ATDnA<cr>...

  • Page 9: Chapter 2 - Getting Started

    Insert the SIM card into the SIM card slot. A small, needle-nosed plier may be useful for this. The following graphic illustrates the correct SIM card orientation. ∗ Verify that the SIM card fits properly; then replace the cover. Multi-Tech Systems, Inc. CallFinder GSM Cellular Gateway...

  • Page 10: Step 2. Set Voice/Data Switch And Connect Antenna, Serial Cable, & Power

    The PWR LED lights after power-up. • Serial-to-USB 2.0 adapters. to-USB2.0 adapter. Antenna Multi-Tech Systems, Inc. If your command computer lacks a serial port, then you will need a serial- Power Supply & Connectors CallFinder GSM Cellular Gateway Chapter 2: Getting Started Remove the protective shipping cover.

  • Page 11: Front Panel Leds

    DB9 cable. A2. At the command PC, open the HyperTerminal (or equivalent) communications program. Multi-Tech Systems, Inc. Indicates an incoming ring from the wireless module. This LED is not used as it is for future potential products.
  • Page 12 Bits per second = 115200 Data bits: Parity: = none Stop bits: Flow control = Hardware Click Apply and click OK. Click OK again when the “COMx Properties” screen returns. Multi-Tech Systems, Inc. CallFinder GSM Cellular Gateway Chapter 2: Getting Started...

  • Page 13: 3B. Verify Signal Strength

    (like HyperTerminal). It does not work merely to connect the CallFinder to a telephony device using the FXO connector. The internal setting must be set to match the connector that you use. Multi-Tech Systems, Inc. CallFinder GSM Cellular Gateway Chapter 2: Getting Started...

  • Page 14: Chapter 3 - Wireless Antennas

    VSWR Typical Radiated Gain Antenna An antenna that meets the requirements for use with the wireless product is included with your purchase. Multi-Tech Systems, Inc. GSM 1800 1805 to 1880 MHz 1710 to 1785 MHz 1W at 12.5% duty cycle 50 ohms <2...

  • Page 15: Chapter 4 - Wireless Callfinder Application Options

    C. You will need a serial-to-USB2.0 adapter if your command computer lacks a serial port (see step 2). 1. There are four common setups for the CF100FX2-G unit, as shown in the table below. Identify the situation in which you will use the Wireless CallFinder.
  • Page 16 7. At the HyperTerminal prompt, type AT and press Enter. The CallFinder will return the response OK, thus confirming that the CallFinder is communicating with the command PC. Multi-Tech Systems, Inc. Chapter 4: Wireless CallFinder Application Options CallFinder GSM Cellular Gateway...
  • Page 17 2. Make a call to a 2nd Party with the analog phone (dial as you would from any cell phone). 3. If a connection is made, the CF100 CallFinder has been configured properly. If a connection is not made, see the “Troubleshooting” tips in Chapter 5 of this manual. Multi-Tech Systems, Inc. Chapter 4: Wireless CallFinder Application Options CF100...
  • Page 18 PBX through the CF100 CallFinder. The first person to answer completes the call, the ringing will cease, and the call cannot be joined by subsequent members of the hunt- group who might try to answer the call. Multi-Tech Systems, Inc. Chapter 4: Wireless CallFinder Application Options Analog...
  • Page 19 1. Set CallFinder’s Interface to FXO. Use HyperTerminal (or other communications program) to check the current Interface setting, to change the Interface to FXO if necessary, and to confirm that change. Multi-Tech Systems, Inc. Chapter 4: Wireless CallFinder Application Options...
  • Page 20 The most straightforward way to prevent such piracy of phone services is to block the incoming caller from using, as initial dialed digits, the outbound access digits that would be needed to re-dial outward (for example, 8, 9, and 1). Multi-Tech Systems, Inc. Chapter 4: Wireless CallFinder Application Options Cellular Network...
  • Page 21 2. Connect Cables. Connect an RJ11-to-RJ11 cable between the telco POTS line and the CF100 FXO port. 3. Purpose. This setup allows cell phone users to have toll-free access to land-line phone numbers in the local PSTN where the CallFinder is located. Multi-Tech Systems, Inc. Chapter 4: Wireless CallFinder Application Options National...

  • Page 22: Chapter 5 - Troubleshooting

    Note that your Wireless CallFinder will produce dial tone even if there is no SIM installed. 2. Try calling the telephone number assigned to the SIM. It is possible that your service is not ready or that there is a problem with your subscription. Multi-Tech Systems, Inc. CallFinder GSM Cellular Gateway...

  • Page 23: Appendixa - Warranty And Repair Policies

    Multi-Tech Warranty Statement Multi-Tech Systems, Inc., (hereafter “MTS”) warrants that its products will be free from defects in material or workmanship for a period of two, five, or ten years (depending on model) from date of purchase, or if proof of purchase is not provided, two, five, or ten years (depending on model) from date of shipment.
  • Page 24 Your original point-of-purchase Reseller may offer the quickest and most economical repair option for your Multi-Tech product. You may also contact any Multi-Tech sales office for information about the nearest distributor or other repair service for your Multi-Tech product. The Multi-Tech sales office directory is available at www.multitech.com/PARTNERS/Channels/offices/...

  • Page 25: Appendixb - Waste Electrical And Electronic Equipment

    WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all Multi-Tech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements.
