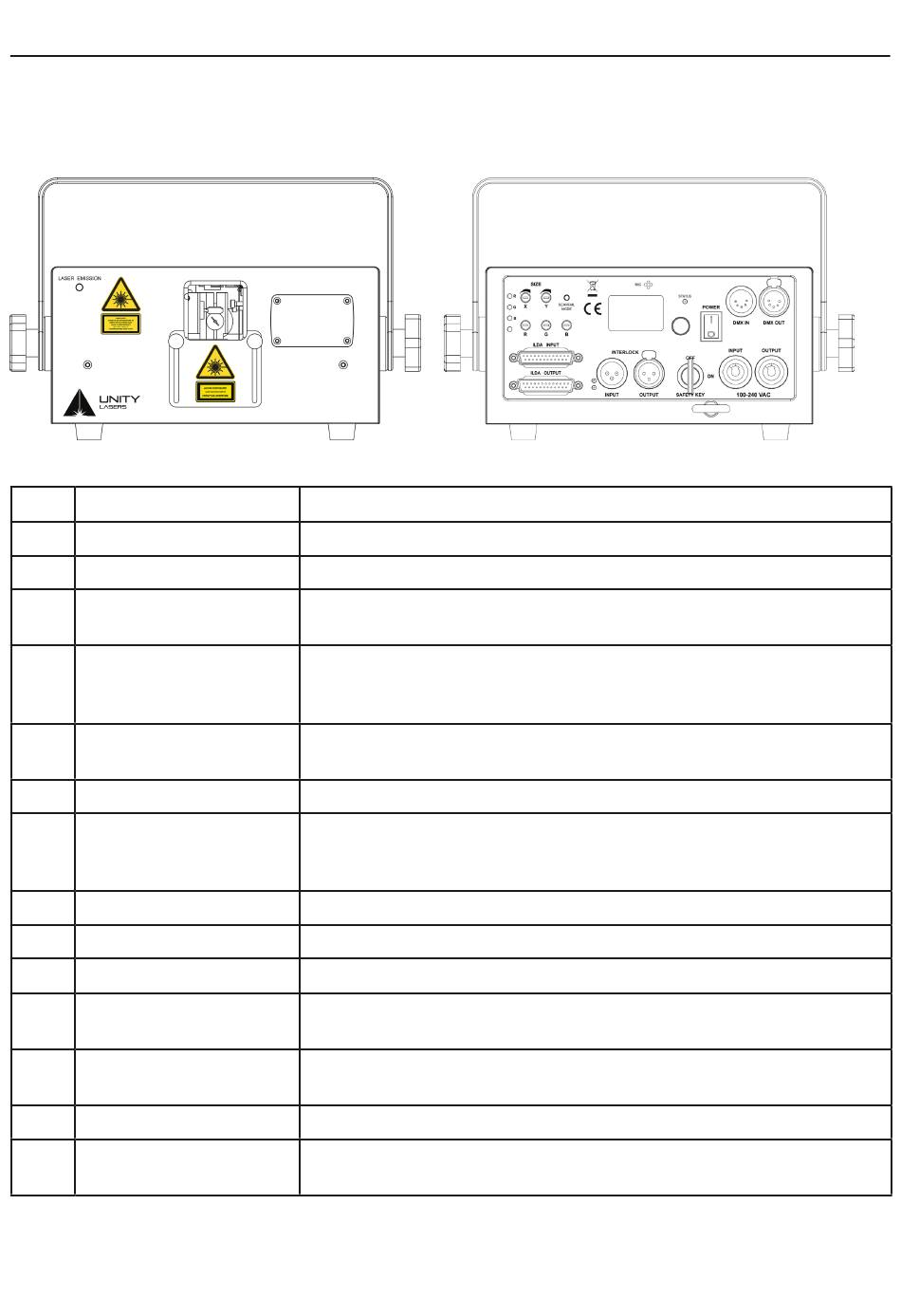

FRONT & REAR PANEL VIEW (RAW 3 DMX+ILDA)
3
1
NO. Name
1. Laser Aperture
2. Aperture Masking Plate
3. Laser Emission
4. Attachment bracket
5. 3-Pin Interlock
6. Key Switch
7. Power In & Out
8. Power ON & OFF
9. LCD Display
10. Microphone
11. Function Knob
12. DMX IN & OUT
13. DB25 In & Out
14. Safety Eyelet
4
2
Laser output, do not look directly into this aperture.
Can be moved up and down when two locklng bolts are loosened.
When this Indicator is lit up the laser system is ready to emit the laser
radlation as soon as It recelves Instructions from control software.
The attachment bracket spins 360 degrees around the laser body
whilst it can be locked in desired position by two small locking
handles on sides.
Laser output Is avallable only when the Interlock is connected.
It could be used to connect a laser emergency switch.
Turn the key switch ON to allow laser output.
AC 100-240V power Input and output sockets. With output feature
you can connect the device to one another using the Input and out-
put sockets. They must be the same fixtures. DO NOT mix fixtures.
Power On/Off
LCD display with function setting knob
Built in Microphone used for
For X/Y moving, rotation Y, Invert & Size; RGB and brightness adjust-
ment.
Use these ports to connect DMX control signal or to daisy chain the
DMX signal between multiple laser display systems.
DB25 Interface In and Out for ILDA Mode
Use this together with approriate safety wire to secure the system
against unexpected fall.
Raw 1.7/3/5/10 (DMX+ILDA) Operational Manual (Revision 2024-11)
