Assa Abloy ACCENTRA 440F Series Installation Instructions Manual page 4

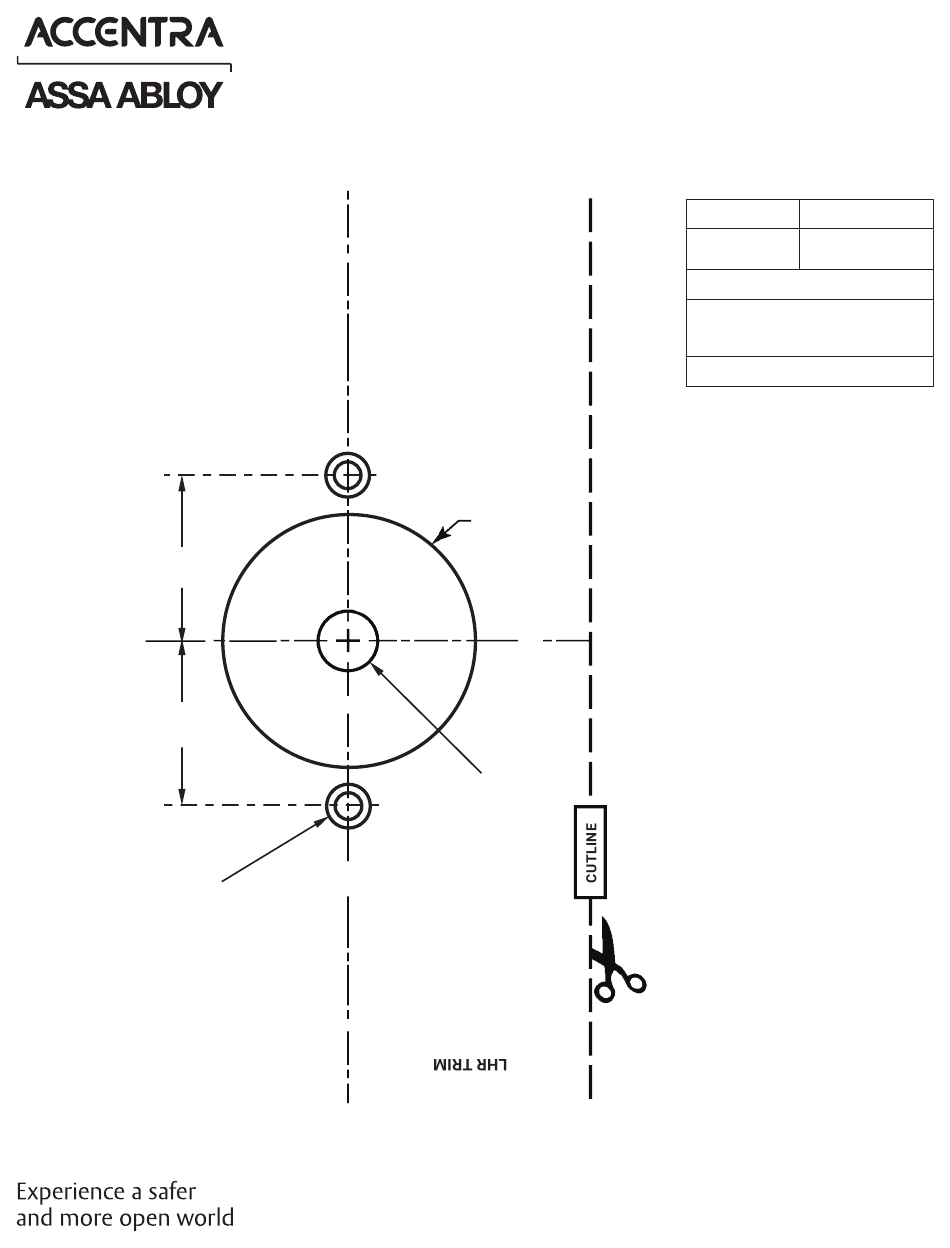

Outside Door
Face Trim
Template
1-3/8"
(35)
1-3/8"
(35)
(2) 3/8" (9.5) Dia.
x 1/2" (13) Deep
7/32" (5.5) Dia Thru
Dimensions given in inches (mm)
80-8470-0441-000 04/24
C L VERTICAL
C
REFERENCE
C L
(Device and Trim)
Copyright © 2008, 2012, 2023, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction
in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
LHR TRIM
A
2-3/8" (54) Dia.
x 7/8" (22) Deep
B
1/2"
Dia Thru
(13)
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
4
440F Series
Exit Device Trim
Installation Instructions
TRIM HOLES
441F, 446F,
A, B, C
448F, 449F
For Holes Marked "X" See Below
Metal Doors:
Inside Face 5/16" (8) Dia.
Outside Face 1/2" (13) Dia.
Wood Doors: 1/2" (13) Dia Thru
CAUTION:
Office copiers and facsimile
machines may change the size of
a drawing and make the template
inaccurate to use as a door marker.
If this is not the original template
packed with the trim, use only
the holes on the door (do not use
template as a door marker).
