440F Series
Exit Device Trim
Installation Instructions
Standard Cylinder
Each 441F and 446F Standard Trim is supplied with one 1802 6-pin random keyed cylinder, and (2) keys.
This lever can fit any 6-pin (1802, 5802) cylinder.
To re-key or exchange any of these cylinders, follow steps 3a or 3b shown below.

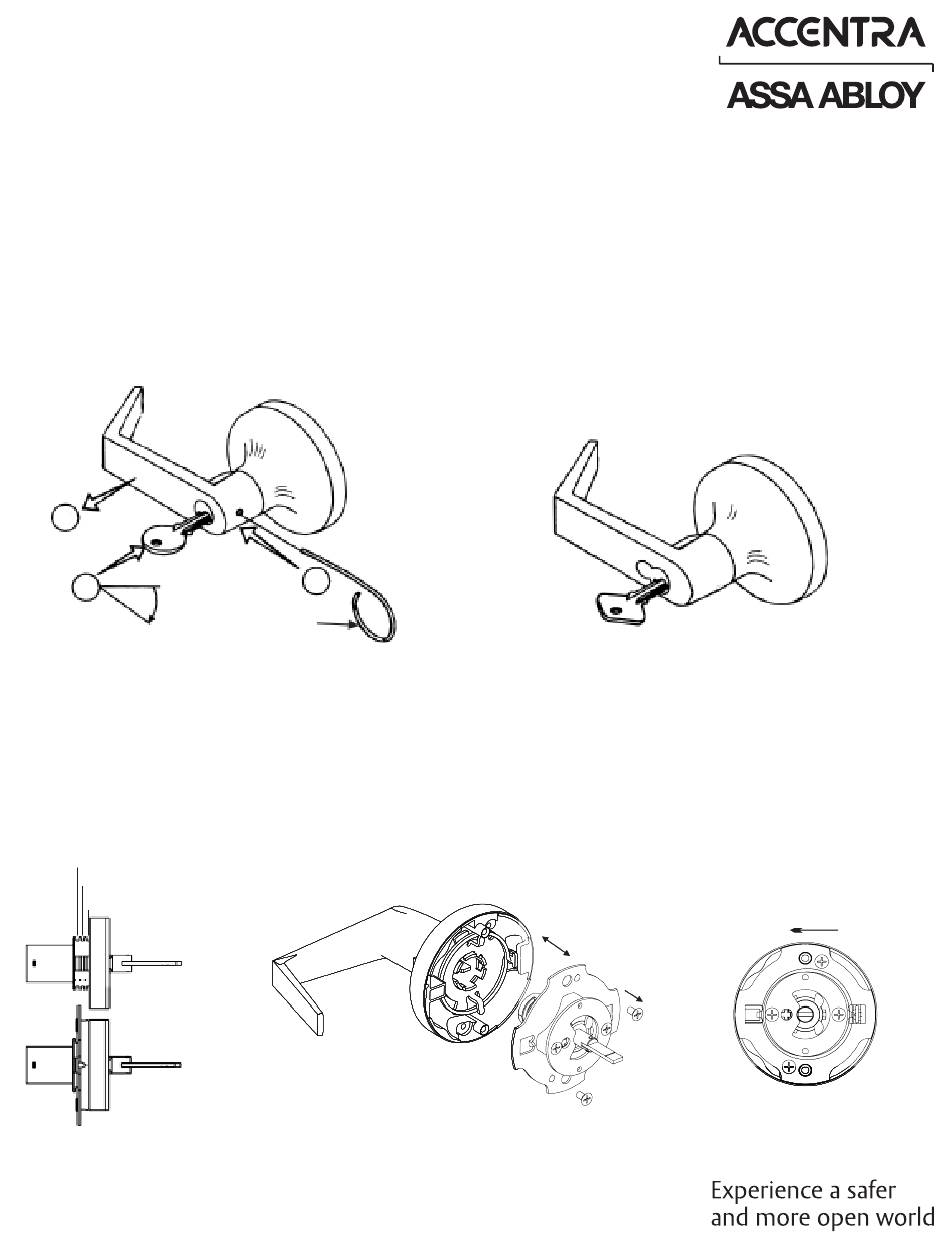

Figure 3a. Lever Handle Removable
1. Insert Key & rotate clockwise 45°
2. Depress retainer with tool supplied.
3. Slide Lever off trim.
(Reverse steps to re-assemble.)
3
1
45˚
Adjust lock for door thickness (If necessary)
(Lock is packaged preadjusted for 1-3/4" (44 mm) thick doors.)
To adjust for a thicker door.
1. Remove (2) screws from outside rose plate.
2. Slide outside rose away from lock body.
1-3/4" Door
2" Door
2-1/4" Door
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
Copyright © 2008, 2012, 2023, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction
in whole or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
2
Lever
Removable Tool
Figure 3b. Interchangeable Core Cylinders
Trim levers are specific for the cylinder core used. Levers are not
removable. To remove and install the cylinder use the control key
supplied with the cylinder.
LFIC, lever for 6-pin cores, 1210 and 5210.
SFIC, lever for 6- or 7-pin cores
3. Adjust rose plate to desired door thickness per illustration below.
4. Fasten outside rose to lock body with (2) screws.
2
1
3
4
Slide plate to
disengage
