Ercol 4544 Manual

Ercol 4544 Manual

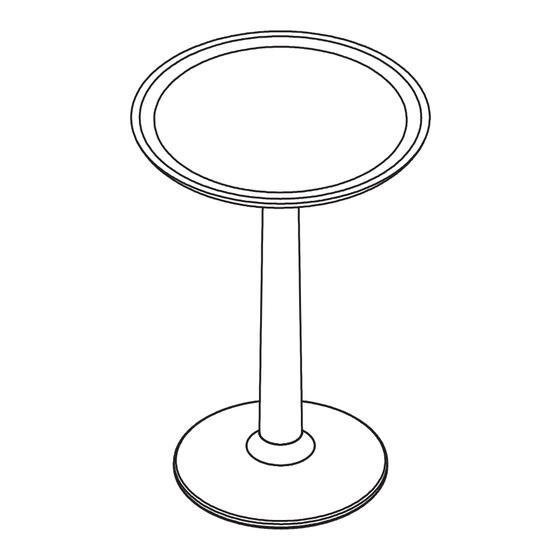

Siena low/medium/tall side table

Advertisement

Quick Links

4544 Siena Low Side Table
4545 Siena Medium Side Table
4546 Siena Tall Side Table
Thank you for purchasing this Siena side table. Please read the instructions carefully before use to ensure safe
and satisfactory operation of this product.
4544
Pre- assembly preparation
Please ensure instructions are read in full before attempting to assemble this product
Please check the pack contents before attempting to assemble this product. A full checklist of components is
given in this leaflet. If any components are missing, please contact the retailer from whom you purchased this
product.
This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product.
This product takes approximately 10-15 MINUTES to assemble with 1 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG
CHILDREN.
4545
4546
Ref: 00237/4544,4545,4546

Advertisement

loading
Need help?

Need help?

Do you have a question about the 4544 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ercol 4544

  • Page 1 4544 Siena Low Side Table 4545 Siena Medium Side Table 4546 Siena Tall Side Table Thank you for purchasing this Siena side table. Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. 4544...
  • Page 2 Fittings and parts checklist Allen key x 1 Top Panel x 1 65mm Bolt x 1 Column x 1 Base panel x 1...
  • Page 3 Step by step assembly instructions Insert the column(B) into the base panel (C) as shown below. Please attention the holes dimension. No fittings required in this step. Fittings φ8 φ6 Using the spanner(E) to fix the 1pc 65mm bolt(D) to connect the column(B) and the base panel (C) as shown below.
  • Page 4 If the table is not level on your floor use the wedges provided, and snap them off so that they do not protrude out from the base panel. you can also snap them lengthways if desired. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX www.ercol.com...

This manual is also suitable for:

45454546
