Ercol Novoli 4351 Manual

Medium pedestal extending dining table

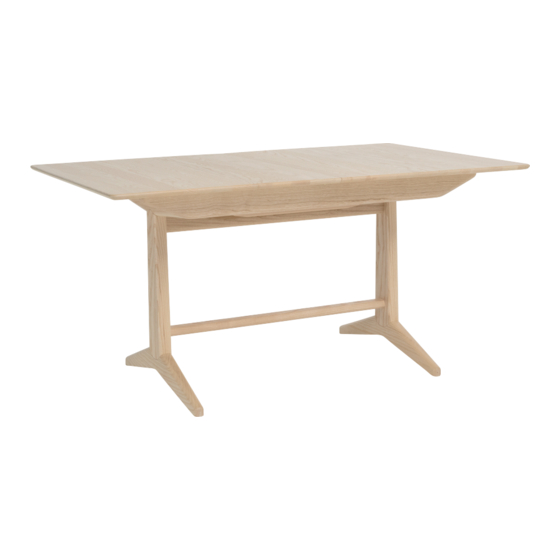

Novoli 4351 medium pedestal

extending dining table

Thank you for purchasing this Novoli medium dining table. Please read the instructions carefully before use to en-

sure safe and satisfactory operation of this product.

This item is HEAVY

Pre-assembly preparation

Please ensure instructions are read in full before assembling this product.

Please check the pack contents before assembling this product. A full checklist of components is given in this leaflet.

If any components are missing, please contact the retailer from whom you bought this product.

This product is HEAVY, it should be assembled as near as possible to the point of use. TAKE CARE WHEN

LIFTING to avoid personal injury and (or) damage to the product.

This product takes approximately 20 minutes to assemble with 2 PEOPLE.

The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN.

Table of Contents

Do you have a question about the Novoli 4351 and is the answer not in the manual?

Page 1 Novoli 4351 medium pedestal extending dining table Thank you for purchasing this Novoli medium dining table. Please read the instructions carefully before use to en- sure safe and satisfactory operation of this product. This item is HEAVY Pre-assembly preparation Please ensure instructions are read in full before assembling this product.
Page 2 Fittings and parts checklist allen key 6mm allen key 4mm 60mm connector bolts x 4 40mm connector bolts x 8 connector bolts x 4 cams x 4 Step by step instructions Connector bolts to be screwed into the 2 inserts in the leg assemblies The connector cams need to be inserted into the underside of both rails.
Page 3 Fix the first leg assembly to the under frame with 6 of the bolts provided. Tighten all the way with the allen key. The 60mm bolts are to be used on the inside face of leg assemblies and the closet to the middle. The 40mm bolts are to be used everywhere else.
Page 4 With the help of another person, carefully lift the table up and place on it’s legs, taking care not to pivot the table on two legs as you do this. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE ercol.com Ercol Furniture Ltd, Summerleys Road, Princes Risborough, Buckinghamshire. HP27 9PX...
