ASSEMBLY INSTRUCTIONS
Quadro Loop
L-Shaped Desk
STEP 04

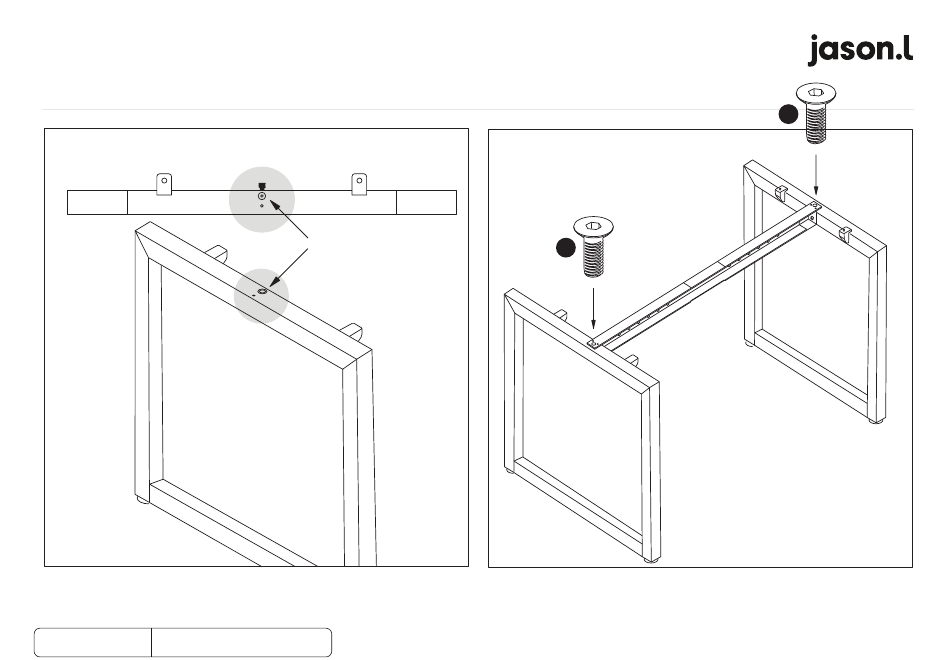

Attach beam (F) to legs (C) using nut insert in legs.
See point attached
Need help!
Call us on
TOP VIEW
1300 527 665
STEP 05
J
Frame looks like this. Using Allen Key, attach beam (F) with Socket (J)
J
www.jasonl.com.au
5 of 8
