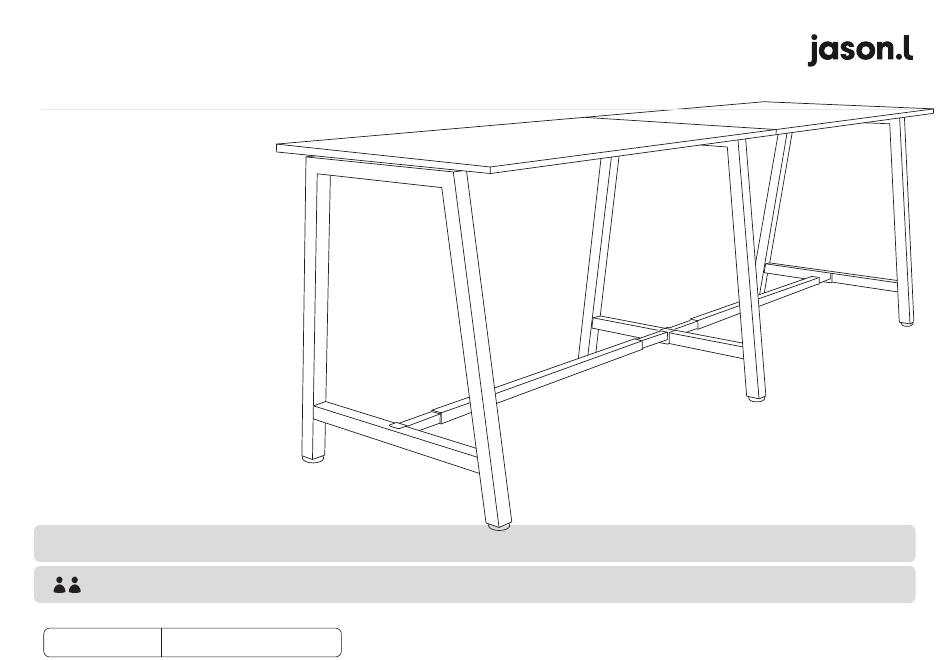

- Page 1 ASSEMBLY INSTRUCTIONS Quadro A Counter Table Frame Sizes: 2400x1200 3000x1200 3600x1200 Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation www.jasonl.com.au Need help! 1 of 9 1300 527 665 Call us on...
- Page 2 ASSEMBLY INSTRUCTIONS Quadro A Counter Table Frame COMPONENTS Table top x2 Leg Quadro A x2 Intermediate Leg Quadro A x1 Upper beam x2 Lower beam x2 Plastic bracket x8 Feets or Wheels x6 SCREWS M8x20MM CSK x12 M8x20MM socket head x4 M6x20MM socket head x8 M6x30MM socket head x8 Allen key...
- Page 3 ASSEMBLY INSTRUCTIONS Quadro A Counter Table Frame STEP 02 STEP 01 TOP VIEW Using Allen Key provided, attach 2 plastic brackets (F) per exterior leg (B) (as Using Allen Key provided, attach M8x20MM Socket head (I)- per picture above) using M6x20MM (J) Socket head screw. Attach 4 plastic screw socket half way into legs.
- Page 4 ASSEMBLY INSTRUCTIONS Quadro A Counter Table Frame STEP 03 Adjust extendable beams (D) to desired length using markers and secure beams at that length using screws provided. 2000 1900 1800 1700 1600 1500 1400 1300 1200 www.jasonl.com.au Need help! 4 of 9 1300 527 665 Call us on...
- Page 5 ASSEMBLY INSTRUCTIONS Quadro A Counter Table Frame STEP 04 Adjust extendable beams (E) to desired length. Remove plastic inserts Loosen 2 bolts on beam using allen key Extent lower beam to the same distance as upper beam Insert plastic inserts back into the beams www.jasonl.com.au Need help! 5 of 9...
- Page 6 ASSEMBLY INSTRUCTIONS Quadro A Counter Table Frame STEP 05 TOP VIEW STEP 06 Attach Upper Beams (D) to legs using nut insert. Frame looks like this. Using Allen Key, attach Upper Beams (D) with Sockets (H). See point attached Need help! www.jasonl.com.au 6 of 9 1300 527 665...
- Page 7 ASSEMBLY INSTRUCTIONS Quadro A Counter Table Frame STEP 07 Using Allen Key. Tighen Sockets (H) on the Lower Beam (E) using Allen Key (L). Insert Frame looks like this. plastic spacers to improve regidity. Attach two Sockets (I) to the side of the lower side beams (as shown in the picture).
- Page 8 ASSEMBLY INSTRUCTIONS Quadro A Counter Table Frame STEP 08 TABLE TOP BOTTOM VIEW nut insert nut insert Place desktops (A) ontop of frames. Nut inserts in top will align with plastic joiner brackets using M6x30MM (K) sockets attached tops to frames. www.jasonl.com.au Need help! 8 of 9...
- Page 9 ASSEMBLY INSTRUCTIONS Quadro A Counter Table Frame If purchase with wheels: WHEELS ASSEMBLY DONE! Replace Feet on the bottom of each leg with wheels (G) www.jasonl.com.au Need help! 9 of 9 1300 527 665 Call us on...
