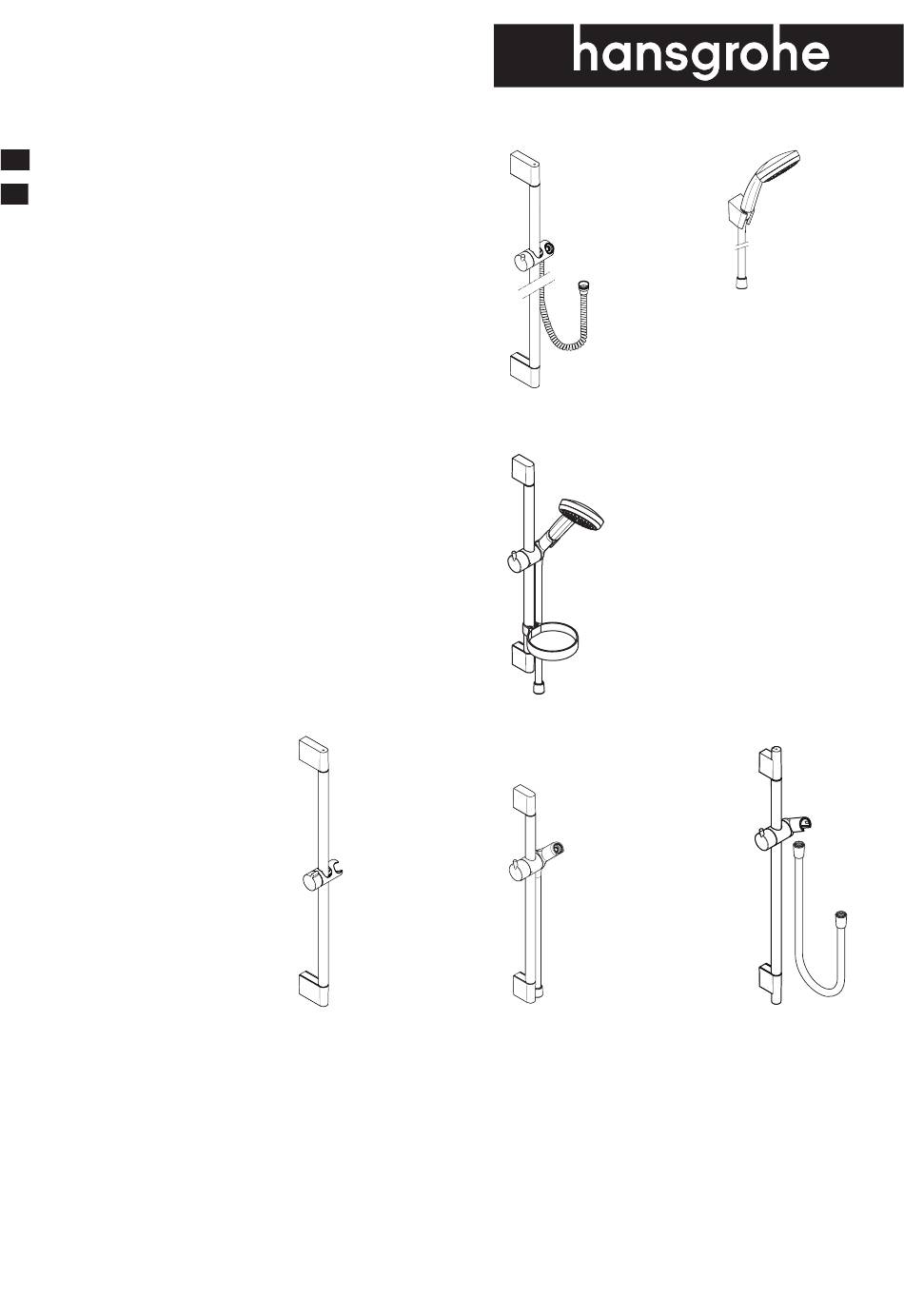

ZH 用户手册 / 组装说明
EN Instructions for use / Assembly instructions
Unica'Croma
26505007
26506007
2
3
Unica'Crometta
27615007
Croma 100 Vario /
U`C 650 EcoSmart
27776007
Unica'C
27610007
27611007
Croma 100 Vario /
Porter S Set 1250
EcoSmart
27592007
Croma 100 Vario /
Porter S Set 1600
EcoSmart
27594007
Croma 100 Multi /
Porter S Set 1600
EcoSmart
27595007
Unica'S Puro
28631XX7
28632XX7
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hans Grohe Unica'S Puro 28631 7 Series
Summary of Contents for Hans Grohe Unica'S Puro 28631 7 Series
- Page 1 ZH 用户手册 / 组装说明 EN Instructions for use / Assembly instructions Croma 100 Vario / Porter S Set 1250 EcoSmart 27592007 Unica'Crometta Croma 100 Vario / 27615007 Porter S Set 1600 EcoSmart 27594007 Croma 100 Multi / Porter S Set 1600 EcoSmart 27595007 Croma 100 Vario / U`C 650 EcoSmart 27776007 Unica'C...
- Page 2 中文 安全技巧 技术参数 0,6 MPa 工作压强: 最大 装配时为避免挤压和切割受伤, 必须戴上手套. 0,1 - 0,4 MPa 本产品只允许作为洗浴, 卫生和洁身之用. 推荐工作压强: (1 MPa = 10 bar = 147 PSI) 不得让儿童和肢体, 精神和/或意识有障碍的成 60°C 热水温度: 最大 人在不受监管的情况下使用淋浴系统. 受酒精或 70°C / 4 分钟 热力消毒: 毒品影响的人员不得使用淋浴系统. 必须避免让身体敏感部位 (如眼睛) 接触到莲蓬 该产品专为饮用水设计! 头喷水. 必须保持莲蓬头与人头之间有足够的距 符号说明 离. 该产品不得作扶柄使用. 必须安装单独的扶柄. 请勿使用含有乙酸的硅胶! 淋浴软管只适合从淋浴器连接到管接头. 切勿在 大小 (参见第页 10) 管接头和软管之间安装截止装置. 安装提示 流量示意图 (参见第页 12) • 安装前必须检查产品是否受到运输损害. 安装后 备用零件 (参见第页 13) 将不认可运输损害或表面损伤. XX = 颜色代码 • 管道和阀门必须根据通用标准进行安装, 冲洗和...
-
Page 3: Safety Notes
English • The mesh washer must be insert to protect the shower Safety Notes against incoming dirt by pipework. Incoming dirt Gloves should be worn during installation to prevent leads to defects or/and can damage parts of the crushing and cutting injuries. shower; such caused faults voids all liability and The product may only be used for bathing, hygienic guarantee claims. and body cleaning purposes. Technical Data Children as well as adults with physical, mental and/ or sensoric impairments must not use this product Operating pressure: max. 0,6 MPa without proper supervision. Persons under the Recommended operating pressure: 0,1 - 0,4 MPa influence of alcohol or drugs are prohibited from (1 MPa = 10 bar = 147 PSI) using this product. Hot water temperature: max. 60°C Do not allow the streams of the shower touch sensitive Thermal disinfection: 70°C / 4 min body parts (such as your eyes). An adequate distance The product is exclusively designed for drinking water! must be kept between the shower and you. Symbol description The product may not be used as a holding handle. A separate handle must be installed. Do not use silicone containing acetic acid! Shower hoses are only suitable for a connection from Dimensions (see page 10) the shower to the fitting. Never fit a shut-off device between the fitting and the hose. - Page 5 Croma 100 Vario / Unica'C U`C 650 EcoSmart 27610007 / 27611007 27776007 Unica'Croma Croma 100 Multi / 26505007 / 26506007 Unica'Crometta Unica'S Puro U`C 650 EcoSmart 27615007 28631XX7 / 28632XX7 27777007 Ø 6 #94246000...
- Page 6 27776007 / 27777007 Croma 100 Vario/Porter S Set 1250 EcoSmart 27592007 Croma 100 Vario/Porter S Set 1600 EcoSmart 27594007 Croma 100 Multi/Porter S Set Ø 6 mm 1600 EcoSmart 27595007 #94246000...
- Page 7 94246000 > 1 min...
- Page 8 • • • • • Hansgrohe , Hansgrohe • • www.hansgrohe-int.com/guarantee. • • QuickClean QuickClean, • • QUICK CLEAN...
-
Page 9: Warranty
English • After cleaning rinse thoroughly with clean water to Cleaning Recommendation for Hans- remove any cleaner residue. grohe Products • The use of steam cleaners is not permitted. The high Today, modern sanitary and kitchen tapware, showers, temperatures can damage the products. accessories, washstands, tubs and radiators consist of Important very different materials to comply with the needs of the... - Page 10 Croma 100 Vario / U`C 650 EcoSmart 27776007 Croma 100 Vario / Croma 100 Multi / Croma 100 Multi / Porter S Set EcoSmart Porter S Set 1600 EcoSmart U`C 650 EcoSmart 27592007 / 27594007 27595007 27777007 1,25 m / 1,60 m 1,60 m Croma 100 Vario EcoSmart 28537007 Croma 100 Vario...
- Page 11 Unica'Croma Unica'Croma Unica'Crometta Unica'C 26505007 26506007 27615007 27610007 m a x . 107 Ø Ø Ø Ø Unica'C Unica’S Puro Unica’S Puro 27611007 28632XX7 28631XX7 max.105 max.105 Ø 22 Ø 22...
- Page 12 Croma 100 Vario EcoSmart 28537007 Croma 100 Multi EcoSmart 28538007 0,60 0,60 0,55 0,55 0,50 0,50 0,45 0,45 0,40 0,40 0,35 0,35 0,30 0,30 0,25 0,25 0,20 0,20 0,15 0,15 0,10 0,10 0,05 0,05 0,00 0,00 Q = l/min 9 12 15 18 21 24 27 30 Q = l/min 9 12 15 18 21 24 27 30 Q = l/sec...
- Page 13 Croma 100 Vario / Unica'Croma Porter S Set EcoSmart 26505007 / 26506007 27592007 / 27594007 Unica'Crometta Croma 100 Multi / 27615007 Porter S Set 1600 EcoSmart 27595007 97450000 95217000 28538007 (27595007) 92366000 28537007 (27592007 / 27594007) 93339000 94246000 95160000 98918000 28331000 98058000 98058000 28266000 95218000 28272000 96179000 (1,25 m) 28276000...
- Page 14 Unica'C Unica’S Puro 27610007 / 27611007 28631XX7 Unica’S Puro 28632XX7 98738000 97450000 97709XX0 97450000 96275000 96275000 96179000 98753000 96179000 97651XX0 98058000 98058000 28276XX0 (1,60 m) 28276000 (1,60 m)
- Page 15 Croma 100 Vario / 98058000 U`C 650 EcoSmart 27776007 Croma 100 Multi / U`C 650 EcoSmart 27777007 9 7450000 98738000 96275000 28276000 Croma 100 Vario EcoSmart (1,60 m) 28537007 96179000 98753000 28678000 96189000 93339000 94246000 Croma 100 Multi EcoSmart 96275000 28538007 93339000 94246000...
- Page 16 Hansgrohe · Auestraße 5 - 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
