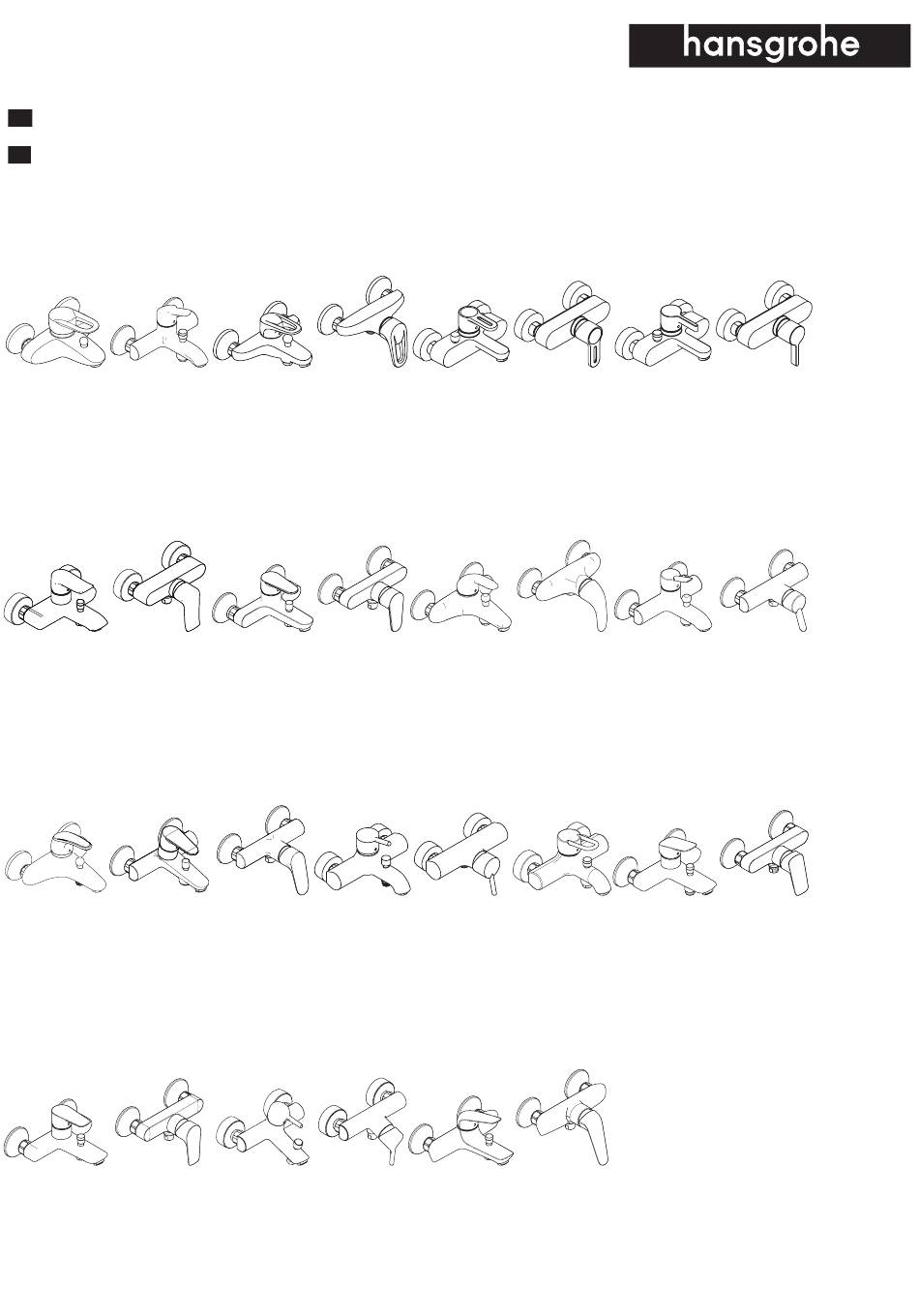

ZH 用户手册 / 组装说明
EN Instructions for use / Assembly instructions
Metropol
Sportive 2
14410007
14440007
Metris
Metris
31480007
31680007
Avista
Focus
31748007
31940007
Talis E
Talis E
71740XX7
71760007
Metropol E
Metropol E
14470007
14670007
Talis E²
Talis E²
31642007
31662007
Focus
Talis S
31960007
32420007
Talis S
Talis S
72400007
72600007
2
3
Metropol S
Metropol S
14461007
14661007
Focus E
Focus E
31740007
31760007
Talis S
Metropol Puro
32620007
33144007
Novus
Novus
71040007
71060007
Metris S
Metris S
31460007
31660007
Focus S
Focus S
31742007
31762007
Logis
Logis
71400XX7
71600007

Advertisement

loading
Need help?

Need help?

Do you have a question about the Logis 71400 7 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hans Grohe Logis 71400 7 Series

  • Page 1 ZH 用户手册 / 组装说明 EN Instructions for use / Assembly instructions Metropol Sportive 2 Metropol E Metropol E Metropol S Metropol S Metris S Metris S 14410007 14440007 14470007 14670007 14461007 14661007 31460007 31660007 Metris Metris Talis E² Talis E² Focus E Focus E Focus S Focus S 31480007 31680007...
  • Page 2 中文 安全技巧 符号说明 装配时为避免挤压和切割受伤, 必须戴上手套. 请勿使用含有乙酸的硅胶! 本产品只允许作为洗浴, 卫生和洁身之用. 恒温阀芯的安全功能可以预先设定所希望的最高出水温度, 例如最高温度 冷热水管间过大的压力差必须予以平衡. 为42°C 安装提示 调节 (参见第页 5) • 安装前必须检查产品是否受到运输损害. 安装后将不认可运输损害或表 面损伤. 安装完成后必须检查调温器的出水温度. 如在取水处测量所得的温度与调 • 管道和阀门必须根据通用标准进行安装, 冲洗和检查. 温器上设定的温度有偏差, 那么必须进行调整. • 请遵守当地国家现行的安装规定. 热水温度调节. 如果使用即热式喷头, 则不建议安装热水阀门. 技术参数 大小 (参见第页 6) 1 MPa 工作压强: 最大 流量示意图 (参见第页 9) 0,1 - 0,5 MPa 推荐工作压强: 1,6 MPa 测试压强: 备用零件 (参见第页 10) (1 MPa = 10 bar = 147 PSI) XX = 颜色代码 60°C 热水温度: 最大 00 = 镀铬...
  • Page 3 English Safety Notes Symbol description Gloves should be worn during installation to prevent crushing and cutting Do not use silicone containing acetic acid! injuries. The desired maximum temperature for example max. 42°C can be pre-set thanks to The product may only be used for bathing, hygienic and body cleaning the safety function. purposes. The hot and cold supplies must be of equal pressures. Adjustment (see page 5) Installation Instructions After the installation, the output temperature of the thermostat must be checked. A • Prior to installation, inspect the product for transport damages. After it has been correction is necessary if the temperature measured at the output differs from the installed, no transport or surface damage will be honoured. temperature set on the thermostat. • The pipes and the fixture must be installed, flushed and tested as per the To adjust the hot water limiter. Using a hot water limiter in combination with a applicable standards. continuous flow water heater is not recommended. • The plumbing codes applicable in the respective countries must be observed. Dimensions (see page 6) Technical Data Flow diagram (see page 9) Operating pressure: max. 1 MPa Recommended operating pressure: 0,1 - 0,5 MPa Spare parts (see page 10) Test pressure: 1,6 MPa XX = Colors...
  • Page 4 36 mm X + 36 mm max. 39 mm SW 24 mm max. 5 mm SW 30 mm (17 Nm) SW 22 mm SW 22 mm (2 Nm) > 2 min...
  • Page 5 0,3 MPa 60 °C 10 °C 0,3 МПа 0,3 ‫ميجابسكال‬ 36°C 17 x 38°C 50°C 60°C 43°C 55°C...
  • Page 6 Metropol Sportive 2 14410007 14440007 ± 12 15 0 15 0 ± 1 2 G 1 / 2 18 5 Ø 21 2 21 2 21 19 5 Metropol E Metropol E 14470007 14670007 Metropol S Metropol S 14461007 14661007 G ½...
  • Page 7 Talis E² Talis E² 31642007 31662007 15 - 23 15 - 23 Focus E Focus E 31740007 31760007 Focus S Focus S 31742007 31762007 ± 12 15 0 G 1 / 2 18 5 2 21 19 0 Avista Metropol Puro 31748007 33144007 ±12...
  • Page 8 Talis S Talis S 32420007 32620007 15 - 23 G 1/2 Talis S Talis S 72400007 72600007 Talis E Talis E 71740XX7 71760007 ±12 ±12 15-23 15-23 G 1/2 G 1/2 Novus Novus 71040007 71060007 ±12 15-23 15-23 ±12 G1/2 G1/2 Logis Logis...
  • Page 9 14410007 / 14440007 / 14461007 / 14661007 / 14670007 / 31660007 / 14470007 / 31480007 / 31740007 / 31662007 / 31680007 / 31760007 / 31742007 / 31748007 / 32420007 / 31762007 / 31960007 / 32620007 / 33144007 71600007 / 71760007 / 72600007 / 71060007 0,60 0,55...
  • Page 10 Metropol E 14094000 14470007 96338000 96656000 98156000 96690000 (36x2) Metropol E 94140007 95008000 92730000 14670007 94140007 95140000 94078000 97738000 98163000 (15x2) 98163000 94135000 (15x2) 96922000 97220000 95008000 94135000 92730000 96157000 96922000 13956000 97220000 94077000 96690000 96157000 96656000 95140000 96338000 14094000 Metropol S 14461007 14895000...
  • Page 11 Metropol Sportive 2 14897000 14410007 14440007 14092000 96338000 97406000 96338000 94192000 98193000 97209000 (32x2) (M37x1,5) 94194000 94140007 92730000 95140000 95140000 94140007 92730000 95008000 95008000 97773000 98193000 96466000 (32x2) 98118000 98163000 97738000 (9x1,8) (15x2) 94078000 94135000 97738000 98163000 96922000 (15x2) 97220000 96157000 94135000 96922000...
  • Page 12 Metris S 31093000 31460007 96338000 97406000 94140007 90357010 97209000 (32x2) Metris S 31660007 92730000 94140007 98163000 95140000 (15x2) 95008000 98705000 97738000 96467000 96922000 97220000 96157000 98163000 (15x2) 96512000 94077000 96467000 92730000 96922000 97220000 97209000 96157000 97406000 95008000 96044000 95140000 31093000 Metris 96338000 31480007...
  • Page 13 Talis E² 31692000 31642007 96338000 97406000 98193000 97977000 (32x2) 98164000 (33x1,5) 94140007 92730000 Talis E² 95140000 31662007 95008000 94140007 97981000 97979000 98163000 (15x2) 96157000 98163000 94135000 (15x2) 96922000 96157000 92730000 97220000 96512000 94135000 97978000 96922000 97220000 97977000 98129000 98193000 95008000 (14x2) (32x2) 96044000...
  • Page 14 Focus S 31793000 31742007 96338000 97406000 98193000 97209000 (32x2) (M37x1,5) Focus S 92730000 95140000 94140007 31762007 94140000 95008000 94078000 96157000 98163000 97738000 (15x2) 98163000 (15x2) 94135000 96922000 94135000 92730000 97220000 96922000 96157000 97220000 97209000 96044000 (M37x1,5) 92360000 97406000 95008000 94077000 98129000 98199000 (14x2)
  • Page 15 Talis S 32092000 32420007 96338000 96656000 98156000 (36x2) 96690000 Talis S 32620007 92730000 95140000 94140007 94140007 95008000 96157000 96466000 98163000 97738000 98163000 (15x2) (15x2) 96467000 97220000 96467000 92730000 97220000 96922000 96922000 96157000 96690000 96044000 96656000 13956000 95008000 98434000 (24x1,5) 98129000 94077000 (14x2) 95140000...
  • Page 16 Talis E 92666XX0 71740XX7 96338000 97406XX0 98193000 (32x2) Talis E 97977XX0 71760007 98164000 94140007 (33x1,5) 92730000 94140007 95140000 97981XX0 96157XX0 97979XX0 95008000 94135XX0 96157000 96922000 94135000 97220000 92730000 98163000 96922000 98164000 (15x2) 97220000 (33x1,5) 98163000 96512XX0 97978000 98129000 (15x2) 98193000 95008000 (14x2) (32x2)
  • Page 17 Novus 93192000 71040007 96338000 97406000 97209000 Novus 71060007 92730000 94140007 94135000 94135000 94140007 95140000 95008000 97981000 97979000 97220000 96157000 96157000 97220000 92730000 98163000 98163000 (15x2) (15x2) 97209000 98129000 95008000 (14x2) 97978000 96044000 SW 19 mm SW 19 mm 95140000 96512000 98193000 (32x2) 97406000 96338000 93192000...
  • Page 18 关 / close 关 / close 开 / open 开 / open 热 / hot 冷 / cold...
  • Page 19: Warranty

    English Cleaning Recommendation for Hansgrohe Products Today, modern sanitary and kitchen tapware, showers, accessories, washstands, tubs and radiators consist of very different materials to comply with the needs of the market with regard to design and functionality. To avoid damage and reclamations, it is necessary to consider certain criteria when cleaning.
  • Page 20 Hansgrohe · Auestraße 5 – 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
