HMS STR10 PRO Instruction Manual page 9

Attach the towel bar (7) to the left dumbbell platform (5)
and the right dumbbell platform (6) using hardware shown
in figure 7. Hand tighten screws in a cross pattern, to ensure
even fit.
2. Tighten all screws securely.

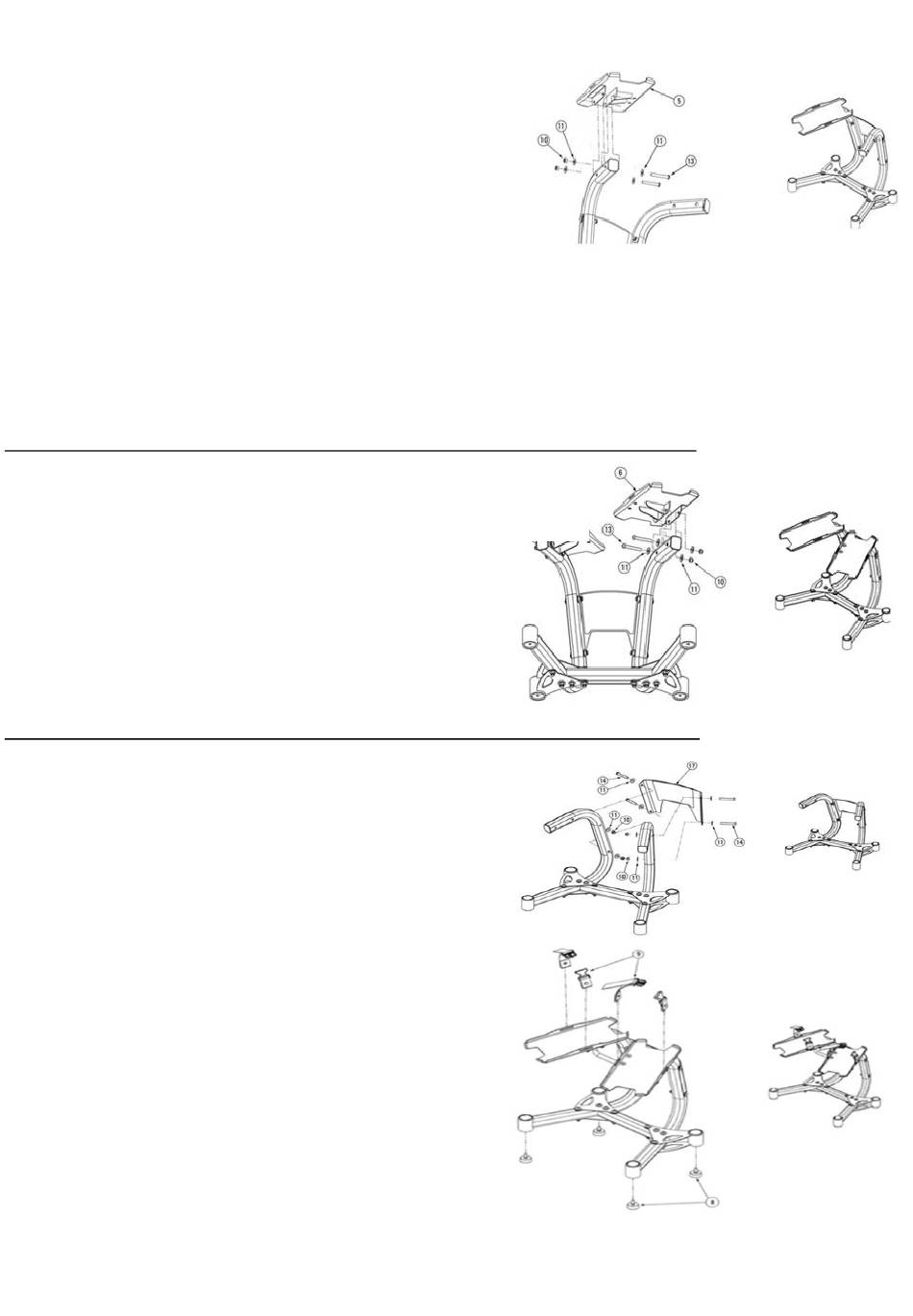

Step 5.
Parts: Stand base assembly from step 4, left dumbbell
platform (5), 2.75'' screws 2pcs. (13), washers 4pcs. (11),
nuts 2pcs. (10).
Tools: Hex key 7/32'', Wrench/Socket 9/16'' or adjustable
wrench.
Secure the left dumbbell platform (5) to left stand leg (4)
using the hardware shown in figure 5.
Note: Make sure the screw holes in the platform are toward the center of the stand.
Step 6.
Parts: stand base assembly from step 5, riht dimbbell
platform (6), 2.75'' screws 2pcs. (3), washers 4pcs. (11), nuts
2pcs. (10).
Tools: Hex key 7/32'', Wrench/Socket 9/16'' or adjustable
wrench.
Secure the right dumbbell platform (6) to right stand leg (4)
using the hardware shown in figure 6.
Note: Make sure the screws holes in the platform are toward the center of the stand.
Step 7.
Parts: stand leg and cross brace assembly from step 3,
center plate (17), 2.5'' screws 4 pcs. (14), washers 8pcs. (11),
nuts 4pcs. (10).
Tools: Hex key 7/32'', Wrench/Socket 9/16'' or adjustable
wrench.
Install the center plate (17) to both stand legs (4) using the
hardware shown in figure 4.
Step 8.
Parts: stand assembly from step 7, foot pegs (8) or caster
wheels (16), hold down straps (9).
Attach either food pegs (8) or caster wheels (16) to the rear
left stabilizer (2), the rear right stabilizer (3) and both stand
legs (4). See figure 8.
Attach the hold down straps (9) to the left dumbbell
platform (5) and the right dumbbell platform (6) as shown in
figure 8.
Fig. 2
Strona 4 z 5
Fig. 5
Fig. 6
Fig. 7
Fig. 8
