Assembly
Step 1.
Parts: Stand leg (4), rear left stabilizer (2), 3'' screws 2 pcs.
(12), washers 4 pcs. (11), nuts 2pcs. (10).
Tools: Hex key 7/32''
Attach the rear left stabilizer (2) to the stand leg (4) using
the hardware shown in figure 1.
Note: Do not tighten hardware.
Step 2.
Parts: Stand leg (4), rear right stabilizer (3), 3'' screws 2 pcs.
(12), washers 4 pcs. (11), nuts 2 pcs. (10).
Tools: Hex key 7/32''
Attach the rear right stabilizer (3) to the stand leg (4) using
the hardware shown in figure 2.
Note: Do not tighten hardware.
Step 3.
Parts: Cross brace (1), left stand leg assembly from step 1,
right leg assembly from step 2, 3'' screws 4pcs. (12),
washers 8 pcs. (11), nuts 4pcs. (10).
Tools: Hex key 7/32''.
Attach the bottom cross brace (1) to the rear left stabilizer
(2) and rear right stabilizer (3) using the hardware shown in
figure 3. Make sure that the narrower edge of the cross
brace (1) is closer to the stand leg (4) uprights.
Note: Do not tighten hardware.
Step 4.
Parts: stand assembly from step 5, towel bar (7), 1' screws
4pcs. (15), washers 4pcs. (11), nuts 4pcs. (10).
Tools: Hex key 7/32'', Wrench/Socket 9/16'' or adjustable
wrench
Strona 3 z 5

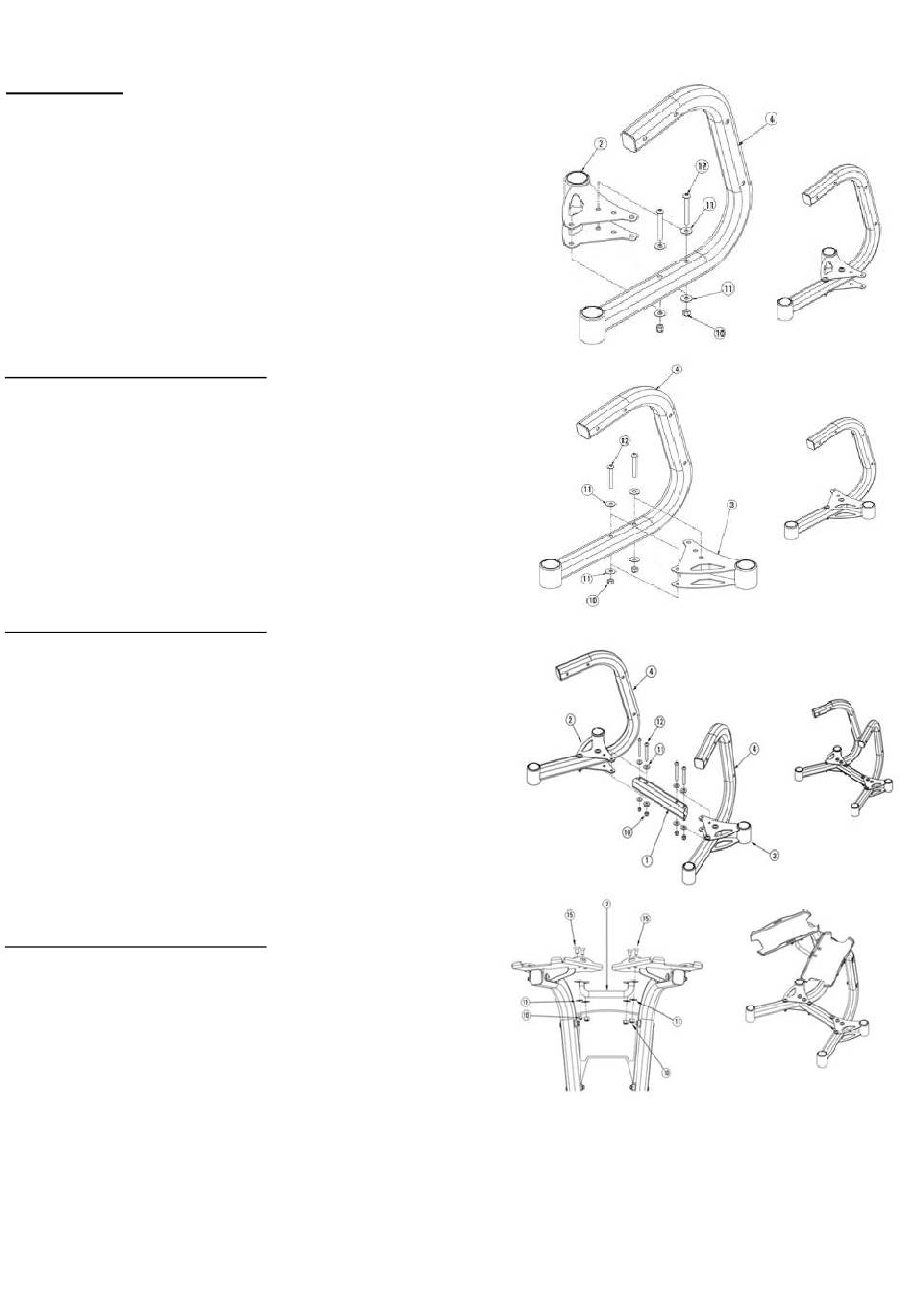

Fig. 1
Fig. 2
Fig. 3
Fig. 4
