- Page 1 ALTERNATING PRESSURE PUMP AND MATTRESS USER MANUAL MODEL: ALTO CODE: DLR-ALT-MAT - 1 -...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION INTENDED ENVIRONMENT INTENDED USER GROUPS INTENDED USE CONTRAINDICATIONS PRODUCT OVERVIEW FEATURES SAFETY IMPORTANT SAFEGAURDS INDICATIONS SYSTEM LOADS TRAINING PATIENT BRIEFING FIRE WARNING BIOCIDES GENERAL WARNINGS PRODUCT FUNCTIONS CLASSIFICATION INSTALLATION OPERATING INSTRUCTIONS ENVIRONMENT REQUIREMENTS CLEANING GUIDELINES DISPOSAL OF PARTS MAINTENAINCE TROUBLESHOOTING SYMBOLS... -
Page 3: Introduction
A domestic area. INTENDED USER GROUPS The Alto mattress is intended to support a single patient who is up to 225kg in weight and 185cm in height. For those patients of a very low weight, typically less that 40kg and a physical size less than 146cm, clinical judgement is to be used to determine suitability. -
Page 4: Product Overview

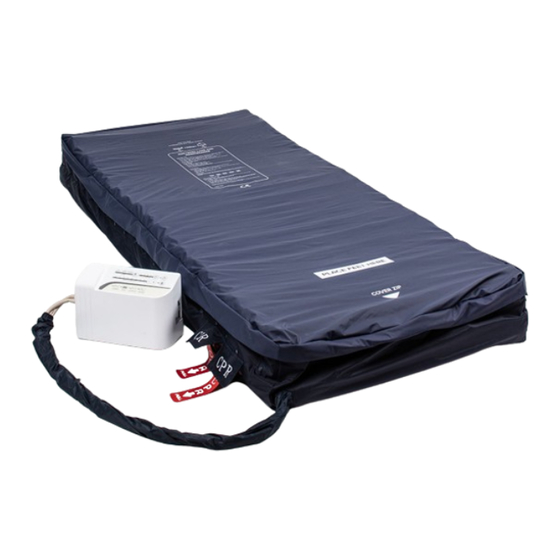

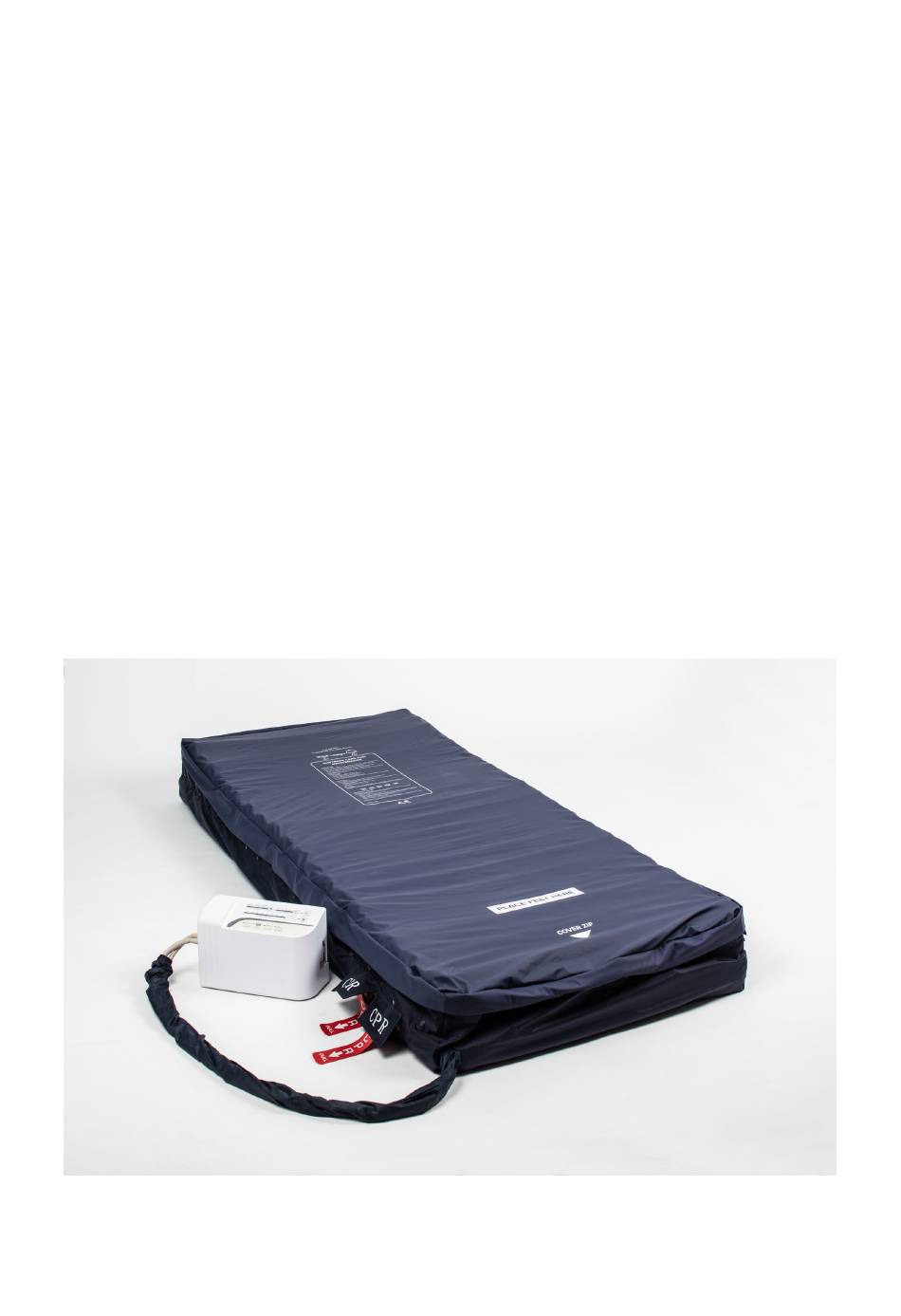

PRODUCT OVERVIEW An air filled support surface is kept inflated by a compressor, housed within a control unit, where they are connected together via an umbilical tube. The control unit is mains powered and it is expected to be permanently plugged into the mains when in use. -
Page 5: Safety
SAFETY Warnings and Cautions: Warnings in these instructions for use highlight hazards that if disregarded could lead to injury or death Cautions in these instructions for use highlight potential hazards that if disregarded could lead to equipment damage or failure. Risk Assessment: Support platforms used with the mattress can vary greatly depending on the specific healthcare setting (i.e., hospitals, nursing homes, home care etc.) It is the responsibility of... -
Page 6: Important Safegaurds
IMPORTANT SAFEGUARDS When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following: Caution To reduce the risk of electrocution: Always unplug this product immediately after use. Do not use while bathing. ... -
Page 7: Indications
INDICATIONS To assist as part of an overall program of care when active load distribution through mechanical means is required. SYSTEM LOADS Mattress maximum patient weight: 225kg (35.5st) TRAINING If these instructions for use are not deemed sufficient and the need for additional training is required, please contact your distributor who will be able to: define the intention and outcomes of any necessary training, who should attend, its duration and any potential costs involved. -
Page 8: Biocides
BIOCIDES Ultra-fresh antimicrobial agent is fully encapsulated in the mattress cover to help control microbial deterioration and to help extend the life of the covers. The active ingredient is 3-iodo-2-proponyl butyl carbamate. There are no special handling requirements. The product does not contain any nano-materials and all components are latex free. Ultra-fresh is a trademark of Thomson Research Associates, Inc. -
Page 9: Product Functions
If children, adults who lack capacity or even pets pose a potential risk of intentional or unintentional tampering with the control unit its suitability for use is to be considered during the initial patient/product risk assessment. The support surface is for single occupancy use. Additional weight could damage the mattress or affect the performance of the mattress system. - Page 10 Alternate Mode (5) Press to set the air mattress in alternate therapy mode. A green LED will illuminate to show the alternating mode has been activated. Static Mode (6) Press to set the air mattress in static therapy mode, an orange LED will illuminate to show static mode has been activated.
- Page 11 Power switch (11) Pressure cycle time Pressure range Alert Mute Alternate Static Mode Max Inflate Seat Mode Lock button 10. Power button 11. Integral Hanging Hooks 12. Filter Cover 13. 2 × Pads for pump stability and (13) (12) minimize vibration (10) Accessory - Mattress (Type BF applied part) The pump comes with cell type mattress of different materials (Nylon PVC, Nylon TPU or...
-
Page 12: Classification
CLASSIFICATION Class II Medical electrical equipment (Protection against electric shock). Type BF Applied Part (The mattress is an applied part). Ingress Protection Rated – IP21. Continuous operation. Caution The mains plug is used as the isolation means from mains, do not position the product to make it difficult to operate this disconnection device. -
Page 13: Operating Instructions
d) Connect the mattress and switch the power e) Once ready, the low-pressure light will go out - button on. Allow up to 40 minutes for full inflation. lay the patient on the bed and select the appropriate comfort level. Perform a “bottom out”... - Page 14 NOTE: Please follow instructions below for detailed operating procedure of each type. Step 1 Turn on the power, A beep sound will begin the operation. Step 2 The pump will enter Static mode when the power is turned on. First it will inflate the mattress to 10-15mmHg and then enter Alternating mode.
- Page 15 CPR FUNCTION When there is an emergency requirement to perform CPR on the patient, pull the CPR tags at the foot section of the mattress to release the air quickly from the mattress. The CPR tags are located at the foot end left-hand side of the mattress.
-
Page 16: Environment Requirements
ENVIRONMENT REQUIREMENTS Operating Conditions Ambient Temperature: +5℃~+40℃ Relative Humidity: 15%~90%, non-condensing Atmospheric pressure: 700hPa to 1060hPa Storage and shipping conditions Ambient temperature: -25℃~+70℃ Relative Humidity: 10%~90%, non-condensing Atmospheric pressure: 700hPa to 1060hPa HANDLING AND STORAGE ... -
Page 17: Disposal Of Parts
Wipe down with a clean cloth moistened with a mild detergent and diluted in warm water (40˚C). Rinse with cold clean water and a clean cloth and allow to fully dry before use. Decontamination: Mop up any fluid with paper towels. ... - Page 18 please reconnect it. Check the CPR Valves. Ensure their outlets are sealed. Check the air-connecting tubes. Ensure each single cell is not broken. Set the pressure at Max Inflate mode. Keep the tubes fully inflated and inspect for air leakage.
-
Page 19: Troubleshooting
TROUBLESHOOTING Problems Reasons Maintenance 1. After powered on, check if visible LED light turns on. If not, please check the below issues: 1.1 Check if power cord is plugged into appropriate voltage AC outlet. 1.2 Check if fuse is loose or burned out, make 1.Pump does not work. -
Page 20: Symbols
SYMBOLS - 20 -... - Page 21 - 21 -...
-
Page 22: Technical Specification
TECHNICAL SPECIFICATIONS Pump Item: Alto Input Rating: 220-240V, 50Hz, Max.1A Air Output: 9 liter/min Pressure Range: 20 mm Hg – 55 mmHg Weight Settings: 40 – 225 kg Cycle Time: 10/15/20/25 min Mode: Max Inflate mode, Alternating/Static/Seat Mode Alert: Low pressure, Power failure, Alternating failure Size: 31cm(L) x 12.5cm(W) x 21cm(H) -
Page 23: Emc Guidance
EMC GUIDANCE This product needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided, as this unit can be affected by portable and mobile RF communications equipment. Caution: Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit. - Page 24 Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. IEC 60601 Electromagnetic environment – Immunity test Compliance level test level...
- Page 25 Guidance and manufacturer’s declaration – electromagnetic immunity The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment. Compliance IEC 60601 test Immunity test Electromagnetic environment –...
-
Page 26: Warranty
WARRANTY This product will perform in accordance with its specification and will remain free from defects in material and workmanship when used under normal conditions for a period of 1 year (full parts and labour) from the date of purchase. If purchased from an authorised dealer or international distributor, the product is warranted for 1 year parts only. -
Page 27: Notes
NOTES - 27 -... - Page 28 1F, 3F, 4F, No. 6, East Haijing Road, Haicang Xiamen, Fujian, China Emergo Europe B.V. Prinsessegracht 20, 2514 AP The Hague, The Netherlands Drive DeVilbiss Healthcare Ltd., Drive DeVilbiss Sidhil Ltd., Sidhil Business Park, Holmfield, 4 Trench Road, Mallusk, Newtownabbey...
