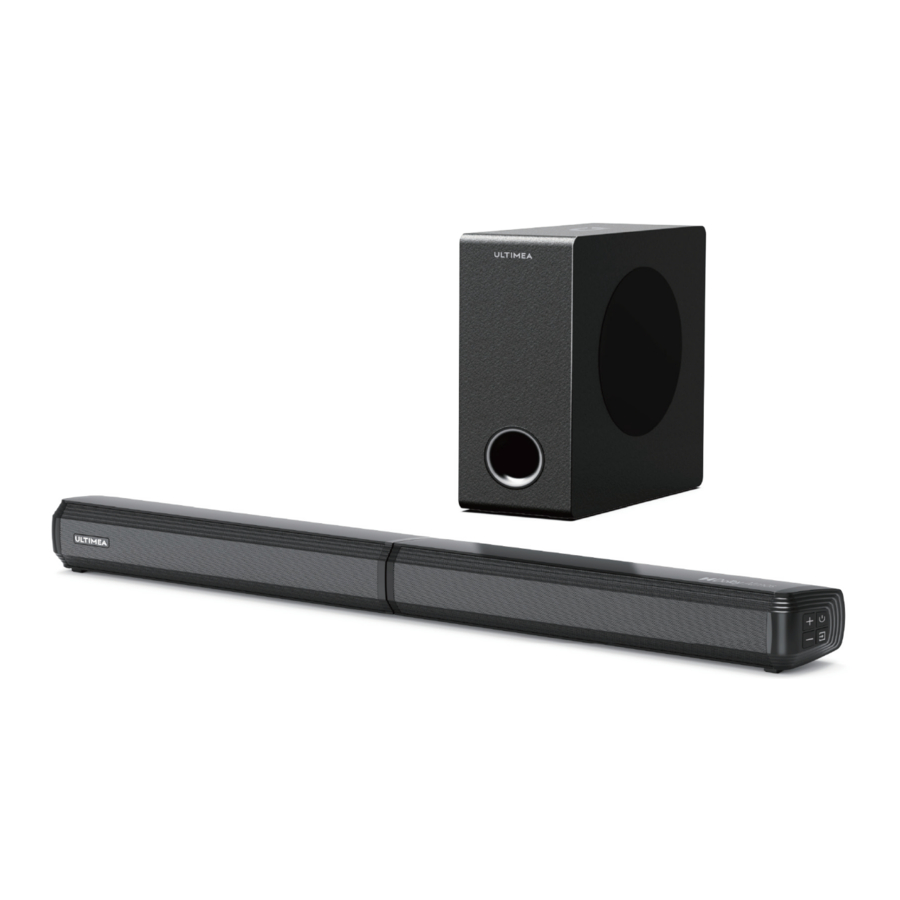

Ultimea Apollo S60 U3620 - Soundbar Manual

ACCESSORIES LIST

SOUNDBAR CONTROLS

Control Panel

1. VOL+: Volume Up
2. VOL-: Volume Down.
3. Power Button:
   Press to power button to turn on / Off
4. INPUT:
   Press to switch channels: EARC-HDIN-OPT(OPTICAL)-BT-AUX-USB. Hold for 3 seconds to disconnect the current device and connect to a new device manually on your mobile phone / PC / TV (BT ID: Apollo S60)

Remote Control

1. "": Power Button
   Press to power button to turn on / off.
2. "": eARC
   Press to switch to HDMI eARC channel.
3. "": HDIN
   Press to switch to HDMI IN channel.
4. "": OPT
   Press to switch to OPTICAL channel
5. "": AUX
   Press to switch to AUX channel.
6. "": BT
   Press to switch to Bluetooth channel and enter pairing mode.
   Hold for 3 seconds to disconnect current device and connect to a new device manually on your mobile phone / PC / TV (BT ID: Apollo S60).
7. "": USB
   Press to switch to USB channel
8. "+": Volume Up
9. "-": Volume Down
10. "<": Previous
    For BT and USB mode only: Skip to previous track.
11. ">": Next
    For BT and USB mode only: Skip to next track.
12. "": Play / Pause
    For BT and USB mode only.
    USB mode: Hold for 3 seconds to switch between single loop playback and list loop playback.
13. "MOVIE": MOVIE
    Press to switch to MOVIE mode.
14. "GAME": GAME
    Press to switch to GAME mode.
15. "MUSIC": MUSIC
    Press to switch to MUSIC mode.
16. "": BASSMAX
    Press to adjust bass level, the display will show: .
17. "": Mute / Recover the volume.

SOUNDBAR INSTALLATION

Assembly steps

1. Align the joints of the two parts.

2. Twist to connect.

3. Plug in the 4-pin Cable for Soundbar Connection.


Detached and stand on base

1. Set the soundbar on the base and align the joints.
2. Twist to connect with the base.
3. Plug in the 4-pin Cable for Soundbar Connection.

CONNECT TO SUBWOOFER

CONNECT TO TV VIA HDMI OUT eARC / ARC

Step 1:
Connect one end of the HDMI cable to the eARC / ARC port on the back of your TV.

Step 2:
Then connect the other end into the HDMI OUT(eARC) port of the soundbar.

Step 3:
Press "eARC" button on the remote control to select "eARC" input.

CONNECT TO OTHER DEVICE VIA HDMI IN

Step 1: Connect the HDMI Cable to the HDMI OUT (eARC) port on the Soundbar and the other end to the HDMI IN (eARC / ARC) port on the TV.
Step 2: Connect the HDMI cable to the HDMI OUT port on the other device (Such as DVD or game console) and the Other end to HDMI N port on the Soundbar.
Step 3: Press "" button on Soundbar or RemoteControl to switch to HDMI IN channel.

Note: Your TV HDMI needs to support eARC to transmit the Dolby Atmos audio format to your Soundbar.

Note:
Make sure your TV HDMI supports eARC, otherwise the Dolby Atmos audio signal cannot be transmitted.
Atmos: If you are watching movie in the Dolby Atmos format, please set the audio output on your TV to Pass Through:
TV Settings > Home > Settings > Sound > Digital Audio Output > Pass Through
DTS: If you are watching a movie in the DTS format, please set the audio output on your TV to PCM:
TV Settings > Home > Settings > Sound > Digital Audio Output > PCM

What's the difference between: HDMI IN, HDMI ARC, HDMI eARC?
HDMI IN is a standard HDMI input that allows you to connect devices to your TV or audio system. It supports audio and video signals, but it does not support audio return channel (ARC) or enhanced audio return channel (eARC) functionality.
HDMI ARC is a special HDMI port that supports two-way communication between your TV and audio system. This means that audio can be sent from your TV to your audio system, and audio system can send audio back to your TV.
HDMI eARC (Enhanced Audio Return Channel) is an updated version of HDMI ARC that supports higher quality audio formats such as Dolby Atmos and DTS:X.

Note: Please turn on the "CEC" function on your TV.
When eARC / ARC is connected, your TV remote control can control the soundbar and TV simultaneously:

1. Turn on / off
2. Adjust the volume

CONNECT TO TV VIA OPTICAL / AUX

OPTION 1: OPTICAL

1. Make sure the TV's port is OPTICAL OUT, connect both sides of the cable to OPTICAL, for both the TV and the soundbar.
2. Make sure the optical plug is inserted correctly as it shows in the picture. Do not insert the plug upside down and break the optical.

Note: If audio is coming from the internal TV speakers, mute or minimize the TV volume.

In Optical Mode: If there is no sound, try setting the TV audio output to PCM: TV Settings > Home > Settings > Sound > Digital Audio Output > PCM

OPTION 2: AUX

1. Connect the 3.5mm to RCA audio cable to connect to your TV's RCA AUDIO OUT port.
2. Make sure the color of the cables ends matches the color Of the TV ports.

Note: Please remember to unplug the AUX cable from TV and Soundbar when you want to switch other mode.

CONNECT TO BLUETOOTH

1. Press the "" button on the soundbar or press the "" button on the remote control to enter Bluetooth pairing mode.
2. Go to the Bluetooth setting on your phone, find and select "Apollo S60" to connect the soundbar.

Note: If it's already in the Bluetooth mode and connected, press and hold "" button for 3 seconds to disconnect current device and choose to connect to a new device manually on your mobile phone / PC / TV.

PLACEMENT OPTIONS

Note: The soundbar should be placed at or near ear level.

WALL MOUNT INSTALLATION

SPECIFICATIONS

SAFETY INSTRUCTIONS

Please read this user manual carefully and save it for future reference.

Do not make unauthorized alterations to the product, doing so may compromise safety, regulatory compliance, system performance, and may void the warranty

• Avoid dropping.
• Do not disassemble.
• Do not submerge in water.
• Avoid extreme temperatures.
• Do not use the device outdoors during thunderstorms.
• Use original or certified cables.
• Do not place dangerous items on top of this device (e.g. liquid filled objects, lit candles).
• Clean with a dry, soft lint-free cloth. Do not use any corrosive cleaner or oil.
• To avoid hearing damage, do not listen for extended periods at high volume.
• Do not expose the batteries to extreme heat sources such as direct sunlight or open flames.
• The ideal operating temperature for this product and its accessories is between 41ºF/5ºC and 95ºF/35ºC
• The adapter should be installed near the device and should be easily accessible.
• Do not use this product in environments of extreme heat or cold. Never expose this device to strong sunshine or wet environments.
