Summary of Contents for ULTIMEA Apollo S80

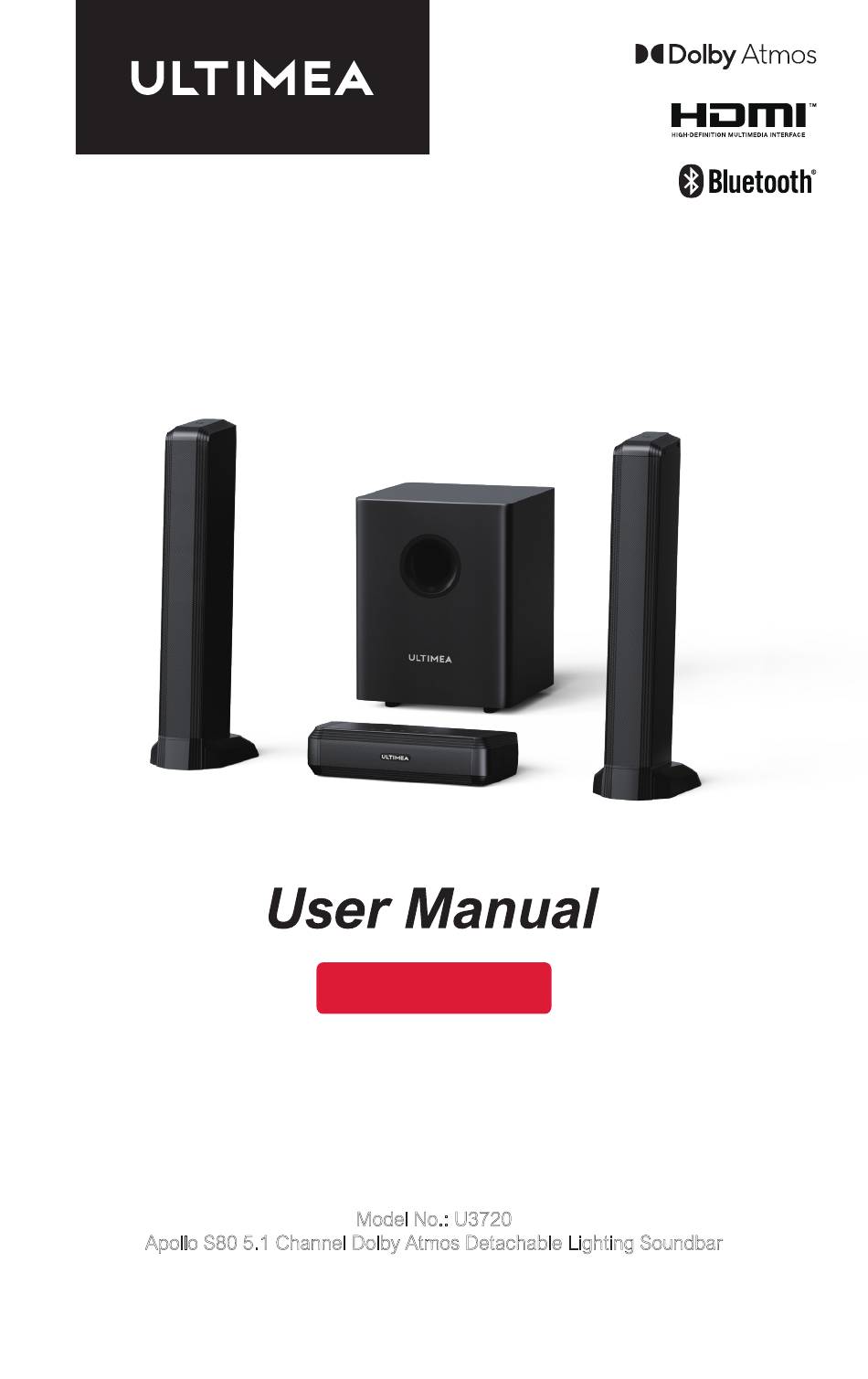

- Page 1 Apollo S80 EN: User Manual FR: Manuel de l'Utilisateur DE: Benutzerhandbuch IT: Manuale d'uso JP: ユーザーマニュアル ES: Manual del usuario Model No.: U3720 Apollo S80 5.1 Channel Dolby Atmos Detachable Lighting Soundbar...
-
Page 2: Accessories List
Press to switch to BT channel and enter pairing mode. Hold for 3 seconds to disconnect current device and choose to connect to a new device manually on your mobile phone / PC / TV (BT ID: Apollo S80). “ ”: Volume Down “... -
Page 3: Remote Control
Remote Control “ ” : POWER BUTTON Press to power on / off. ” : SOURCE “ Press to switch source: eARC-OPT-BT-AUX-USB “ ” : eARC Press to switch to HDMI eARC source . “ ”: OPT Press to switch to OPTICAL source . “... -
Page 4: Horizontal Placement
3 SOUNDBAR INSTALLATION Detached and stand on base: Set the soundbar on the base and align the joints. Twist to connect with the base. Plug in the 7-pin Cable (The longer two) for Soundbar Connection. Horizontal placement Remove the covers on both sides of the host. Twist to connect. -
Page 5: Connect To Subwoofer
5 CONNECT TO SUBWOOFER Use the subwoofer connection cable, connecting one end to the "SUB OUT" port on the Soundbar and the other end to the port on the back of the subwoofer. 6 CONNECT TO TV VIA HDMI OUT eARC / ARC eARC / ARC eARC HDMI... -
Page 6: Connect To Bluetooth
” button on the remote control to enter Bluetooth pairing mode. Go to the Bluetooth setting on your phone, find and select “Apollo S80” to connect the soundbar. Note: If it’s already in the Bluetooth mode and connected, press and hold “... -
Page 7: Wall Mount Installation
Horizontal placement Note: For a better listening experience, lay out the entire system as shown in the picture above. 10 WALL MOUNT INSTALLATION Overview 41mm/1.6” 30mm/1.18” 897mm/35.3” 6mm/0.23” 11 SPECIFICATIONS Model Number U3720 AC 100 - 240V, ~50/60Hz Power Supply Drivers 2”x 5 (Soundbar) + 5.25”... -
Page 8: Safety Instructions
SAFETY INSTRUCTIONS Please read this user manual carefully and save it for future reference. Do not make unauthorized alterations to the product, doing so may compromise safety, regulatory compliance, system performance, and may void the warranty. · Avoid dropping. · Do not disassemble. ·... - Page 9 ISED WARNINGS This device contains licence-exempt transmitter (s) / receiver (s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS (s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L'émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d'Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence.
-
Page 10: Declaration Of Conformity
The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, HDMl trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other. Apollo S80 5.1 Channel Dolby Atmos Detachable Lighting Soundbar Ultimea Technology (Shenzhen) Limited Model No.: U3720...
