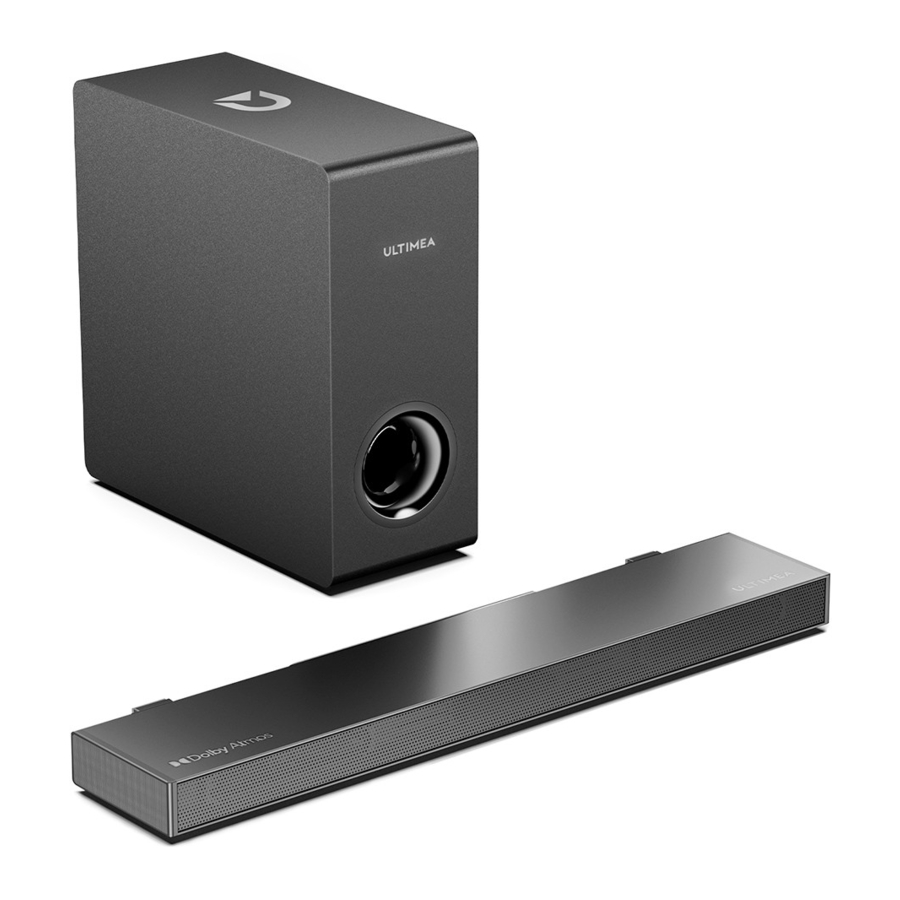

Ultimea Nova S50 U2120 - Soundbar Manual

ACCESSORIES LIST

PRODUCT CONTROLS

Control Panel

1. " ": Power Button
   Press to power on / Hold for 3 seconds to power off.
2. " ": Input Mode
   Press to switch channels: eARC-OPT-BT-AUX-USB
3. " ": BT
   Press to switch to Bluetooth channel and enter pairing mode. Hold for 3 seconds to disconnect the current device and connect to a new device manually on your mobile phone / PC / TV (BT D: Nova S50)
4. " ": Volume Down
5. " ": Volume Up

Remote Control

1. " ": Power Button
   Press to power on / Hold for 3 seconds to power off.
2. " ": eARC
   Press to switch to HDMI eARC channel.
3. " ": BT
   Press to switch to Bluetooth channel and enter pairing mode. Hold for 3 seconds to disconnect the current device and connect to a new device manually on your mobile phone / PC / TV (BT ID: Nova S50).
4. " ": OPT
   Press to switch to OPTICAL channel
5. " ": AUX
   Press to switch to AUX channel.
6. " ": USB
   Press to to switch to USB channel
7. " ": LED
   Press to turn on the LED, press again to turn off.
8. "+": Volume Up
9. "-" Volume Down
10. " < ": Previous
    For BT and USB mode only: Skip to previous track.
11. " > ": Next
    For BT and USB mode only: Skip to next track.
12. " ": Play / Pause
    For BT and USB mode only.
    USB mode: Hold for 3 seconds to switch between single loop playback and list loop playback.
13. "MOVIE": MOVIE
    Press to switch to MOVIE mode.
14. "GAME": GAME
    Press to switch to GAME mode.
15. "MUSIC": MUSIC
    Press to switch to MUSIC mode.
16. " ": BASSMX
    Press to adjust bass level, the display will show: " ", " ", " ".
17. " ": Mute/Recover the volume

CONNECT TO SUBWOOFER

CONNECT TO TV VIA HDMI eARC/ARC

1. Connect one end of the HDMI cable to the eARC/ARC port on the back of your TV.

2. Then connect the other end to the HDMI(eARC) port of the soundbar.
3. Press "eARC" button on the remote control to select "HDMI(eARC)" input.


Note:
Make sure your TV HDMI supports eARC, otherwise the Dolby Atmos audio signal cannot be transmitted.
Atmos: If you are watching a movie in the Dolby Atmos format, please set the audio output on your TV to Pass Through:
TV Settings > Home > Settings > Sound > Digital Audio Output > Pass Through
DTS: If you are watching a movie in the DTS format, please set the audio output on your TV to PCM:
TV Settings > Home > Settings > Sound > Digital Audio Output > PCM

What's the difference between: HDMI IN, HDMI ARC, HDMI eARC?
HDMI IN is a standard HDMI input that allows you to connect devices to your TV or audio system. It supports audio and video signals, but it does not support audio return channel (ARC) or enhanced audio return channel (eARC) functionality.
HDMI ARC is a special HDMI port that supports two-way communication between your TV and audio system. This means that audio can be sent from your TV to your audio system, and audio system can send audio back to your TV.
HDMI eARC (Enhanced Audio Return Channel) is an updated version of HDMI ARC that supports higher quality audio formats such as Dolby Atmos and DTS:X.

Note: Please turn on the "CEC" function on your TV.
When eARC / ARC is connected, your TV remote control can control the soundbar and TV simultaneously:

1. Turn on/off
2. Adjust the volume

CONNECT TO TV VIA OPTICAL / AUX

OPTION 1: OPTICAL

1. Make sure the TV's port is OPTICAL OUT, connect both sides of the cable to OPTICAL, for both the TV and the soundbar.
2. Make sure the optical plug is inserted correctly as it shows in the picture. Do not insert the plug upside down and break the optical

Note: If audio is playing from the internal TV speakers, mute or minimize the TV volume.

OPTION 2: AUX

1. Connect the 3.5mm to 3.5mm Audio Cable to your TV's AUDIO OUT port
2. Not support AUDIO IN port on TV

Note: Please remember to unplug the AUX cable from TV and Soundbar when you want to switch to other mode.

In Optical Mode: If there is no sound, try setting the TV audio output to PCM: TV Settings > Home > Settings > Sound > Digital Audio Output > PCM

CONNECT TO BLUETOOTH

1. Press the " " button on the soundbar or remote control to enter Bluetooth pairing mode.

2. Open your phone's Bluetooth settings, find and select "Nova S50" to connect the soundbar.


Note: If it's already in the Bluetooth mode and connected, press and hold " " button for 3 seconds to disconnect the current device and connect to new device manually on your mobile phone / PC / TV

PLACEMENT OPTIONS

Note: The soundbar should be placed at or near ear level.

WALL MOUNT INSTALLATION

Note:
Please use the HDMI Adaptor for easy plugging and unplugging of the HDMI Cable.

SPECIFICATIONS

SAFETY INSTRUCTIONS

Please read this user manual carefully and save it for future reference.
Do not make unauthorized alterations to the product, doing so may compromise safety, regulatory compliance, system performance, and may void the warranty

• Avoid dropping
• Do not disassemble.
• Do not submerge in water
• Avoid extreme temperatures.
• Do not use the device outdoors during thunderstorms.
• Use original or certified cables.
• Do not place dangerous items on top of this device (e.g. liquid filled objects, lit cand es)
• Clean with a dry, soft lint-free cloth. Do not use any corrosive cleaner or oil.
• To avoid hearing damage, do not listen for extended periods at high volume.
• Do not expose the batteries to extreme heat sources such as direct sunlight or open flames.
• The ideal operating temperature for this product and its accessoriress is between 41°F/5°C and 95°F/35°C.
• The adapter should be installed near the device and should be easily accessible.
• Do not use this product in environments of extreme heat or cold. Never expose this device to strong sunshine or wet environments

Manufacturer: Dynanic (Shenzhen) Technology Limited
Address: 20th Floor, Building 4, Tianan Cloud Park, Bantian St.,
Longgang District, Shenzhen, China 518000

If you need our support, kindly reach out to our service team. We are always glad to help.
+1 888-598-8875 (US)
Mon-Fri 9am-5pm (PST)
+49 89-628-25828 (EU)
Mon-Fri 9am-5pm (CET)
support@ultimea corn
support@ultimea de

@uItimea_OfficiaI

Prefer video tutorial?
Setup guidance video, USER MANUAL or Trouble Shooting on ULTIMEA website.

support.ultimea.com
support.ultimea.de
