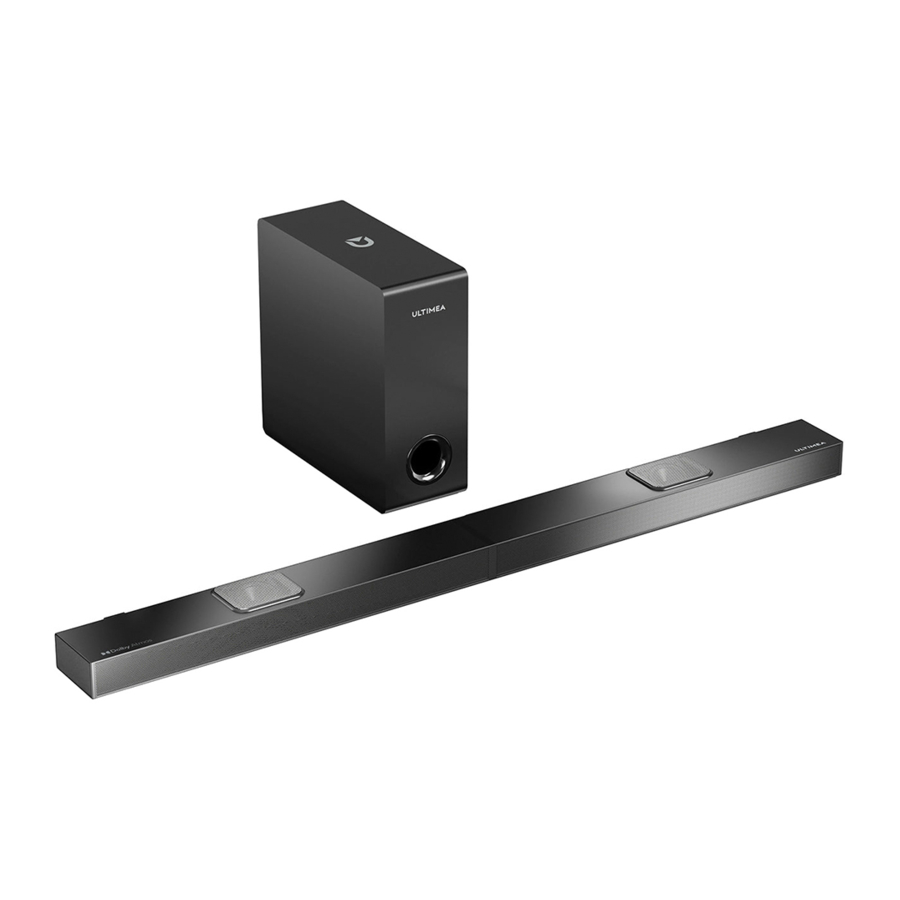

Ultimea Nova S70 U3920 - Soundbar Manual

ACCESSORIES LIST

SOUNDBAR CONTROLS

Control Panel

1. "": Power Button
   Press to power on / Hold for 3 seconds to power off.
2. "": Input Mode
   Press to switch channels: eARC-HD IN (HDMI IN)OPT (OPTICAL)-BT-AUX-USB.
3. "": BT
   Press to switch to Bluetooth channel and enter pairing mode. Hold for 3 seconds to disconnect the current device and connect to a new device manually on your mobile phone / PC / TV (BT ID: Nova S70).
4. "": Volume Down
5. "": Volume Up

Remote Control

1. "": Power Button
   Press to power on / Hold for 3 seconds to power off.
2. " ": eARC
   Press to switch to HDMI eARC channel.
3. " ": HD IN
   Press to switch to HDMI IN channel.
4. "":OPT
   Press to switch to OPTICAL channel.
5. "": BT
   Press to switch to Bluetooth channel and enter pairing mode. Hold for 3 seconds to disconnect current device and connect to a new device manually on your mobile phone / PC / TV (BT ID: Nova S70).
6. "": EQ
   Press to switch among Movie, Dialogue, Music mode, the display will show: .
7. "": INPUT
   Press to switch channels: eARC-HD IN (HDMI IN)-OPT (OPTICAL)-BT-AUX-USB.
8. "+": Volume Up
9. "": Volume Down
10. "": Previous
    For BT and USB mode only: Skip to previous track.
11. "": Next
    For BT and USB mode only: Skip to next track.
12. "": Play / Pause
    For BT and USB mode only. USB mode: Hold for 3 seconds to switch between single loop playback and list loop playback.
13. "": Dolby Atmos
    Press to adjust upward-firing sound level, the display will show:
14. " ": BASSMAX
    Press to adjust bass level, the display will show:
15. "": Mute / Recover the volume.

SOUNDBAR INSTALLATION

Assembly Steps

Step 1
Set the two parts of the Soundbar on the same level and align the connection joints. Connect the two parts by pushing parallelly to combine as one piece.

Step 2
Plug in 6pin Cable. AUX

CONNECT TO SUBWOOFER

CONNECT TO TV VIA HDMI OUT eARC / ARC

1. Step 1: Connect one end of the HDMI cable to the eARC / ARC port on the back of your TV.
2. Step 2: Then connect the other end into the HDMI OUT (eARC) port of the soundbar.

   Step 1&2
3. Step 3: Press "eARC" button on the remote control to select "HDMI OUT (eARC)" input.


Note:

Make sure your TV HDMI supports eARC, otherwise the Dolby Atmos audio signal cannot be transmitted.

Atmos: If you are watching a movie in the Dolby Atmos format, please set the audio output on your TV to Pass Through: TV Settings > Home > Settings > Sound > Digital Audio Output > Pass Through

DTS: If you are watching a movie in the DTS format, please set the audio output on your TV to PCM:TV Settings > Home > Settings > Sound > Digital Audio Output > PCM

What's the difference between: HDMI IN, HDMI ARC, HDMI eARC?

HDMI IN is a standard HDMI input that allows you to connect devices to your TV or audio system. It supports audio and video signals, but it does not support audio return channel (ARC) or enhanced audio return channel (eARC) functionality.

HDMI ARC is a special HDMI port that supports two-way communication between your TV and audio system. This means that audio can be sent from your TV to your audio system, and audio system can send audio back to your TV.

HDMI eARC (Enhanced Audio Return Channel) is an updated version of HDMI ARC that supports higher quality audio formats such as Dolby Atmos and DTS:X.

Note: Please turn on the "CEC" function on your TV.

When eARC / ARC is connected, your TV remote control can control the soundbar and TV simultaneously:
Turn on / off
Adjust the volume

CONNECT TO OTHER DEVICE VIA HDMI IN

1. Step 1: Connect the HDMI Cable to the HDMI OUT (eARC) port on the Soundbar and the other end to the eARC / ARC port on the TV.
2. Step 2: Connect the HDMI cable to the HDMI OUT port on the other device (Such as DVD or game consol) and the other end to HDMI IN port on the Soundbar.

3. Step 3: Press " " button on Soundbar or Remote Control to switch to HDMI IN channel.


Note: Your TV HDMI needs to support eARC to transmit the Dolby Atmos audio format to your Soundbar.

CONNECT TO TV VIA OPTICAL / AUX

OPTION 1: OPTICAL

1. Make sure the cable is connected to OPTICAL OUT porton your TV, and the other end to OPTICAL port on the Soundbar.
2. Make sure the optical plug is inserted correctly as itshows in the picture. Do not insert the plug upside down and break the optical.

Note: lf audio is coming from the internal TV speakers, mute or minimize the TV volume.

OPTION 2: AUX

1. Connect the 3.5mm to RCA audio cable to connectto your TV's RCA AUDIO OUT port.
2. Make sure the color of the cables ends matches the color of the TV ports.

Note: Please remember to unplug the AUX cable from TV and Soundbar when you want to switch other mode.

In Optical Mode: If there is no sound, try setting the TV audio output to PCM: TV Settings > Home > Settings > Sound > Digital Audio Output > PCM

CONNECT TO BLUETOOTH

1. Press the " " button on the soundbar or remote control to enter Bluetooth pairing mode.
2. Open your phone's Bluetooth settings, find and select "Nova S70" to connect the soundbar.

Note: If it's already in the Bluetooth mode and connected, press and hold " " button for 3 seconds to disconnect current device and connect to new device manually on your mobile phone / PC / TV.

PLACEMENT OPTIONS

Note: The soundbar should be placed at or near ear level.

WALL MOUNT INSTALLATION

SPECIFICATIONS

Support

If you need our support, kindly reach out to our service team.
We are always glad to help.

+1 888-598-8875 (US)
Mon-Fri 9am-5pm (PST)

+49 89-628-25828 (EU)
Mon-Fri 9am-5pm (CET)

support@ultimea.com
support.ultimea.com

@ultimea_official

SAFETY INSTRUCTIONS

Please read this user manual carefully and save it for future reference.

Do not make unauthorized alterations to the product, doing so may compromise safety, regulatory compliance, system performance, and may void the warranty.

• Avoid dropping.
• Do not disassemble.
• Do not submerge in water.
• Avoid extreme temperatures.
• Do not use the device outdoors during thunderstorms.
• Use original or certified cables.
• Do not place dangerous items on top of this device (e.g liquid filled objects, lit candles).
• Clean with a dry, soft lint-free cloth. Do not use any corrosive cleaner or oil.
• To avoid hearing damage, do not listen for extended periods at high volume.
• Do not expose the batteries to extreme heat sources suchas direct sunlight or open flames.
• The ideal operating temperature for this product and its accessories is between 41°F/5°C and 95°F/35°C.
• The adapter should be installed near the device andshould be easily accessible.
• Do not use this product in environments of extreme heat or cold. Never expose this device to strong sunshine or wet environments.
