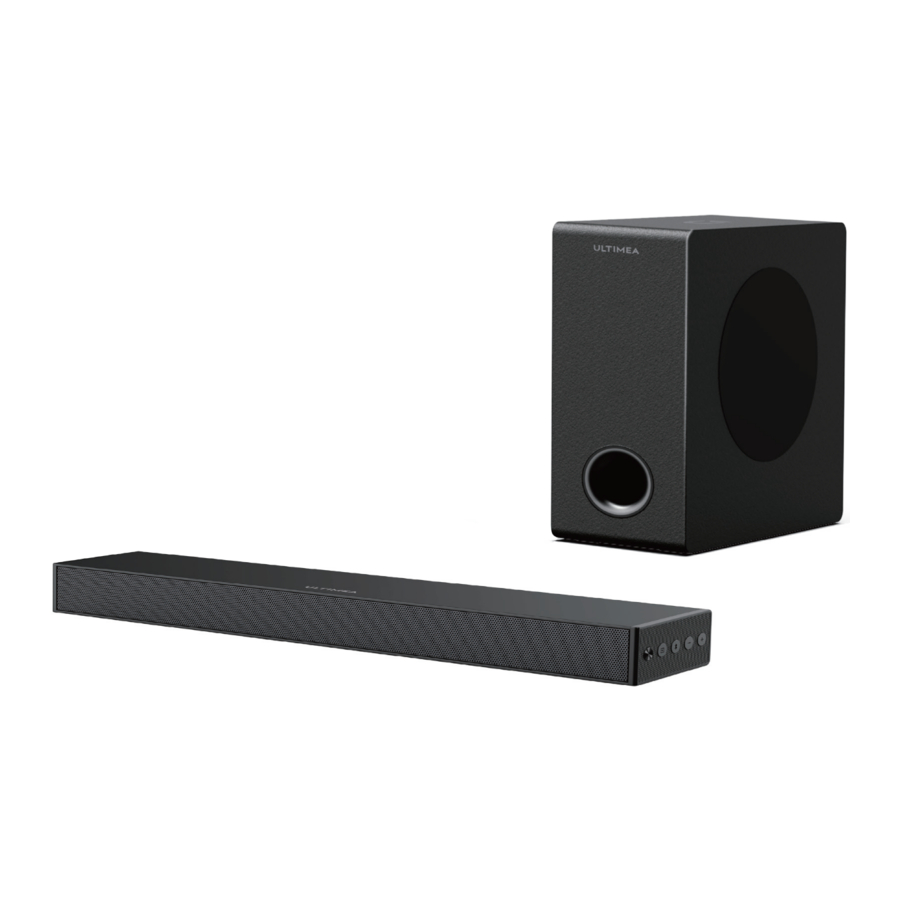

Ultimea Nova S40 U2100 - Soundbar Manual

ACCESSORIES LIST

SOUNDBAR CONTROLS

Control Panel

: Power Button
Press to power on / Hold for 3 seconds to power off.
: Input Mode
Press to switch channels: ARC-OPT(OPTICAL)-BT-AUX-USB.
: BT
Press to switch to Bluetooth channel and enter pairing mode. Hold for 3 seconds to disconnect the current device and connect to a new device manually on your mobile phone / PC / TV (BT D: Nova S40).
: Volume Down
: Volume Up

Remote Control

: Power Button
Press to power on / Hold for 3 seconds to power off.
: ARC
Press to switch to ARC channel
: BT
Press to switch to Bluetooth channel and enter pairing mode. Hold for 3 seconds to disconnect the current device and connect to a new device manually on your mobile phone / pc / TV (BT D: Nova S40).
: OPT
Press to switch to OPTICAL channel
: AUX
Press to switch to AUX channel
: LED
Press to turn on the LED, press again to turn off.
: USB
Press to switch to USB channel
: Volume Up
: Volume Down
: Previous
For BT and USB mode only: Skip to previous track.
: Next
For BT and USB mode only: Skip to next track.
: Play / Pause
For BT and USB mode only. USB mode: Hold for 3 seconds to switch between single loop playback and list loop playback.
"MOVIE": MOVIE
Press to switch to MOVIE mode, the display will show: "l"
"GAME": GAME
Press to switch to GAME mode, the display wil show: ""
"MUSIC": MUSIC
Press to switch to MUSIC mode, the display will show: ""
: BASSMX ^TM
Press to adjust bass level, the display will show:
: Mute / Recover the volume.

CONNECT TO SUBWOOFER

CONNECT TO THE TV VIA ARC

Connect one end of the HDMI cable to the ARC/eARC port on the back of your TV.
Then connect the other end into the HDM ARC port of the soundbar
Press "ARC" button on the remote control to select "ARC" input.

If there is no sound, try setting the TV audio output to PCM:
TV Settings > Home > Settings > Sound > Digital Audio Output > PCM
Note: Please turn on the "CEC" function on your TV.
When ARC is connected, your TV remote control can control the soundbar and TV simultaneously:

Turn on/off
Adjust the volume

CONNECT TO THE TV VIA OPTICAL / AUX

OPTION 1: OPTICAL
CONNECT TO THE TV VIA OPTICAL

Make sure the TV's port is OPTICAL OUT, connect both sides Of the cable to OPTICAL, for both the TV and the soundbar
Make sure the optical plug is inserted correctly, as it shows in the picture. Do not insert the plug upside down and break the optical.
Note: If audio is playing from the internal TV speakers, mute or minimize the TV volume.

OPTION 2: AUX
CONNECT TO THE TV VIA AUX

Connect the 3 5mm to 3 5mm Audio Cable to your TVs AUDIO OUT port.
Not support AUDIO IN port on TV
Note: Please remember to unplug the AUX cable from TV and Soundbar when you want to switch to other mode.

In Optical Mode: If there is no sound, try setting the TV audio output to PCM: TV Settings > Home > Settings > Sound > Digital Audio Output > PCM

CONNECT TO BLUETOOTH

Press the " " button on the sound bar or remote control to enter Bluetooth pairing mode.
Open your phone's Bluetooth settings, find and select "Nova S40" to connect the soundbar.
Note: If it's already in the Bluetooth mode and connected, press and hold " " button for 3 seconds to disconnect the current device and connect to a new device manually on your mobile phone / PC / TV

PLACEMENT OPTIONS

PLACEMENT OPTIONS
Note: The soundbar should be placed at or near ear level.

WALL MOUNT INSTALLATION

SPECIFICATIONS

Model Number	U2100
Power Supply	AC 100-240V, -50/60Hz
Soundbar Drivers	(1 2" x 3 8") x 2 (Soundbar) + 5.25" (Subwoofer)
Frequency Response	45Hz - 18kHz
Standby Power	<05W
Operating Temperature	0ºC - 45ºC / 32ºF - 113ºF
Bluetooth Vision	5.3
Dimensions and Weight
Soundbar	400(W) x 38(H) x 76(D) mm 15.7" x 1.5" x 30"
Subwoofer	270(W) x 115(H) x 270(D) mm 105" x45"x10 6"
Packaging	332(W) x 432(H) x 190(D) mm 13.1" x 17" x 7 5"
Net Weight	3.3kg / 7.281bs
Gross Weight	4.2kg /9.261bs

SAFETY INSTRUCTIONS

Please read this user manual carefully and save it for future reference.
Do not make unauthorized alterations to the product, doing so may compromise safety, regulatory compliance, system performance, and may void the warranty

Avoid dropping
Do not disassemble.
Do not submerge in water
Avoid extreme temperatures.
Do not use the device outdoors during thunderstorms.
Use original or certified cables.
Do not place dangerous items on top of this device (e.g.liquid filled objects, lit candles).
Clean with a dry, soft lint-free cloth. Do not use any corrosive cleaner or oil.
To avoid hearing damage, do not listen for extended periods at high volume.
Do not expose the batteries to extreme heat sources such as direct sunlight or open flames.
The ideal operating temperature for this product and its accessories is between 41ºF/5ºC and 95ºF/35ºC
The adapter should be installed near the device and should be easily accessible.
Do not use this product in environments of extreme heat or cold. Never expose this device to strong sunshine or wet environments
