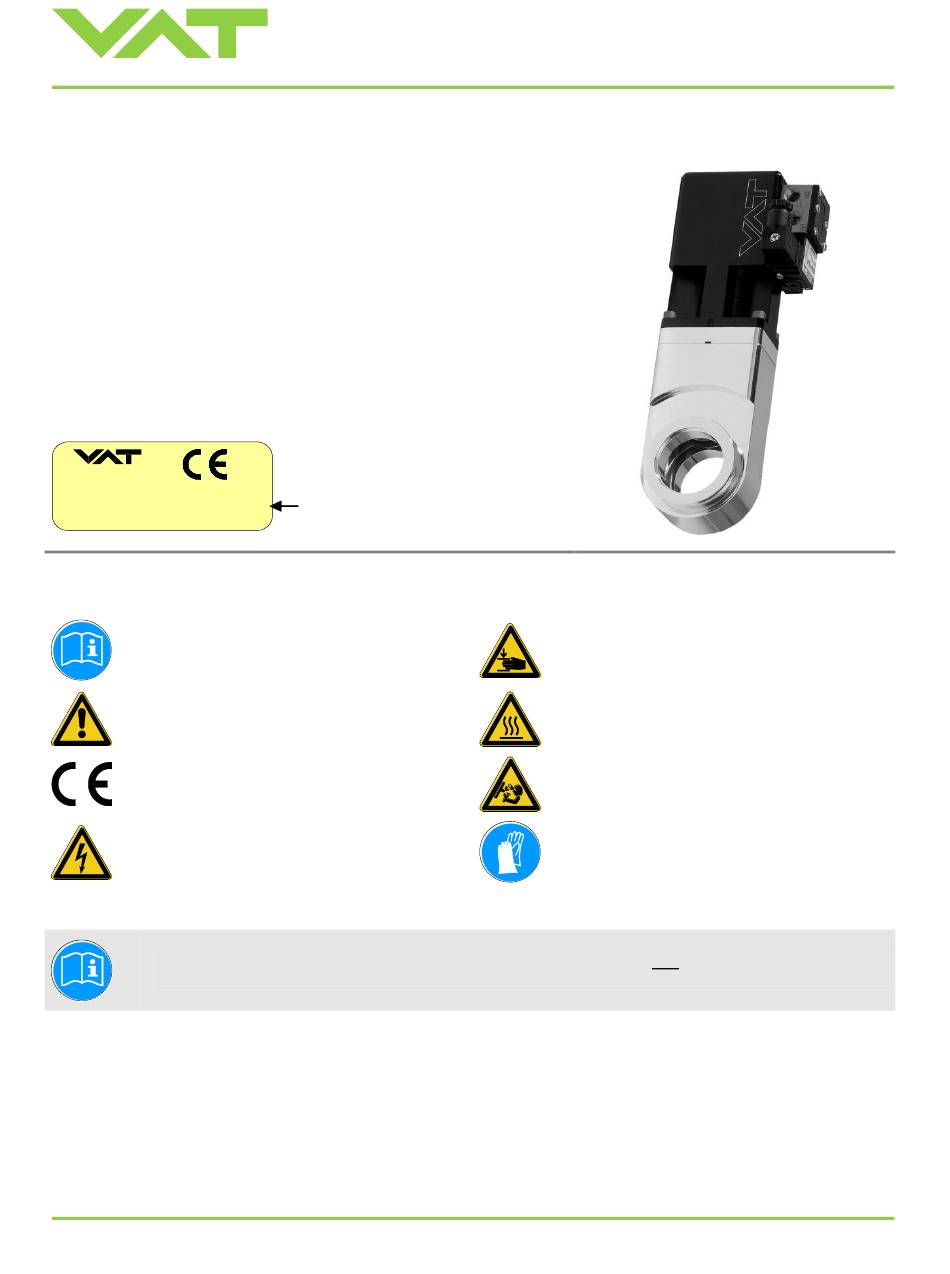

VAT 012 Series Installation, Operating,  & Maintenance Instructions

VAT 012 Series Installation, Operating, & Maintenance Instructions

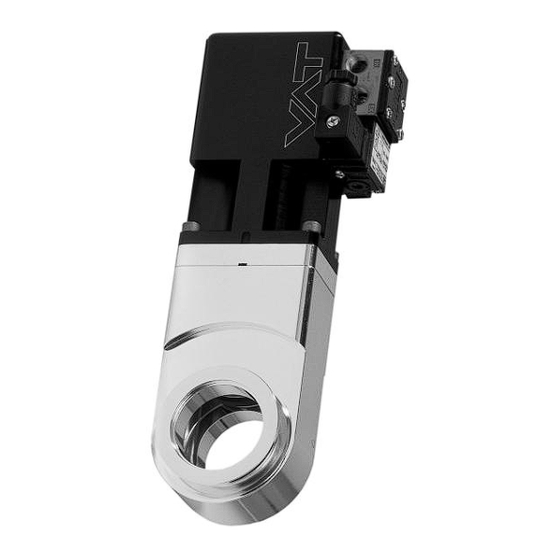

Mini gate valve with pneumatic actuator, double acting

Advertisement

Quick Links

Mini gate valve
With pneumatic actuator, double acting
This manual is valid for the valve ordering number(s):
01224 - .A -....
01228 - .A -....
01232 - .A -....
01234 - .A -....
The fabrication number is indicated on each product as per the label
below (or similar):
made in Switzerland
Fabrication No.:
patented
01 2 . . – . . . . – . . . . / . . . .
A – . . . . . .
Explanation of symbols:
Read declaration carefully before you start any other
action!
Attention!
Product is in conformity with EC guidelines,
if applicable!
Disconnect electrical power and compressed air lines.
Do not touch parts under voltage!
Read these «Installation, Operating & Maintenance Instructions» and the enclosed «General
Safety Instructions» carefully before you start any other action!
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com
Installation, Operating & Maintenance Instructions
Series 012, DN 16-50 (I.D.
. .
Fabrication number
5
/
" - 2")
8
Keep body parts and objects away from the valve
opening!
Hot surfaces; do not touch!
Loaded springs and/or air cushions are potential
hazards!
Wear gloves!
237943EE
2012-08-14
1/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 012 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VAT 012 Series

  • Page 1 Do not touch parts under voltage! Read these «Installation, Operating & Maintenance Instructions» and the enclosed «General Safety Instructions» carefully before you start any other action! VAT Vakuumventile AG, CH-9469 Haag, Switzerland 237943EE 1/11 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com...
  • Page 2 VAT products. The VAT firmware contains a limited, time unlimited user license. The VAT firmware may not be used for purposes other than those intended nor is it permitted to make copies of the VAT firmware. In particular, it is strictly forbidden to give copies of the VAT firmware to other people.
  • Page 3: Table Of Contents

    5.1 Replacement of Gate ............................8 6 Drawing ..................................9 7 Spare parts ................................9 8 Warranty ................................. 11 VAT Vakuumventile AG, CH-9469 Haag, Switzerland 237943EE 3/11 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com...
  • Page 4: Use Of Product

    Make sure, that the delivered components are according the order. Visually check the quality of the components. If something of the delivery is not as expected please immediately contact VAT. Notice: Please do not throw away the original packaging. Packaging my useful in a case of service to return the components to VAT.
  • Page 5: Admissible Forces

    1½ If a combination of forces («FA», «M» and «TM» and ) occurs, the values mentioned above are invalid. Please contact VAT for more information. Attention: The stated maximum torsional moment «TM» is only valid for the valve equipped with the standard flange to flange dimension (see catalogue 2008...
  • Page 6: Operation

    Standard solenoid: valve closes Solenoid for impulse actuation (option): valve position does not change, but a started movement will be completed Standard solenoid with adapter plate for «normally open»: Valve opens VAT Vakuumventile AG, CH-9469 Haag, Switzerland 237943EE 6/11 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com...
  • Page 7: Trouble Shooting

    Contamination from the process may influence the function and requires more frequent maintenance. Before carrying out any maintenance or repairs, please contact VAT. It has to be individually decided whether the maintenance/repair can be performed by the customer or has to be carried out by VAT. The fabrication number on the valve made in Switzerland Fabrication No.:...
  • Page 8: Replacement Of Gate

    Attention: Tighten screws (61) in crosswise order! 1 Nm / 0.74 lbf . ft Torque: DN 16/25 VAT Vakuumventile AG, CH-9469 Haag, Switzerland 237943EE 8/11 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com 2012-08-14...
  • Page 9: Drawing

    01228-BA . . 01232-BA . . 01234-BA . . Complete seal kit ISO-KF Quick 96191-R1 96190-R1 96189-R1 96188-R1 VAT Vakuumventile AG, CH-9469 Haag, Switzerland 237943EE 9/11 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com 2012-08-14...
  • Page 10 Position indicator: open or closed Item Description Qty. Part No. Position indicator 226699 42/3 Plug including crimping pins 227450 VAT Vakuumventile AG, CH-9469 Haag, Switzerland 237943EE 10/11 Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com 2012-08-14...
  • Page 11: Warranty
